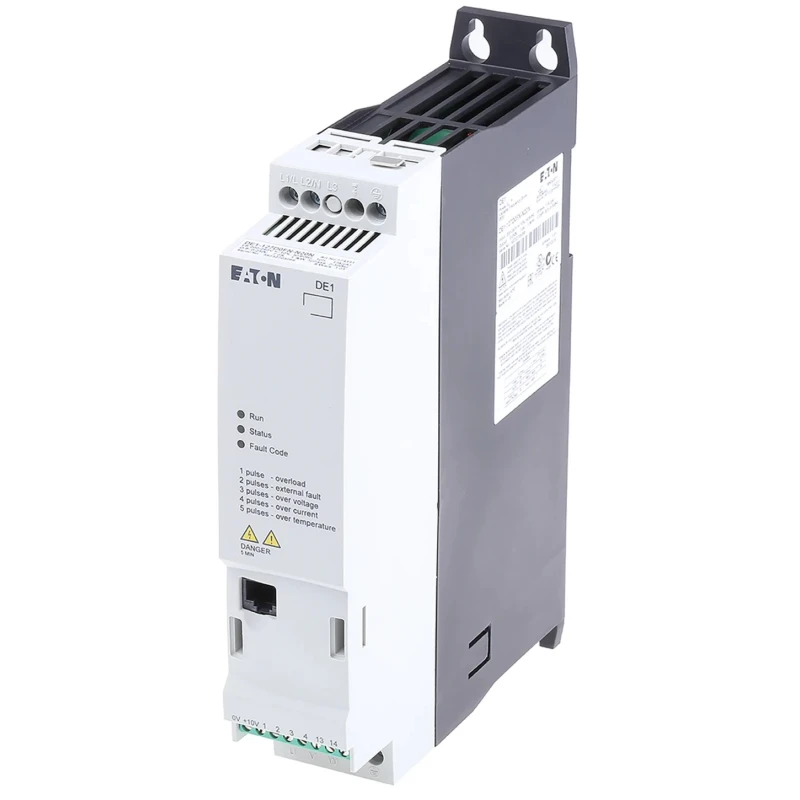

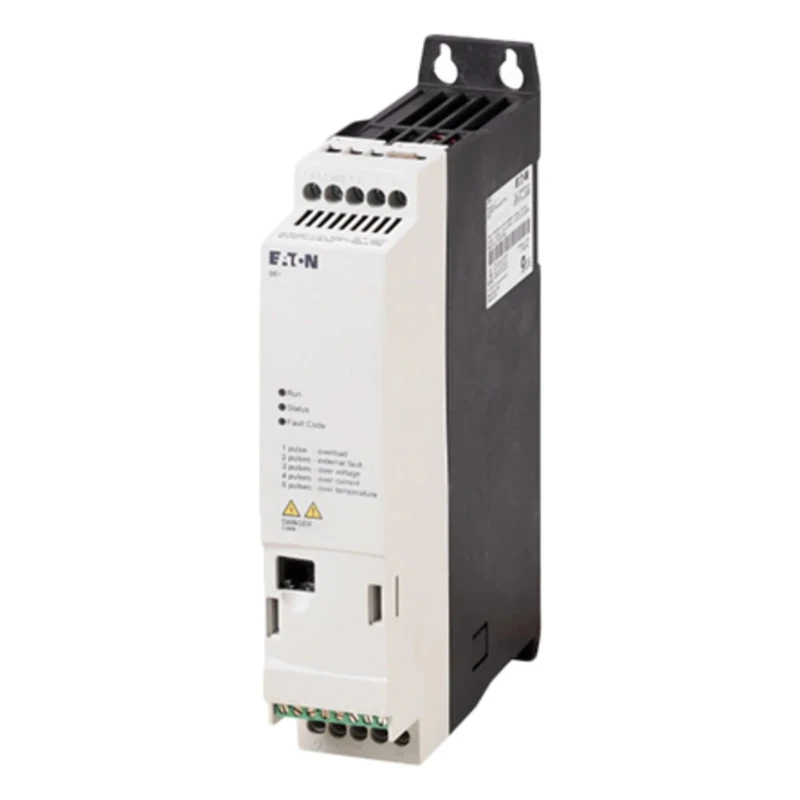

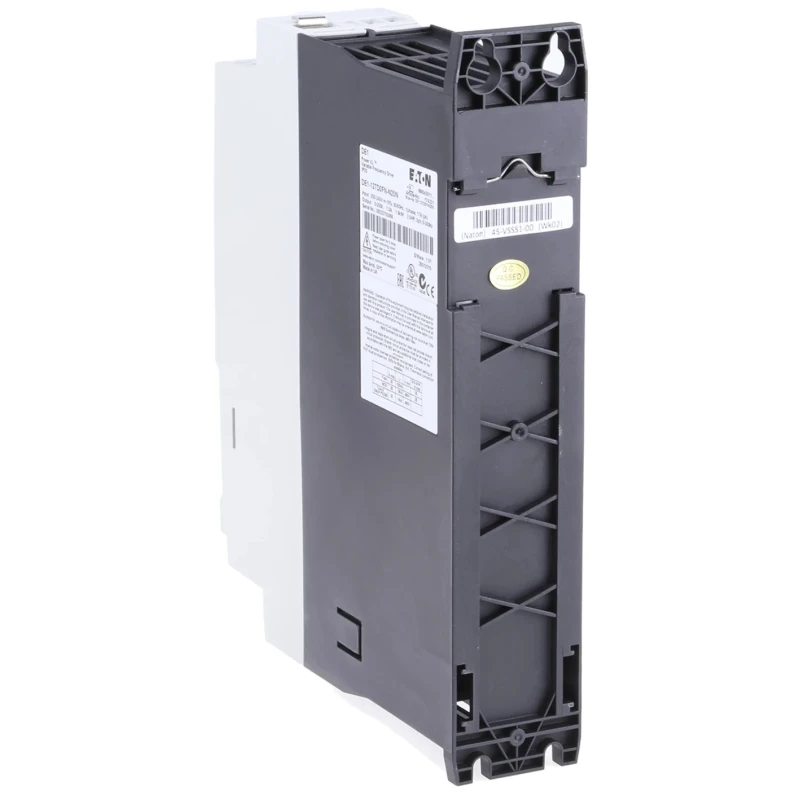

Eaton Variable Speed Starter PowerXL DE1 Series, 1 Phase, 230V AC, 1.5 kW, 7A, IP20, Frame Mount 174331 DE1-127D0FN-N20N

Free Delivery in India | Lowest Global Shipping Charges

Eaton Variable Speed Starter PowerXL DE1 Series, 1 Phase, 230V AC, 1.5 kW, 7A, IP20, Frame Mount 174331 DE1-127D0FN-N20N

Name: Eaton Variable Speed Starter PowerXL DE1 Series, 1 Phase, 230V AC, 1.5 kW, 7A, IP20, Frame Mount 174331 DE1-127D0FN-N20N
Brand: Eaton
SKU: 377517
Price: 453.21 USD
Availability: InStock



Category Motor Starters Brand Eaton Condition New

Specifications

Country of Origin	United Kingdom
Brand	Eaton
Model	174331 DE1-127D0FN-N20N
IP Rating	IP20
Drive Type	Variable Speed
Mount Type	Frame
Overall Length	45mm
Series	PowerXL DE1
Overall Width	45mm
Power Rating	1.5kW
Maximum Operating Temperature	60°C
Number of Phases	1
Maximum Output Current	7A
Standards/Approvals	cUL, UL, RoHS, RCM, CE
Overall Depth	231mm
Minimum Supply Voltage	230V ac
Better World Claim	Saves Energy
Compatible Motor Type	Asynchronous Motor

Key Features

Designed for reliable operation with a maximum output current of 7 amps.
Equipped with IP20 protection ensuring safety from solid objects.
Compact frame mount with dimensions of 45mm width, 45mm length, and 231mm depth.
Operates efficiently up to a maximum temperature of 60 degrees Celsius.
Complies with cUL, UL, RoHS, RCM, and CE standards.
Engineered for energy savings as part of Eaton's Better World product line.
Compatible specifically with asynchronous motors in industrial automation setups.

Product Description

Eaton 174331 DE1-127D0FN-N20N Variable Speed Starter, part of the PowerXL DE1 Series, is a state-of-the-art device engineered to deliver precise and efficient control of single-phase AC asynchronous motors with a power rating of 1.5 kW and a supply voltage of 230V AC.

This variable speed starter supports a maximum output current of 7 amps and incorporates IP20 rated protection, suitable for industrial environments needing protection from solid objects and safe electrical operation. The product is framemounted, featuring compact dimensions (45mm width, 45mm length, 231mm depth) and is rated for operation up to 60°C, making it suitable for varied installation conditions.

Designed for energy efficiency as part of Eaton's Better World initiative, this starter helps reduce energy consumption while enhancing motor performance. The device complies with stringent safety and environmental standards, including cUL, UL, RoHS, RCM, and CE, reflecting its quality and reliability.

Its application ranges across industrial automation, manufacturing, HVAC systems, and other sectors requiring controlled motor speed and torque adjustment. The intuitive setup allows for quick programming, and once configured, the module can be easily removed and redeployed, aiding in scalable operations.

Reliable single-phase variable speed starter with 1.5 kW power handling. Compact and durable frame mount design suited for industrial use. Protection rating IP20 ensures device safety and operational reliability. Supports asynchronous motors with efficient variable speed drive.

Certified for safety and environmental compliance across multiple international standards. Optimized for energy savings under the Better World program. Engineered in the United Kingdom, ensuring high manufacturing standards.

Explore a wide range of Automation & Control Gear products from Eaton and other leading brands available at EnvMart to enhance your industrial electrical installations and automation systems.
