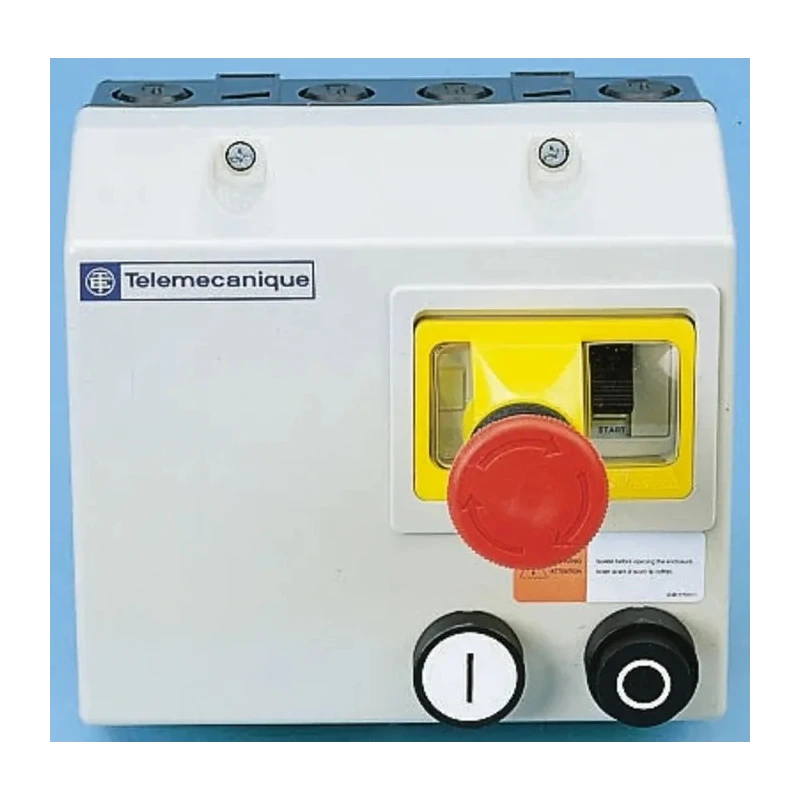

Schneider Electric TeSyS LG - LJ Direct On Line Starter, DOL, 440V AC, 4 kW, 3 Phase, 10A Current, IP65 Rated LG7K09M714

Schneider Electric LG7K09M714 is a high-quality TeSyS LG - LJ series direct on line (DOL) starter designed specifically for 3 phase motor control applications. It operates efficiently at 440V AC with a power rating of 4 kW and a current rating of 10A, making it ideal for industrial motor starting needs.

This DOL starter ensures unidirectional operation with user-friendly push-button isolation control. It offers reliable short circuit and overload protection to safeguard motors and connected equipment. The product comes with a pre-wired casing requiring only power and motor connection for quick commissioning.

The robust design features a combination of plastic and metal housing with removable steel base plates that provide rigidity during mounting on uneven surfaces while facilitating earthing and wiring tasks. The impact-resistant polycarbonate front cover is adaptable for fitting additional components without drilling.

Standards compliance includes EN/IEC certifications, and the starter meets IP65 protection rating, suitable for demanding industrial environments. Its compact dimensions - 165 mm length, 175 mm width, and 120 mm depth - allow versatile mounting options.

Perfect for use in industrial, manufacturing, electrical control, and automation systems, this motor starter supports machine applications under EU Machine Directive 89/392/EEC. It includes an appropriately-rated circuit breaker within the supply to ensure safety and conformity.

Designed for unidirectional motor control with push-button isolation. Includes short circuit and overload protection for enhanced safety. Pre-wired casing ready for immediate use with motor power connections. Features a sturdy plastic and metal combination housing with removable steel base plates.

Complies with EN/IEC standards and has IP65 rated impact resistant polycarbonate front cover. Compact dimensions of 165mm length, 175mm width, and 120mm depth for easy installation. Suitable for machines under Machine Directive 89/392/EEC.

Includes an appropriately-rated circuit breaker within the supply package. Explore more Schneider Electric Motor Starters and automation products on EnvMart for diverse industrial needs.
