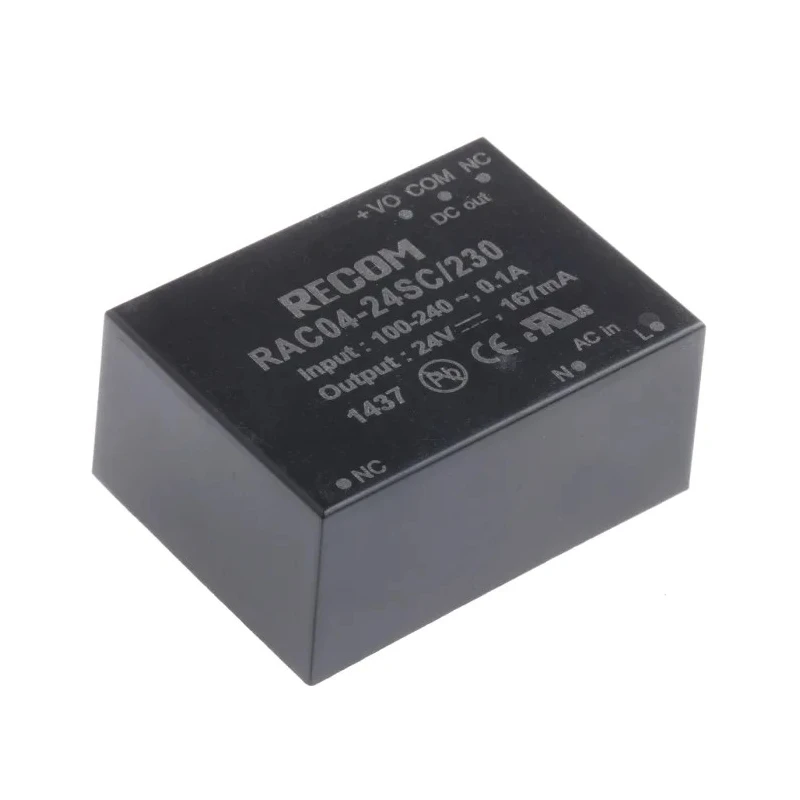

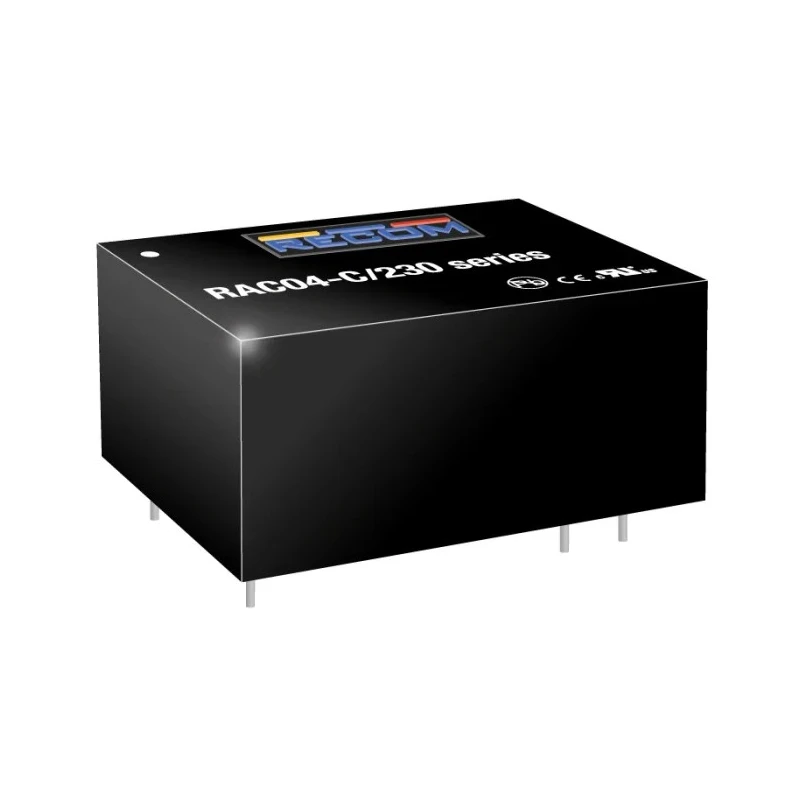

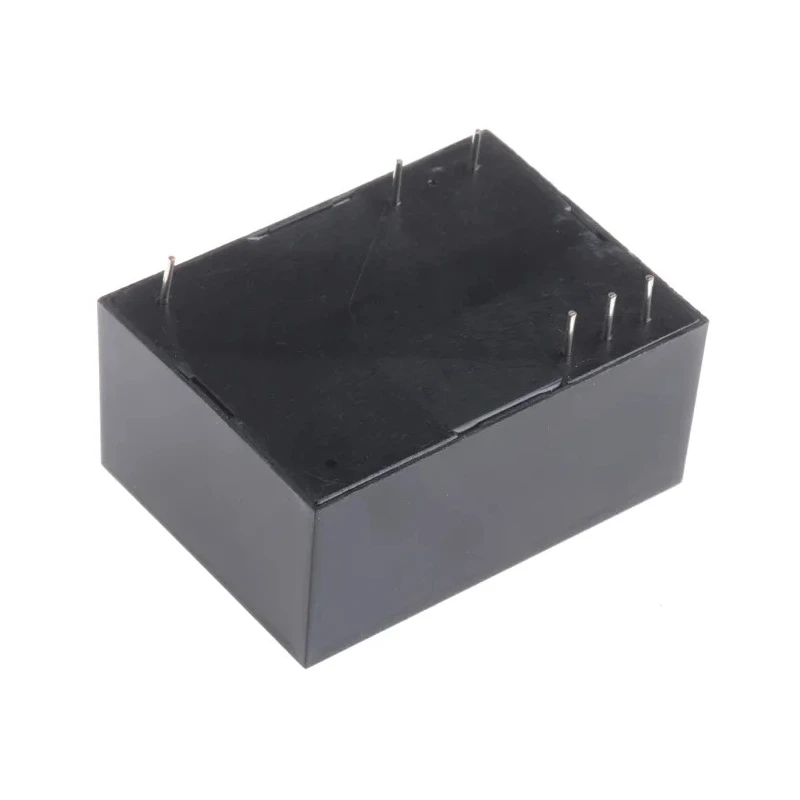

Recom Switching Power Supply 24V DC, 4W, 80-305V AC Input, PCB Mount RAC04-24SC/230

Free Delivery in India | Lowest Global Shipping Charges

Recom Switching Power Supply 24V DC, 4W, 80-305V AC Input, PCB Mount RAC04-24SC/230

Name: Recom Switching Power Supply 24V DC, 4W, 80-305V AC Input, PCB Mount RAC04-24SC/230
Brand: Recom
SKU: 377019
Price: 20.22 USD
Availability: InStock



Category Switching Power Supplies Brand Recom Condition New

Specifications

Country of Origin	Taiwan
Brand	Recom
Power	4W
Efficiency	79%
Length	36.7mm
Model	RAC04-24SC/230
Depth	17.1mm
Gross Weight	31.5g
Width	27.2mm
Mount Type	PCB
Series	RAC04-C/230
Maximum Operating Temperature	65°C
Minimum Operating Temperature	-40°C
Number of outputs	1
Maximum Input Voltage	305V ac
Standards/Approvals	UL 609501, EN 609501, EN 550 Class B
Maximum Output Voltage	24V dc
SMPS Output Current	167mA
Minimum Input Voltage	80V ac

Key Features

Compact PCB mount design for space-saving integration.
Wide operating temperature range from -40°C to +65°C suits harsh environments.
Integral short-circuit protection ensures circuit safety.
High efficiency of 79% minimizes energy loss during operation.
Long mean time between failures of 500,000 hours at 25°C guarantees durability.
Single output delivering 167mA constant current output.
Low no-load power consumption of 100mW reduces standby energy use.
Compliant with UL 60950-1, EN 60950-1, and EN 550 Class B standards.

Product Description

Recom RAC04-24SC/230 is a switching power supply designed for converting AC input voltages ranging from 80V to 305V into a stable 24V DC output. It provides a continuous output power of 4 watts with a single output channel delivering 167mA of current. Its compact PCB mount form factor (36.7mm x 27.2mm x 17.1mm) allows for integration into compact industrial, automation, and instrumentation systems.

Engineered to operate efficiently in harsh environments, this power supply supports an operating temperature range from -40°C to +65°C. It includes integral short-circuit protection to safeguard connected circuits against faults, ensuring safety and reliability.

With an efficiency rating of 79%, the device converts most of the input electrical energy into usable power with minimal loss, bolstering energy efficiency in applications.

A long mean time between failures (MTBF) rating of 500,000 hours at 25°C vouches for extended operational life and dependable performance in industrial automation, standby device supply, and instrumentation systems.

This product meets internationally recognized safety standards, including UL 60950-1, EN 60950-1, and EN 550 Class B, ensuring compliance for use in various professional and commercial electrical environments.

The switching power supply is manufactured in Taiwan, Province Of China, and is suitable for use in industrial, laboratory, manufacturing, and automation applications where compact, reliable 24V DC power conversion is required.

Compact PCB mounting power supply delivering 24V DC at 4W output power. Wide input voltage range from 80V to 305V AC to accommodate global power standards. Operates reliably between -40°C and +65°C for harsh environment use.

Integral short-circuit protection enhances electrical safety. 79% efficiency reduces power consumption and heat generation. Long operational life with 500,000 hours MTBF at 25°C. Complies with UL 60950-1, EN 60950-1, and EN 550 Class B standards.

Small dimensions allow easy PCB integration in compact systems. Ideal for automation, standby power, and instrumentation applications. Discover an extensive range of electronic power supplies and components on EnvMart for your industrial and commercial electrical needs.
