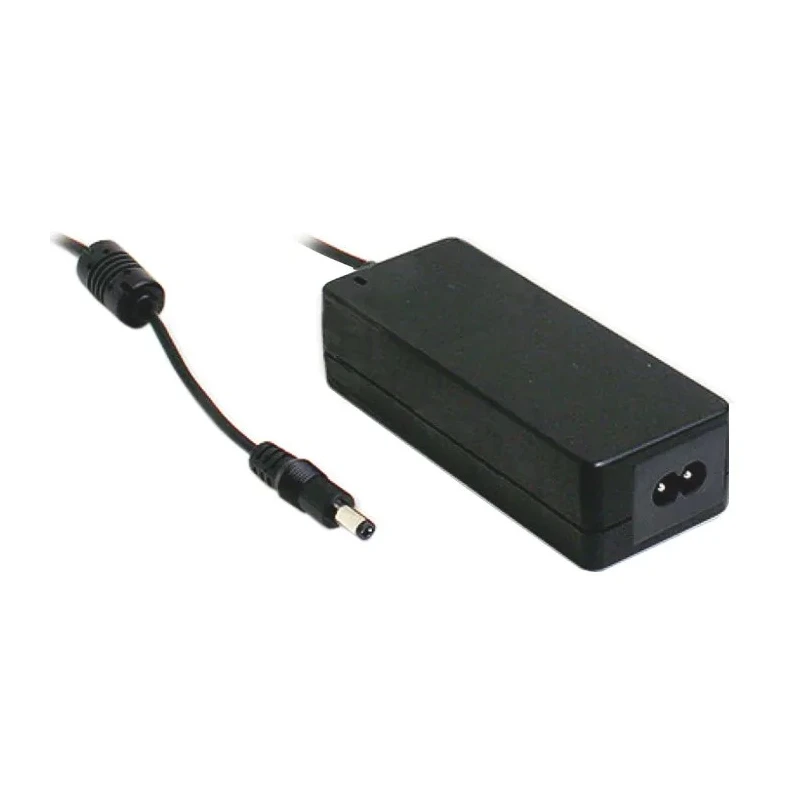

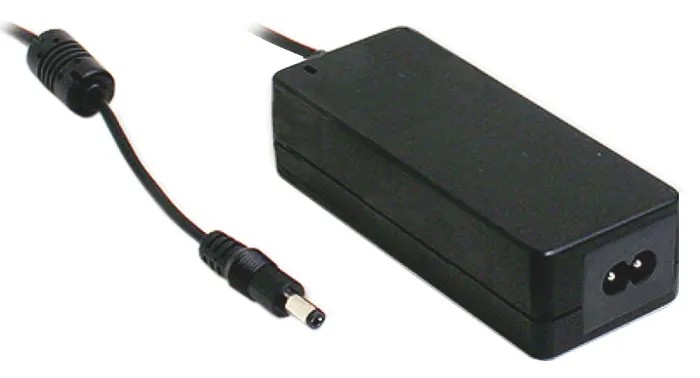

MEAN WELL AC/DC Adapter 264 V AC Input 1.67 A Output 24 V DC 40 W GSM40B24-P1J

MEAN WELL GSM40B24-P1J AC/DC Adapter is a high-performance medical-grade power supply designed for sensitive electrical equipment requiring minimal leakage current and energy efficiency. Rated at 40 W with a 24 V DC output and capable of handling input voltages from 100 to 264 V AC, this adapter supports a variety of medical and industrial applications such as portable medical devices, home healthcare equipment, and laboratory instruments.

This switch mode power supply features high conversion efficiency (up to 91%) and extremely low no load power consumption below 0.1 W, complying with international energy saving standards including ErP step 2 (Level V) and EISA 2007. The GSM40 series offers robust protections against short circuit, overload, over voltage, and over temperature (applicable to GSM60 series), ensuring safety and reliability in demanding environments.

The unit incorporates a Class II power design with an IEC 320-C8 two-pole AC inlet and a 1500 mm cable length, enclosed within a UL94V-0 rated flame retardant plastic casing. Operating safely within -30 to +60 °C, it meets stringent medical safety approvals such as UL, CUL, TUV, CB, FCC, and CE, and fulfills medical standards ANSI/AAMI ES60601-1 and TUV EN60601-1-11, making it suitable for patient-contact medical applications requiring low leakage currents below 50 μA.

Compact 40 W desktop power supply with 24 V DC output voltage. Wide input voltage range of 100 to 264 V AC supporting global use. High efficiency and low power loss contribute to energy saving. Medical safety standards certification ensure suitability for healthcare devices.

Multiple protection features extend device and user safety. Robust plastic enclosure with UL94V-0 flame retardancy. Low leakage current supports sensitive medical equipment. Suitable for industrial, medical, laboratory, and commercial applications.

This adapter is ideal for powering medical equipment, laboratory instruments, industrial control systems, and other electronics demanding reliable, safe, and energy-efficient AC/DC power conversion. EnvMart supplies a wide range of AC/DC Adapters from renowned brands including MEAN WELL to meet various industrial and commercial power requirements.
