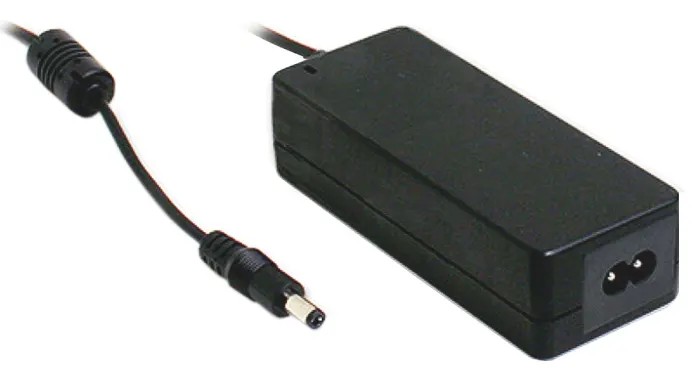

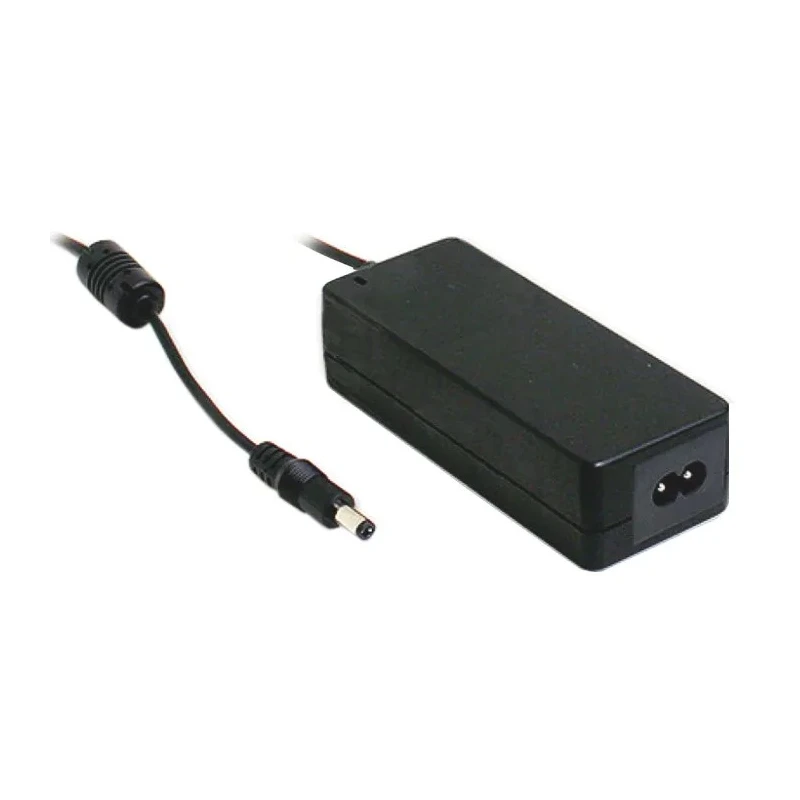

MEAN WELL AC/DC Adapter 100-264V AC Input 5V DC Output 6A 40W to 60W Medical GSM60B05-P1J

MEAN WELL GSM60B05-P1J AC/DC Adapter is a highly efficient 40W to 60W medical-grade power supply designed for use in demanding industrial, laboratory, and healthcare equipment requiring low leakage current and safety compliance.

This adapter supports a full range AC input voltage from 100V to 264V, providing stable 5V DC output with a maximum current of 6 Amperes. Its compact dimensions (125mm x 50mm x 31.5mm) and IEC 320-C8 connector support easy integration into medical devices and other sensitive electronics.

The power supply offers advanced protections including short circuit, overload, over voltage, and over temperature protection specifically tailored for the GSM60 series devices. It is constructed inside a UL94V-0 flame retardant plastic case and operates safely within a temperature range of -30°C to +60°C.

Meeting stringent international medical safety standards, the GSM60B05-P1J adapter features low leakage current below 50 microamperes, making it suitable for patient contact equipment. It complies with 2xMOPP medical safety requirements, ErP step 2 (Level V) energy efficiency regulations, and the Energy Independence and Security Act (EISA 2007).

Approvals include UL, CUL, TUV, CB, FCC, and CE certifications ensuring global compliance. The device is a class II power unit, eliminating the need for an earth ground pin, enhancing safety and reducing installation complexity.

Supports wide input voltage range from 100V to 264V AC. Provides a maximum output current of 6A at 5V DC. Compact dimensions: 125mm length, 50mm width, and 31.5mm depth. Equipped with IEC 320-C8 AC input connector for easy installation.

Features multiple protections including short circuit, overload, over voltage, and over temperature safeguards. High efficiency up to 91% with low no load power consumption below 0.1W. Medical safety approved with low leakage current less than 50 μA (2xMOPP).

Operating temperature range from -30°C to +60°C for reliable performance. Enclosed in UL94V-0 rated flame retardant plastic case, class II power without earth pin. Approved by UL, CUL, TUV, CB, FCC, and CE standards for safety and compliance.

This AC/DC adapter is ideal for various industrial, laboratory, medical, and commercial applications requiring dependable and safe DC power supply solutions. Explore more power supplies and adapters in the Electronics & Electricals category at EnvMart for high-quality and certified components.
