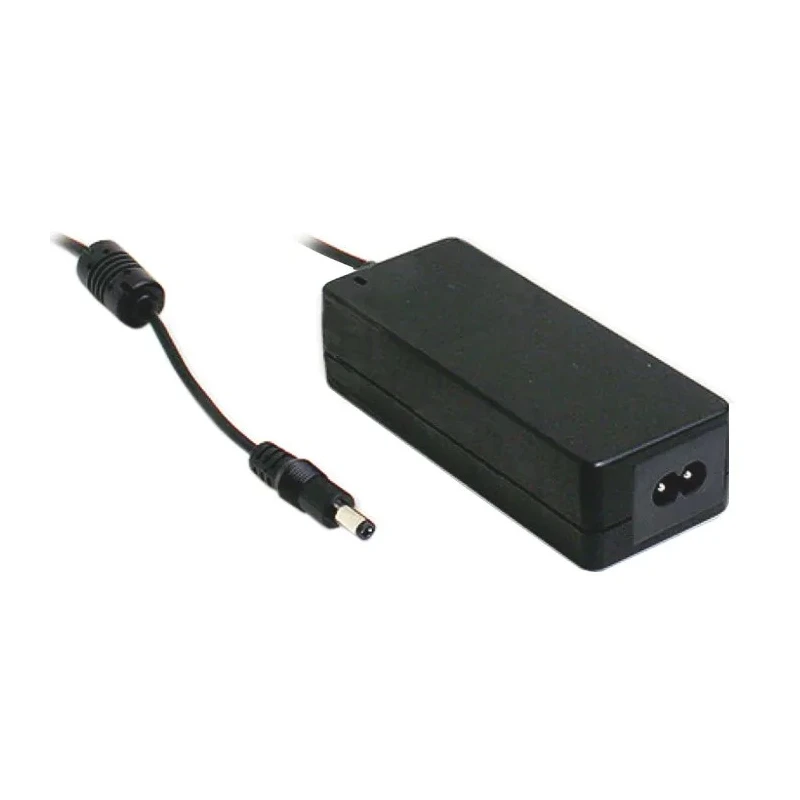

MEAN WELL AC/DC Adapter 15 V DC, 2.67 A Output, 264 V AC Input, Desktop Medical Power Supply GSM40B15-P1J

MEAN WELL GSM40B15-P1J AC/DC Adapter is a medical grade power supply designed for reliable desktop use. It outputs a stable 15 V DC voltage at a maximum current of 2.67 A and accepts an input voltage ranging from 100 V to 264 V AC, making it compatible with international power infrastructures.

This adapter is part of the GSM40 series, characterized by high efficiency up to 91% and low power consumption at no load under 0.1 W. It complies with medical safety standards including ANSI/AAMI ES60601-1 and ES60601-1-11, ensuring safety for patient-contact applications with low leakage current below 50 microamperes.

The device features a durable UL94V-0 rated flame retardant plastic enclosure, providing Class II protection without an earth ground pin. It includes a two-pole IEC 320-C8 AC inlet connector and comes with a 1500 mm cable length to facilitate easy integration in medical and industrial equipment.

Operating temperature range from -30°C to +60°C ensures robust performance in diverse environments. Safety protections cover short circuit, overload, over voltage, and over temperature conditions (applicable to GSM60 models mainly), enhancing reliability and device longevity.

The adapter conforms to energy efficiency regulations such as ErP step 2 (Level V) and EISA 2007, contributing to environmentally responsible power use. Certified to UL, CUL, TUV, CB, FCC, and CE standards, it is suited for use in medical, industrial, laboratory, and commercial applications where consistent and safe power supply is critical.

The adapter supports a full AC input voltage range of 100 to 264 V. It features a medical safety approved design with low leakage current below 50 μA. The unit meets ErP step 2 and EISA 2007 energy saving standards for high efficiency.

Protection mechanisms include short circuit, overload, over voltage, and over temperature (for GSM60 models). The compact design includes an IEC 320-C8 two-pole AC inlet and plastic enclosure rated UL 94V-0. Operating temperature range is from -30°C to +60°C, suitable for various environments.

The adapter is a Class II power supply without an earth ground pin and has an LED power indicator. It complies with multiple global safety certifications including UL, CUL, TUV, CB, FCC, and CE. Cable length is 1500 mm, with overall dimensions of 125 mm length, 50 mm width, and 31.5 mm depth.

This MEAN WELL AC/DC adapter is ideal for powering medical devices, portable healthcare equipment, laboratory instruments, and other electronics requiring a reliable, low-leakage power supply. Its compliance with stringent safety and efficiency standards ensures dependable and safe performance.
