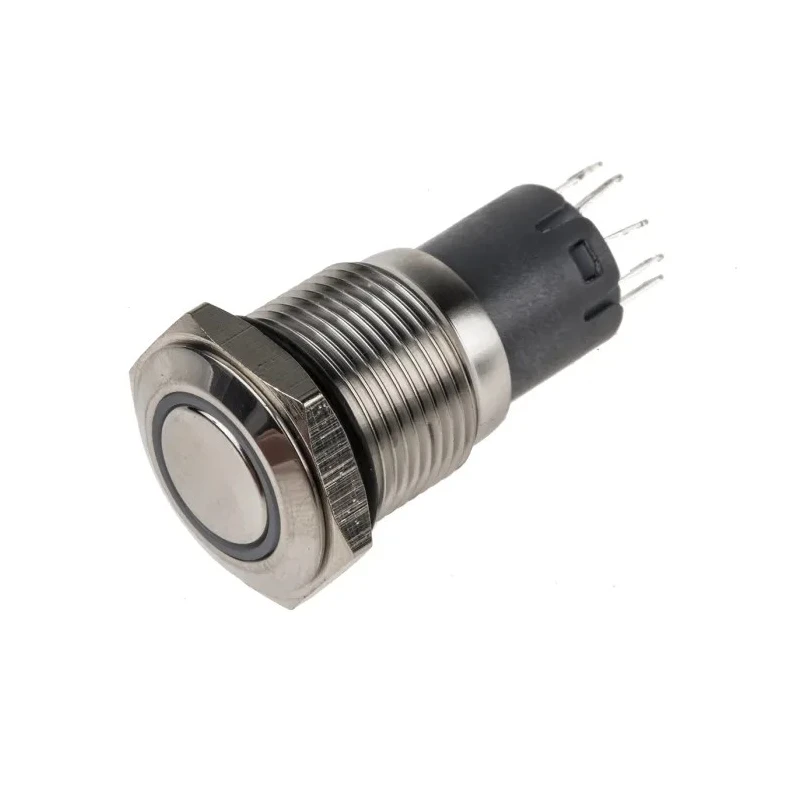

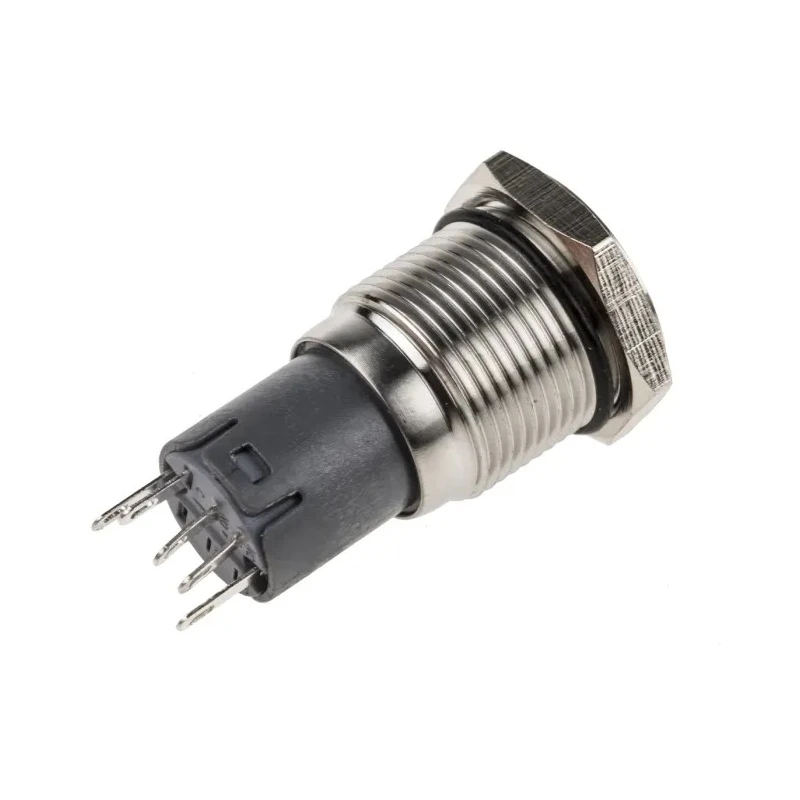

RS PRO Illuminated Push Button Switch Latching Panel Mount SPDT White LED IP65 IP67 250V AC 811-8415
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | RS PRO |
| Model | 811-8415 |
| IP Rating | IP65, IP67 |
| Mount Type | Panel |
| Contact Configuration | SPDT |
| Switch Configuration | SPDT |
| Minimum Operating Temperature | -20°C |
| Panel Cutout Size | 16 mm |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| LED Colour | White |
| Switch Operation | Latching |
| Actuator Colour | Silver |
| Contact DC Voltage | 250V |
| Actuator Style | Flat |
| Switch Contact Current | 3A |
| Contact AC Voltage | 250V ac |
Key Features
- Feature silver actuator colour and flat actuator style for sleek operation.
- Offers IP65 and IP67 protection rating for dust and water ingress resistance.
- Suitable for use in harsh environments requiring anti-vandal and high ingress protection.
- Terminal type is solder, ensuring solid electrical connections.
- Complies with RoHS standards to ensure environmental safety.
- Minimum operating temperature is -20°C for reliable performance in low temperatures.
- White LED illumination available with options for 12V or 24V LED supply.
- Stainless steel construction enhances durability and resistance to physical damage.
Product Description
RS PRO 811-8415 Illuminated Push Button Switch is a latching type panel mount switch with a 16 mm cutout designed for robust and reliable operation. It features a silver-coloured flat actuator and SPDT contact configuration rated for 250 V AC/DC operation. The switch provides ring illumination via a white LED to indicate status clearly.
This switch offers IP65 and IP67 ingress protection, making it suitable for use in dusty and wet conditions, ideal for industrial, automation, electrical panels, public kiosks, outdoor control panels, and dashboards where durability and resistance to vandalism and harsh environments are essential.
The construction uses stainless steel, providing excellent mechanical strength and protection, helping the device withstand physical attack and prolong operational life. The terminal type is solder, ensuring secure and permanent electrical connections.
It meets RoHS compliance for environmental standards and is operable in temperatures as low as -20°C, supporting varied industrial climates. The LED illumination ring is available in 12V or 24V options for flexible integration.
This product is manufactured in Taiwan, Province Of China, highlighting consistent quality standards. Silver actuator with flat style for ergonomic operation. SPDT contact configuration for versatile switching. High ingress protection rated IP65 and IP67.
Stainless steel material enhances durability. Suitable for industrial, automation, and electrical panel use. RoHS compliant for environmental safety. Operates reliably down to -20°C. White LED illumination with 12V or 24V options.
Explore the RS PRO range and find more robust and reliable Push Button Switches, perfectly suited for industrial and commercial applications at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The switch has an IP65 and IP67 rating, providing protection against dust and water ingress, making it suitable for harsh environments.
It operates reliably at temperatures as low as -20°C, making it suitable for various industrial climates.
This model features a Single Pole Double Throw (SPDT) contact configuration, allowing for versatile switching applications.
The installation requires a panel cutout size of 16 mm.
The switch utilizes solder terminals, ensuring secure and permanent electrical connections.
It is rated for 250V AC and 250V DC operation, making it suitable for various electrical applications.
The switch features a white LED illumination ring, which is available with options for 12V or 24V LED supply.
The switch is constructed from stainless steel, which enhances its durability and resistance to physical damage.
Yes, it complies with RoHS standards, ensuring it meets environmental safety requirements.
The switch features a flat actuator style with a silver actuator color for ergonomic operation.
It is suitable for use in industrial automation, electrical panels, public kiosks, outdoor control panels, and dashboards.
This model operates as a latching switch, allowing it to maintain its state until pressed again.
