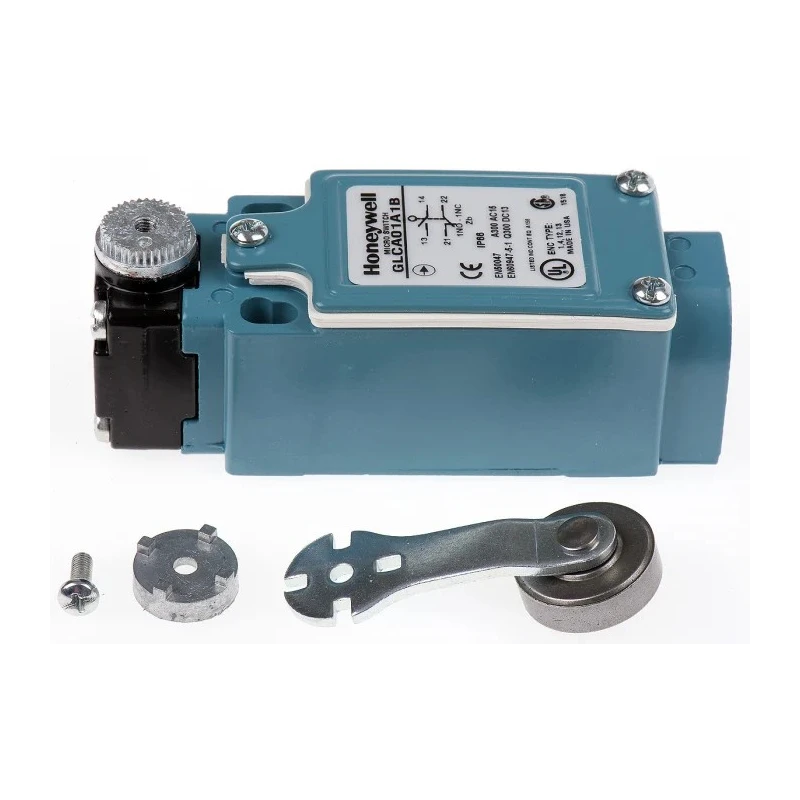

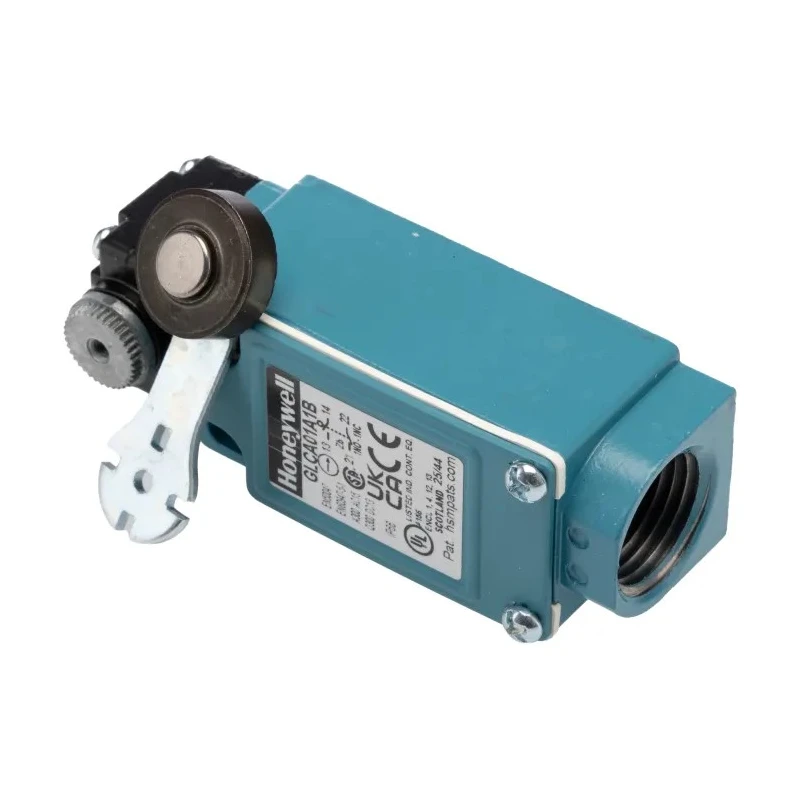

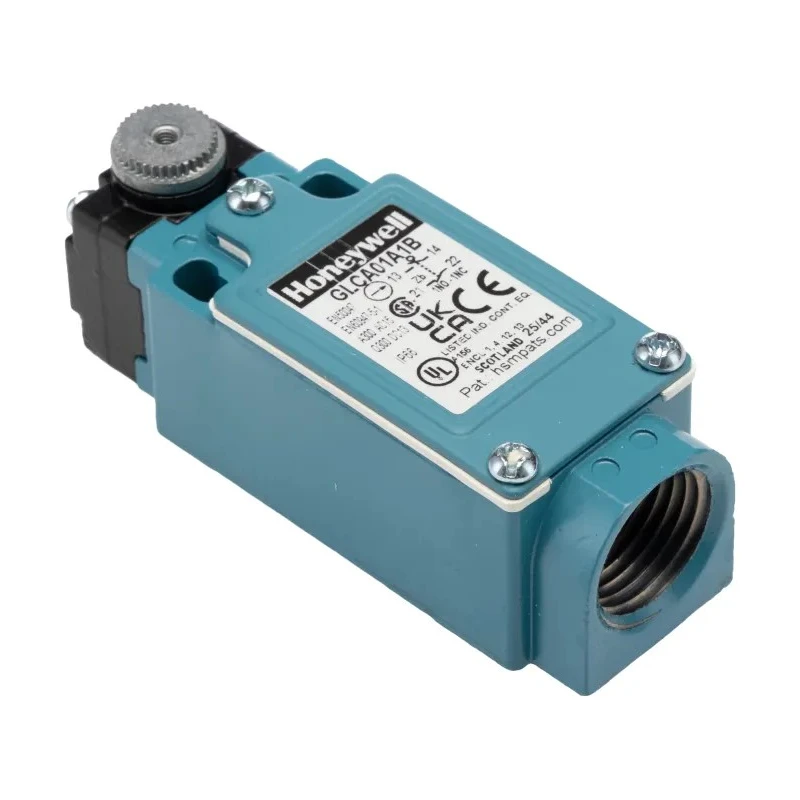

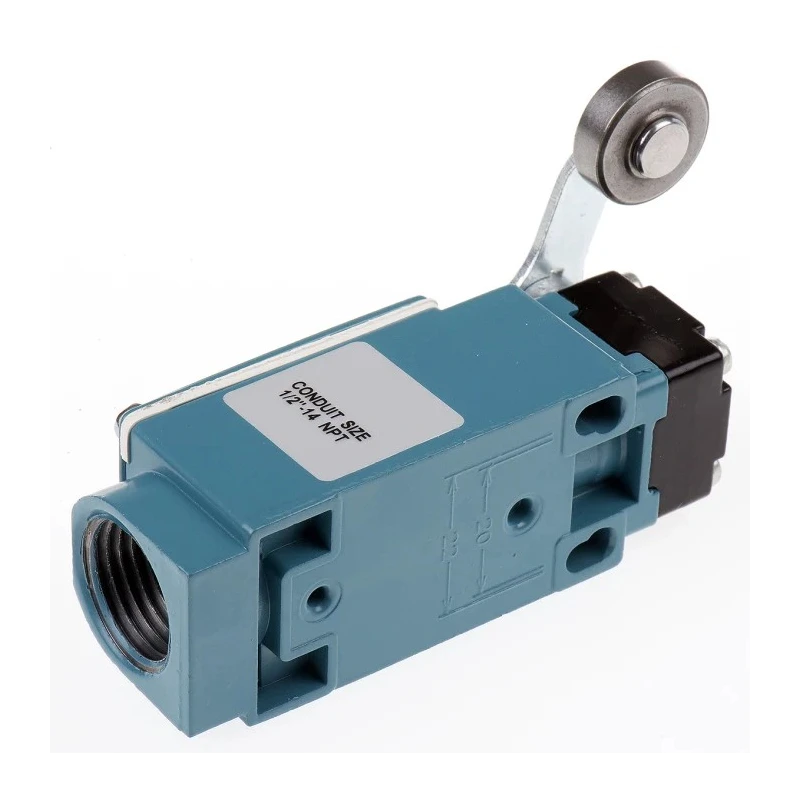

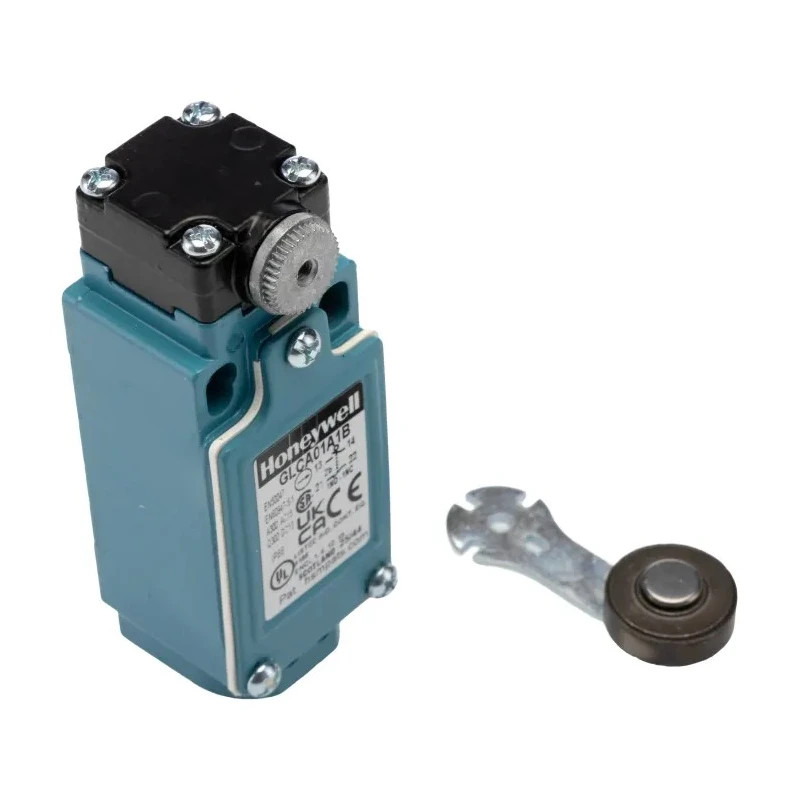

Honeywell Technologies GLC Series Roller Lever Limit Switch 1 NC/1 NO IP66 Die Cast Zinc Housing 240V AC 10A

Honeywell Technologies GLCA01A1B is a robust Roller Lever Limit Switch designed for precision mechanical position sensing suited to industrial automation and control systems. Featuring an electrostatic epoxy-coated die cast zinc housing, it offers IP66 ingress protection, ensuring optimal resistance against dust and water which makes it ideal for harsh environments.

This limit switch has one normally closed (1 NC) and one normally open (1 NO) snap action contact, delivering fast, reliable switching capable of handling up to 10A current. It supports operation on both 240V AC and 250V DC systems, enhancing its versatility across different industrial and manufacturing applications.

The switch is engineered to withstand a broad temperature range from -40°C to 85°C, suitable for cold storage and elevated ambient conditions. It offers a mechanical life of 15 million operations, reducing downtime and maintenance needs, with an actuation force of only 0.12 Nm via its roller lever actuator.

The side mounting design enables compact installation in confined spaces and is compatible with conduit fittings ranging from 0.5 to 14 NPT for simple wiring integration. The zinc housing is electrostatically epoxy-coated for greater corrosion resistance and mechanical protection, ensuring long-lasting durability in demanding industrial, manufacturing, material handling, and automation systems.

Typical applications include conveyor indexing system position feedback, linear actuator travel limit detection, machine safety interlock monitoring, packaging, and retrofit control panel integration where robust ingress protection and reliable switch performance are critical.

Equipped with 1 NC and 1 NO snap action contacts for flexible circuit configurations. Fast switching response with 10A current rating for mid-power control loads. Operates on 240V AC and 250V DC for broad system compatibility.

IP66 rated die cast zinc housing provides superior dust and water resistance. Durable mechanical life of 15 million operations reduces maintenance requirements. Wide operating temperature range from -40°C to 85°C for harsh environments.

Low operating torque of 0.12 Nm with roller lever actuator for sensitive actuation. Side mounting orientation for compact installations. Accepts 0.5 to 14 NPT conduit entries for standard industrial conduit fittings. Explore a wide selection of high-quality Limit Switches and industrial automation components at EnvMart for your manufacturing and process control needs.
