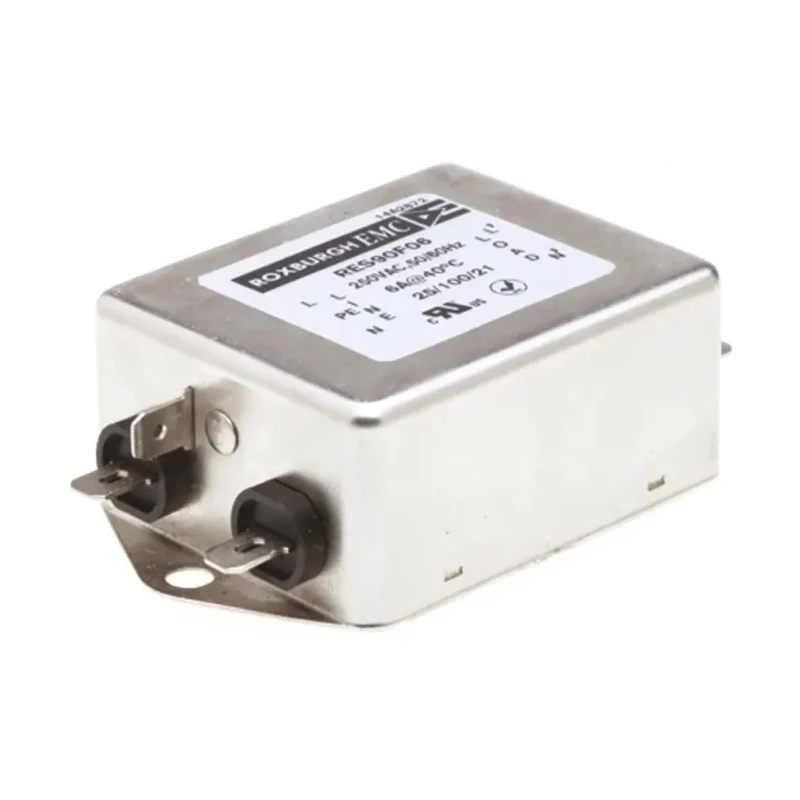

Roxburgh EMC Single Phase Chassis Mount RFI Filter 6 A 250V AC 60Hz Fast-On Termination RES90

Free Delivery in India | Lowest Global Shipping Charges

Roxburgh EMC Single Phase Chassis Mount RFI Filter 6 A 250V AC 60Hz Fast-On Termination RES90

Name: Roxburgh EMC Single Phase Chassis Mount RFI Filter 6 A 250V AC 60Hz Fast-On Termination RES90
Brand: Roxburgh EMC
SKU: 374537
Price: 63.27 USD
Availability: InStock



Category RFI Filter Brand Roxburgh EMC Condition New

Specifications

Country of Origin	India
Brand	Roxburgh EMC
Height	30mm
Length	85mm
Model	RES90
Depth	51mm
Mount Type	Chassis Mount
Operating Frequency	60Hz
Series	RES90
Maximum Operating Temperature	100°C
Resistance	330kΩ
Capacitance	8.6nF
Minimum Operating Temperature	-25°C
Maximum Current	6A
Number of Phases	1
Leakage Current	670μA
Maximum Voltage	250V ac
Inductance	16mH
Standards/Approvals	CSA 22.2 No. 8, UL 1283
Termination Style	Fast-On

Key Features

Designed for high differential and common mode attenuation in noisy environments.
Compact chassis mount type with fast-on solder termination style for easy installation.
Capacitance of 8.6nF and inductance of 16mH ensures excellent noise suppression.
Rated maximum operating temperature of 100°C and minimum operating temperature of -25°C.
Leakage current is limited to 670μA for efficient filtering.
Resistance of 330kΩ and UL 1283, CSA 22.2 No. 8 approvals for safety compliance.
Suitable for industrial electronic equipment, building automation, machinery, and communication devices.

Product Description

Roxburgh EMC RES90 single phase chassis mount RFI Filter with 6 A maximum current and 250V AC voltage designed for EMI suppression at 60Hz frequency. This multi-stage EMC filter provides very high differential and common mode attenuation suitable for applications exposed to electrical noise such as industrial drives, electronic data processing equipment, office automation, and building automation systems.

The compact chassis mount housing with fast-on terminations enables quick and reliable mounting and wiring integration into assemblies. Technical features include 8.6nF capacitance, 16mH inductance, and a leakage current of 670μA for efficient filtering of noise on power lines, ensuring greater system reliability.

This filter operates reliably from -25°C to 100°C ambient temperature, enabling use in diverse environmental conditions. Its physical dimensions of 85mm length, 51mm depth, and 30mm height make it suitable for confined spaces without compromising performance.

Compliance with UL 1283 and CSA 22.2 No. 8 standards guarantees safety and quality assurance for industrial and commercial applications. The 330kΩ resistance ensures consistent electrical characteristics over time.

Ideal for industrial, laboratory, manufacturing, commercial and electronic equipment environments requiring electromagnetic interference protection. The RES90 series filters are designed to provide robust attenuation for improved equipment longevity and regulatory compliance.

Designed for high differential and common mode attenuation in noisy environments. Compact chassis mount with fast-on solder termination style. Capacitance of 8.6nF and inductance of 16mH for noise filtering. Leakage current limited to 670μA for energy-efficient operation.
