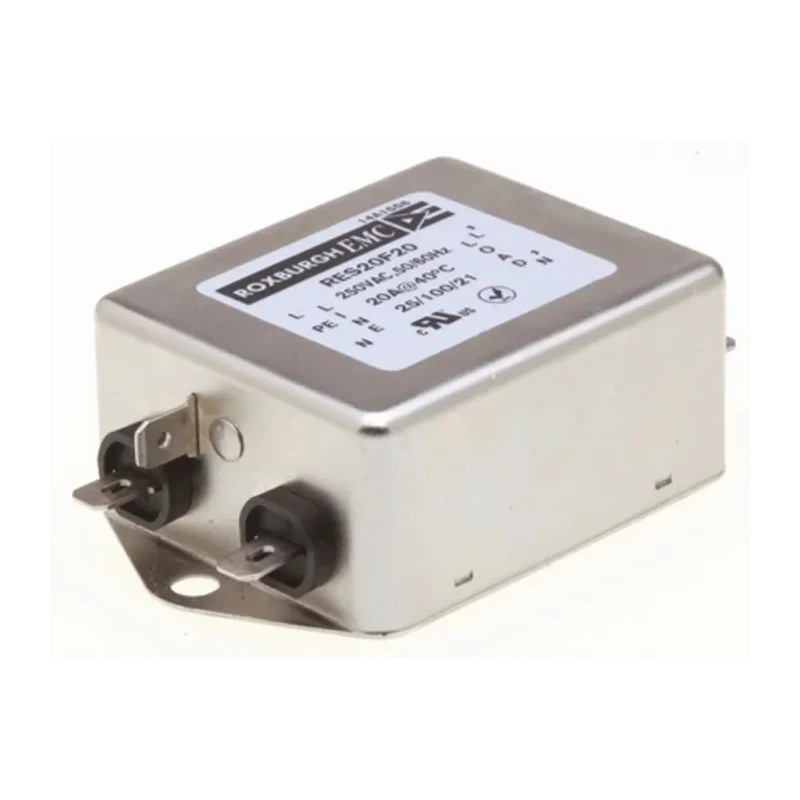

Roxburgh EMC Chassis Mount RFI Filter 20 A 250V AC 400Hz Fast-On 1 Phase RES20

Roxburgh EMC RES20 chassis mount RFI filter is engineered for applications requiring high differential mode attenuation of conducted radio frequency interference in electronic and electrical equipment. Rated for a maximum current of 20 A and maximum voltage of 250V AC, this filter operates effectively up to 400Hz frequency ensuring robust protection against EMI in various industrial and commercial setups.

Featuring a compact design suitable for chassis mounting, the RES20 series supports single-phase power systems and uses fast-on terminal connections for quick assembly without soldering. This enhances ease of installation and maintenance in environments such as machinery, office automation, building automation, and electronic data communication equipment.

The filter offers technical specifications including 300nF capacitance, 600μH inductance, and a leakage current of 740μA, balancing filtering efficiency with safety. It withstands operating temperatures ranging from -25°C to 100°C, ensuring dependable performance in varied ambient conditions.

Constructed according to industry standards CSA 22.2 No. 8 and UL 1283, the product complies with rigorous safety and quality norms. Its low electrical resistance of 1mΩ minimizes power losses, contributing to efficient system operation.

Physical dimensions of 85mm length, 52mm depth, and 29.5mm height allow for compact fitting in electronic assemblies while maintaining the necessary electrical isolation and filtering capabilities. Manufactured in India, the Roxburgh EMC RES20 filter is supplied in new condition.

Designed for effective attenuation of conducted radio frequency interference (RFI). Compact chassis mount design supporting 1 phase power. Fast-on termination style enabling quick and solder-free connection. Wide operating temperature range from -25°C to 100°C.

Complies with CSA 22.2 No. 8 and UL 1283 standards for safety and performance. Maximum capacitance of 300nF and inductance of 600μH enhances filtering efficiency. Leakage current rated at 740μA supports safe operation. Dimensions: 85mm length, 52mm depth, and 29.5mm height for space-efficient mounting.

Low resistance of 1mΩ ensures minimal power loss. Manufactured in India with new product condition.

This RFI Filter is ideal for industrial, manufacturing, electronic data processing, consumer electrical goods, and commercial HVAC systems requiring EMI suppression. The Roxburgh EMC RES20 filter ensures reliable noise filtering to maintain equipment functionality and compliance.
