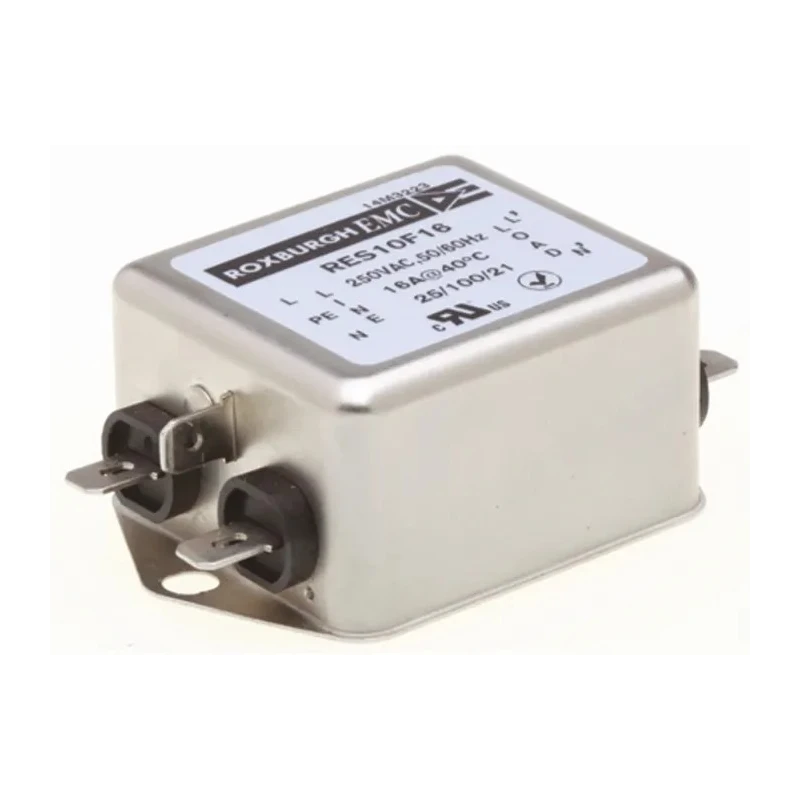

Roxburgh EMC Single Phase Chassis Mount RFI Filter 16A 250V AC 400Hz Fast-On Termination RES10

Free Delivery in India | Lowest Global Shipping Charges

Roxburgh EMC Single Phase Chassis Mount RFI Filter 16A 250V AC 400Hz Fast-On Termination RES10

Name: Roxburgh EMC Single Phase Chassis Mount RFI Filter 16A 250V AC 400Hz Fast-On Termination RES10
Brand: Roxburgh EMC
SKU: 374531
Price: 38.39 USD
Availability: InStock



Category RFI Filter Brand Roxburgh EMC Condition New

Specifications

Country of Origin	India
Brand	Roxburgh EMC
Height	29mm
Length	71mm
Model	RES10
Depth	45mm
Mount Type	Chassis Mount
Operating Frequency	400Hz
Series	RES10
Maximum Operating Temperature	85°C
Resistance	1mΩ
Capacitance	100nF
Minimum Operating Temperature	-25°C
Maximum Current	16A
Number of Phases	1
Leakage Current	740μA
Maximum Voltage	250V ac
Inductance	700μH
Standards/Approvals	CSA 22.2 No. 8, UL 1283
Termination Style	Fast-On

Key Features

This chassis mount filter features fast-on termination for easy and reliable connection.
Compact design with dimensions of 71mm length, 45mm depth, and 29mm height facilitates installation in constrained spaces.
Operating temperature ranges from -25°C to 85°C supporting various application environments.
Leakage current is low at 740μA, suitable for sensitive equipment including medical applications.
Compliance with standards CSA 22.2 No. 8 and UL 1283 ensures reliability and safety.
Inductance of 700μH and capacitance of 100nF ensure effective noise suppression.
Resistance is minimal at 1mΩ maintaining circuit efficiency.
Suitable for use in general-purpose filtering for electrical and electronic equipment, consumer goods, building automation, and machinery.

Product Description

Roxburgh EMC RES10F16 is a single phase chassis mount RFI filter designed to provide excellent attenuation of conducted radio frequency interference, enhancing electromagnetic compatibility in various electrical and electronic equipment.

This filter supports a maximum current rating of 16A and a maximum voltage of 250V AC operating at 400Hz frequency, making it suitable for industrial, medical, and commercial applications requiring stable noise filtration.

The filter's compact size, measuring 71mm in length, 45mm in depth, and 29mm in height, allows integration into limited space environments with fast-on termination style facilitating quick and reliable installation.

Operational temperature range from -25°C to 85°C and a low leakage current of 740μA provide robust performance in diverse environments, including sensitive medical equipment where low leakage is critical.

Standards compliance includes CSA 22.2 No. 8 and UL 1283, assuring quality and adherence to safety norms. The Roxburgh EMC RES10 series filters are trusted extensively in electrical and electronic device manufacturing, household appliances, building automation, and communication processing equipment.

This chassis mount RFI filter features fast-on termination for secure connections. Compact dimensions support integration in constrained electrical panels. High reliability guaranteed by international safety standards. Low leakage and optimized inductance and capacitance parameters.

Suitable for both industrial and medical applications. Manufactured in India ensuring supply consistency.

Choose this Roxburgh EMC RES10F16 chassis mount RFI filter for effective conducted interference suppression to enhance your equipment’s electromagnetic compatibility. Explore more RFI Filters in the Electronics Components category on EnvMart.
