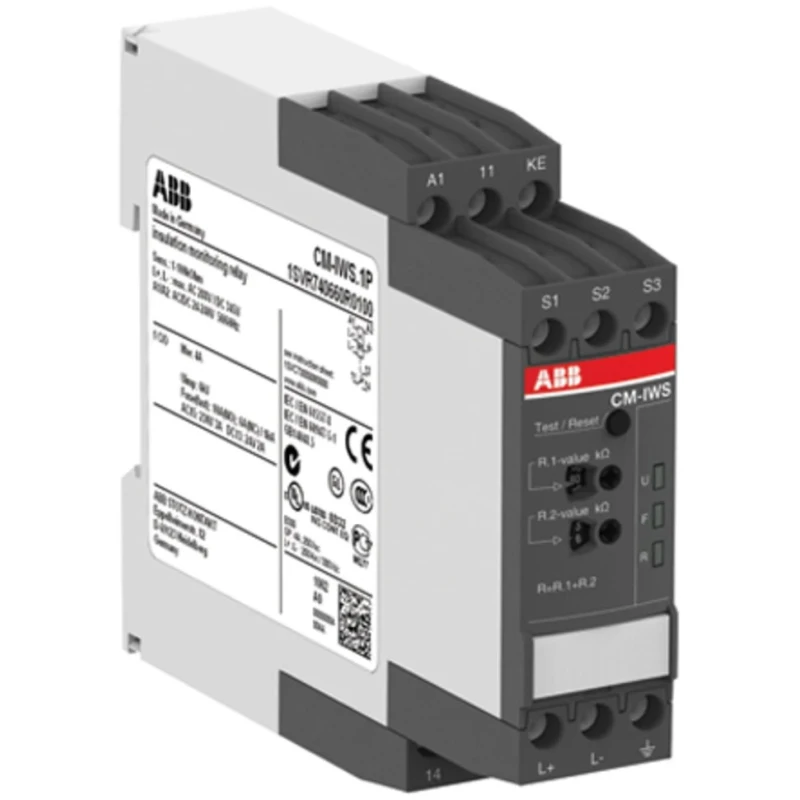

ABB Monitoring Relay, 3 1 Phase, SPDT Contact Configuration, DIN Rail Mount, Push-in Terminals 1SVR740660R0100 CM-IWS.1P

ABB 1SVR740660R0100 CM-IWS.1P Monitoring Relay is a state-of-the-art insulation monitoring device designed to ensure safety and reliability in electrical installations.

This relay supports both single-phase and three-phase monitoring within industrial and commercial electrical applications, providing robust protection by detecting insulation resistance faults.

The device operates on a rated control supply voltage ranging from 24 to 240 V AC/DC, accommodating various power scenarios with flexibility. Offering a measuring range of 1 to 100 kΩ with precise threshold adjustments in 1 kΩ increments, it allows fine-tuned control for early fault detection.

The relay is mounted on a DIN rail using a compact design of 103.7 mm length, 85.6 mm height, and 22.5 mm width, facilitating straightforward integration within electrical panels.

Push-in terminal technology simplifies wiring while ensuring a secure, vibration-proof connection. The relay's SPDT (Single Pole Double Throw) contact configuration operates on the closed-circuit principle for reliable switching.

Additional safety features include interrupted wire detection and three LED status indicators that provide clear visual feedback on operational states, helping technicians quickly assess system health.

Compliant with international standards including CE, RoHS, UL, UKCA, CCC, DNV, and EAC, this relay meets rigorous quality and safety benchmarks.

The CM-IWS series is known for its versatile insulation monitors suitable for industrial, laboratory, manufacturing, HVAC, and commercial electrical systems, making it an essential component for enhanced electrical safety protocols.

Choose ABB Monitoring Relays for precision, reliability, and compliance in your electrical installations. Explore more in the Electronics & Electricals category to find a wide range of relays and monitoring solutions by ABB and other top brands available at EnvMart.

The relay supports both 240 V AC and 240 V DC supply voltages. It features precise threshold adjustment from 1 to 100 kΩ in 1 kΩ steps. Equipped with interrupted wire detection for increased safety. Push-in terminal type ensures easy and secure connections.

Compact dimensions of 103.7 mm length, 85.6 mm height, and 22.5 mm width. Three LED indicators provide clear operational status monitoring. Complies with CE, RoHS, UL, UKCA, CCC, DNV, and EAC standards. Part of the CM-IWS series specialized for insulation monitoring.
