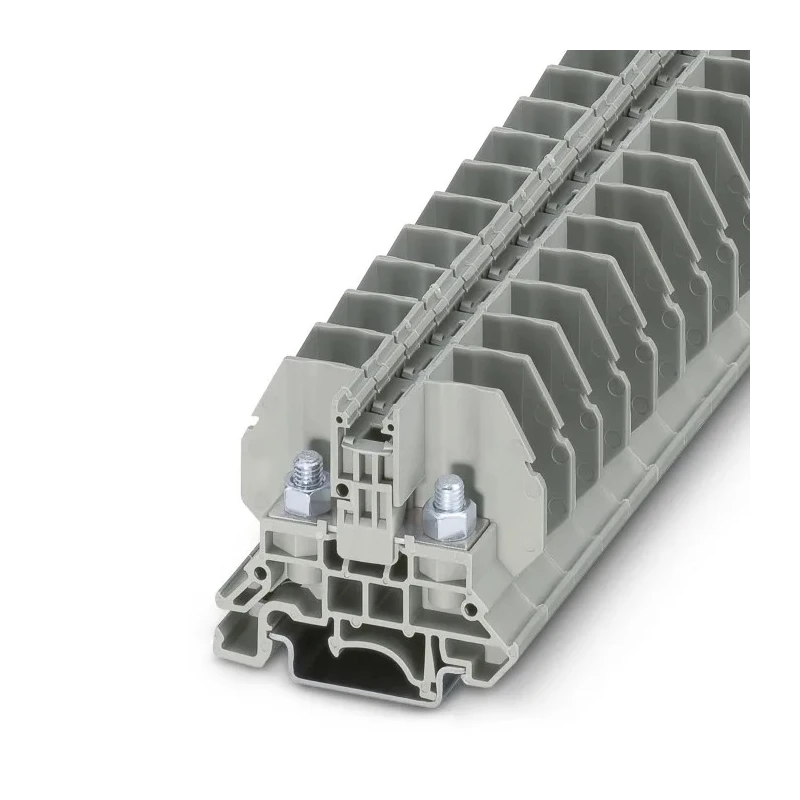

Phoenix Contact RBO 5 Series High Current Grey Feed Through Connector 6mm² 1-Level Bolt Termination 3058059

Free Delivery in India | Lowest Global Shipping Charges

Phoenix Contact RBO 5 Series High Current Grey Feed Through Connector 6mm² 1-Level Bolt Termination 3058059

Name: Phoenix Contact RBO 5 Series High Current Grey Feed Through Connector 6mm² 1-Level Bolt Termination 3058059
Brand: PHOENIX CONTACT
SKU: 373884
Price: 20.22 USD
Availability: InStock



Category DIN Rail Terminal Blocks Brand PHOENIX CONTACT Condition New

Specifications

Country of Origin	India
Voltage	800V
Brand	Phoenix Contact
Colour	Grey
Model	3058059
Series	RBO 5
Termination Type	Bolt
Maximum Operating Temperature	105°C
Number of Levels	1
Sub Type	Feed Through
Minimum Operating Temperature	-60°C
Pitch	13mm
Standards/Approvals	CSA, cULus, EAC, REACH
Minimum Wire Size AWG	26AWG
Maximum Wire Size AWG	10AWG
Cable CSA	6mm²
Terminal Block Current	57A

Key Features

Rated for high current of 57A suitable for industrial applications.
Supports wire sizes from AWG26 to AWG10 with 6mm² cable cross-section.
Bolt termination type ensures secure and quick wiring connections.
Operating temperature range from -60°C to +105°C for extreme environments.
Compact 13mm pitch allows installation in tight spaces.
Constructed with durable grey PA material resistant to wear and impact.
Complies with CSA, cULus, EAC, and REACH standards for quality assurance.
Non-fused feed through terminal type suitable for power distribution.

Product Description

Phoenix Contact 3058059 RBO 5 Series High Current Connector is a grey, non-fused DIN rail terminal block offering robust electrical connections for industrial, automation, and process control applications. This feed through connector operates reliably at voltages up to 800V and currents up to 57A, handling demanding power setups efficiently.

Designed with a 1-level configuration and a bolt type termination, it supports wire sizes ranging from 26 AWG to 10 AWG (6mm² cable CSA), allowing versatility in wiring options. The 13mm pitch enables installation in compact spaces on DIN rails, optimizing layout efficiency in control panels.

It performs well under harsh conditions with an operating temperature range from -60°C up to +105°C. Constructed with high-quality PA material, the unit offers resistance to wear and impact, extending service life in industrial environments. The connector is self-extinguishing in under 10 seconds, enhancing fire safety.

This product meets multiple international certifications including CSA, cULus, EAC, and REACH, confirming compliance with relevant safety and environmental standards. Its design supports reliable power distribution where non-fused connections are required.

High current rating of 57A accommodates powerful electrical loads. Wide operating temperature range supports diverse environmental conditions. Secure bolt termination speeds up installation and maintenance. Compact dimensions allow efficient panel use.

Durable PA housing ensures longevity and impact resistance. Complies with key international standards for quality assurance. Supports multiple wire sizes for flexible installation. Manufactured in India, maintaining source traceability and quality.

This terminal block is ideally suited for demanding industrial and commercial electrical systems, including manufacturing automation, process control, and other power distribution applications. Its robust design and certification make it a reliable choice for ensuring safe and efficient electrical connections.

Explore a wider range of Phoenix Contact products and DIN Rail Terminal Blocks in the EnvMart catalog to find components that suit your specific technical and commercial requirements.
