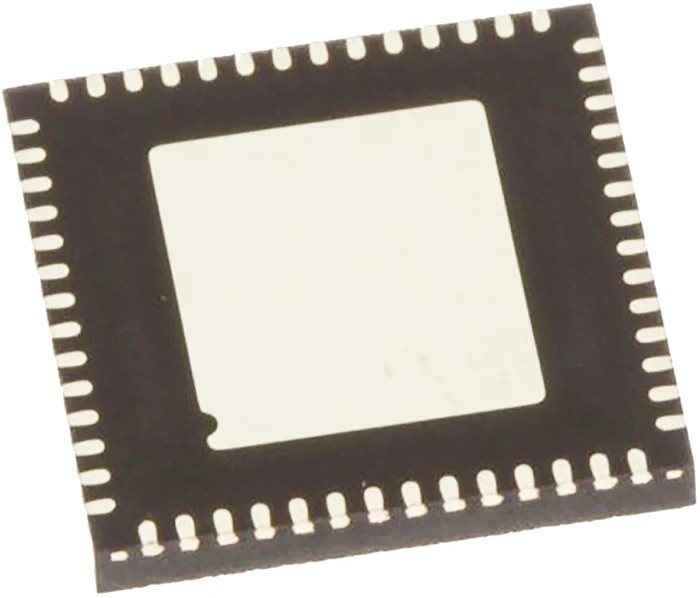

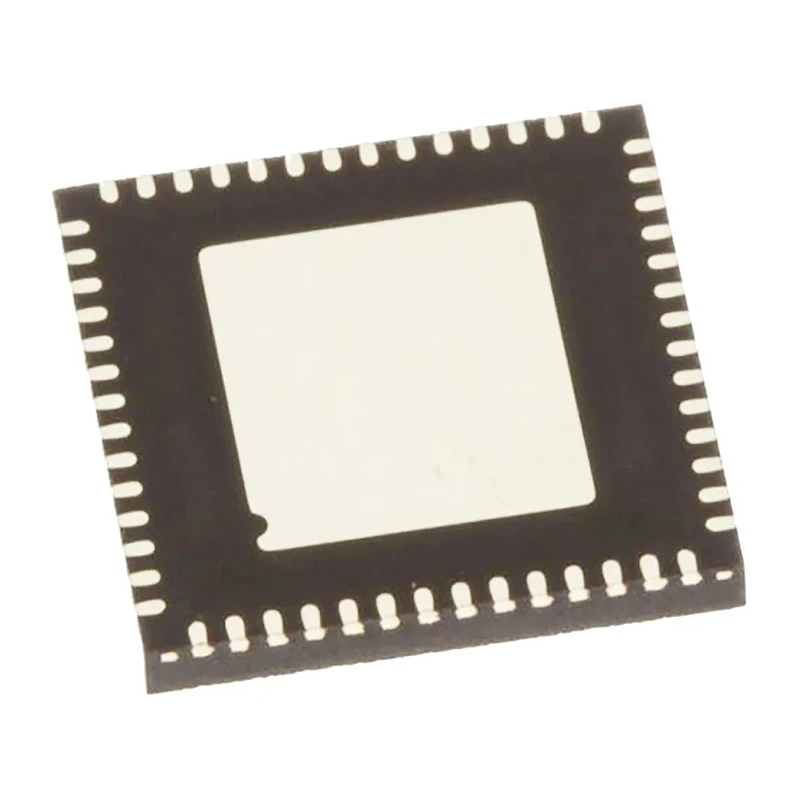

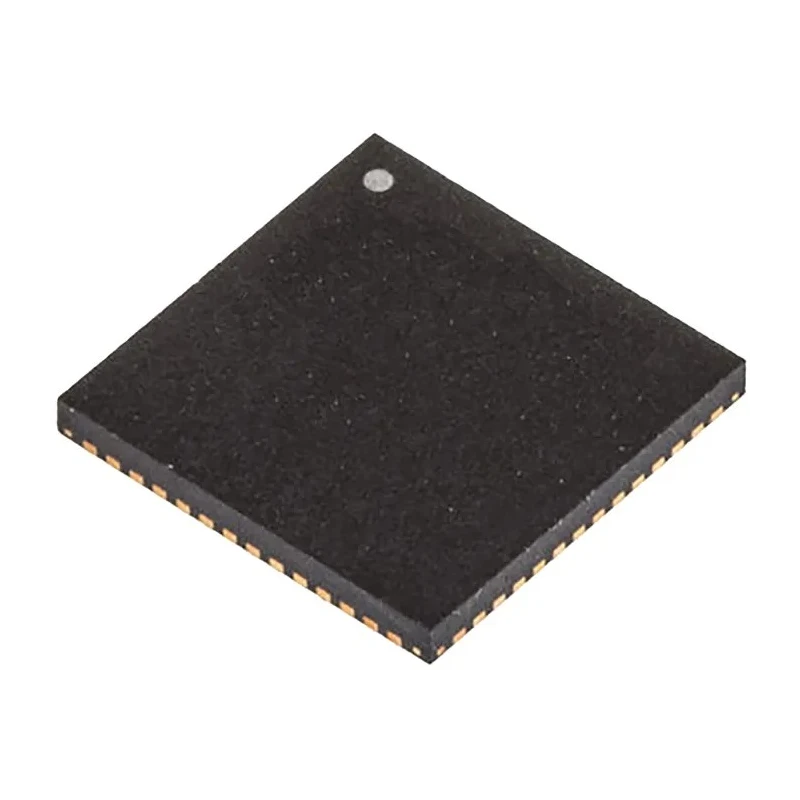

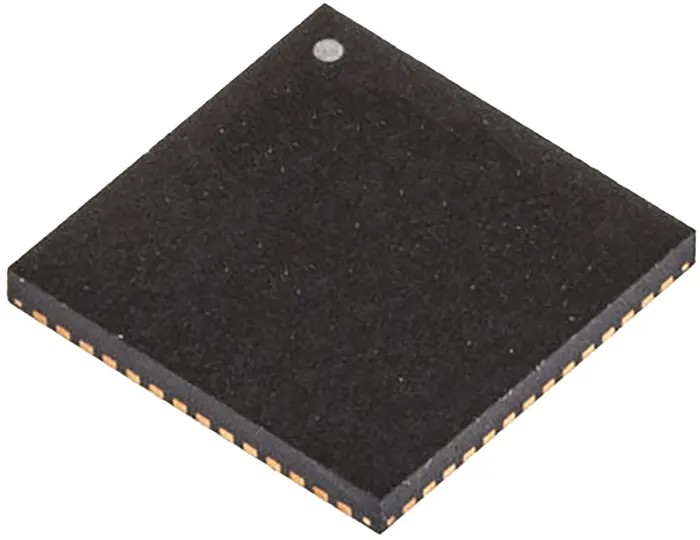

Microchip 56-Pin QFN Ethernet Controller 3.3 V 1000 Mbps USB Full Duplex/Half Duplex LAN7500-ABZJ

Name: Microchip 56-Pin QFN Ethernet Controller 3.3 V 1000 Mbps USB Full Duplex/Half Duplex LAN7500-ABZJ
Brand: Microchip
SKU: 373761
Price: 8.53 USD
Availability: InStock



Category Ethernet Interface Ics Brand Microchip Condition New

Specifications

Country of Origin	India
Brand	Microchip
Height	1mm
Length	8mm
Model	LAN7500-ABZJ
Width	8mm
Mount Type	Surface
Maximum Operating Temperature	70°C
Package Type	QFN
Minimum Operating Temperature	0°C
Communication Mode	Full Duplex/Half Duplex
Interface Type	USB
Pin Count	56
Maximum Supply Voltage	3.3V
Maximum Data Rate	1000Mbps
Loopback Mode	Internal, External
Standard Supported	IEEE, IEEE 802.3u, IEEE 802.3

Key Features

Provides 56-pin QFN surface mount packaging for compact PCB integration.
Supports USB interface for Ethernet communications enabling data rates up to 1000 Mbps.
Compatible with IEEE, IEEE 802.3u and IEEE 802.3 standards for wide interoperability.
Operates over 0°C to 70°C temperature range ensuring reliability in diverse environments.
Includes internal and external loopback modes for diagnostic and testing purposes.
Maximum supply voltage is 3.3 V for efficient power usage and compatibility.
Measures 8 mm x 8 mm x 1 mm, suitable for space-constrained applications.
Designed without automotive standards, optimized for general industrial and commercial use.

Product Description

Microchip LAN7500-ABZJ is a high-performance Ethernet Controller available in a compact 56-pin QFN package designed for surface mount technology. It supports USB 2.0 interface to deliver Ethernet communications at data rates of up to 1000 Mbps. Operating at 3.3 V maximum supply voltage, this controller complies with IEEE 802.3, IEEE 802.3u standards ensuring broad compatibility across networking applications.

This device supports both full duplex and half duplex communication modes, enabling flexible network configurations. It features both internal and external loopback modes for effective diagnostics and testing in manufacturing or field environments. Operating temperature ranges from 0°C to 70°C, suitable for typical industrial and commercial electronics conditions.

The LAN7500-ABZJ Ethernet Controller measures only 8 mm length, 8 mm width, and 1 mm height, making it ideal for compact embedded system designs requiring efficient space utilization. It is supplied in a tray packaging format ready for direct PCB assembly, helping improve production efficiency.

Typical applications include embedded Ethernet devices, industrial automation networking, commercial electronics, and communication equipment requiring reliable USB to Ethernet bridge functionality.

56-pin QFN surface mount package for compact and robust PCB integration. USB 2.0 interface to 10/100/1000 Mbps Ethernet transceiver support. Full and half duplex communication modes enabled. Compliance with IEEE 802.3 and IEEE 802.3u standards.

Internal and external loopback diagnostic modes for testing. 3.3 V operating supply voltage with a 0°C to 70°C temperature range. Compact 8x8x1 mm physical dimensions for small form factor applications. Ideal for industrial, commercial, and embedded networking solutions.
