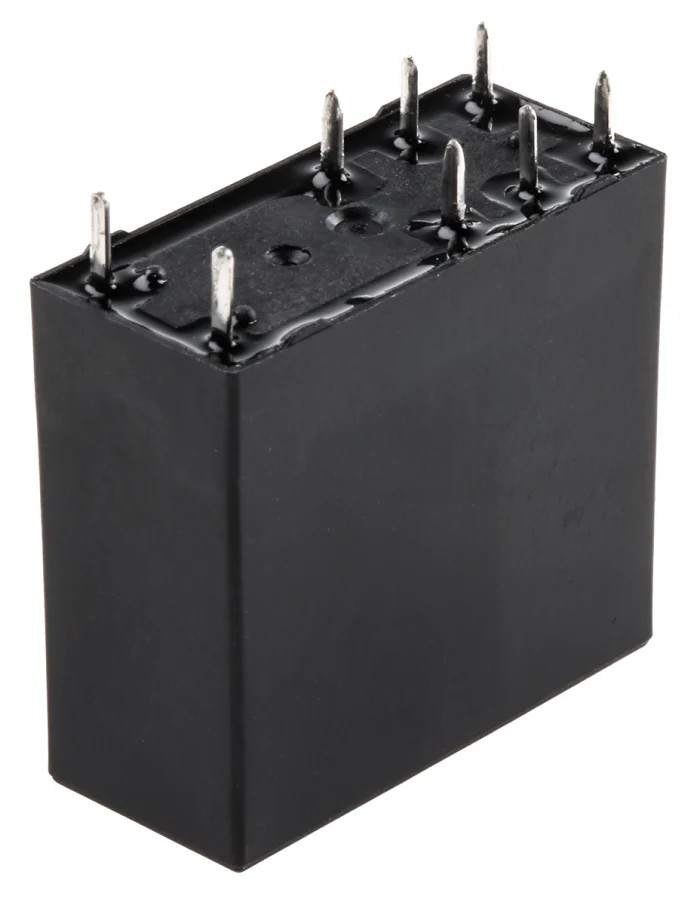

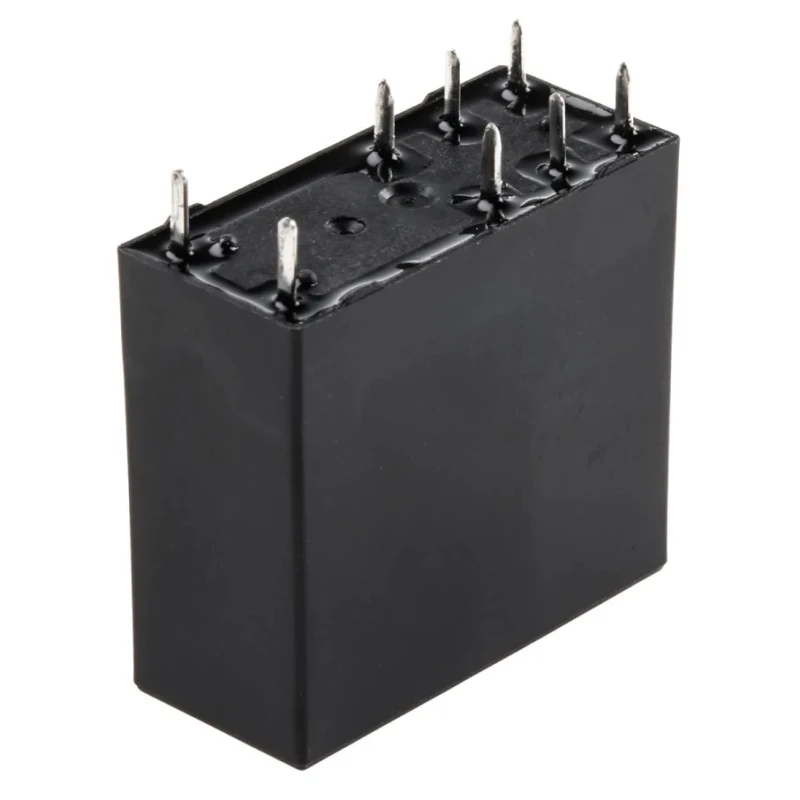

RS PRO PCB Power Relay 12V DC Coil 20A Switching Current SPDT 8004505P
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Height | 26.5mm |
| Length | 29mm |
| Model | 8004505P |
| Width | 13mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | RS PRO |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 20A |
| Terminal type | Solder |
| Contacts | 1 Form C, SPDT |
| Standards/Approvals | CQC, UR |
| Coil Resistance | 275Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 277V ac |
| Coil Power | 530mW |
Key Features
- Designed for mounting on PCBs with solder terminals for easy integration.
- Supports switching DC voltage up to 30V and AC voltage up to 277V.
- Operates reliably between -40°C and 85°C with 530mW coil power consumption.
- Constructed with durable silver alloy contacts and rated for 2.5 kVA switching power.
- Miniature high power relay with 4 kV dielectric strength between coil and contacts.
- Compliant with international standards including UL, TUV, CQC, and UR approvals.
- Ideal for electrical, automation, and control applications in industrial, commercial, and manufacturing environments.
Product Description
RS PRO 8004505P is a miniature PCB mount power relay with a 12V DC coil designed for high power switching applications. It supports a switching current of 20A with SPDT contact configuration, making it suitable for controlling a variety of electrical circuits.
The relay features solder terminals mounted on a printed circuit board for secure and reliable connections. It achieves a switching power rating of 2.5 kVA and switching AC voltage up to 277V, allowing for robust operation in demanding environments.
With operating temperature range from -40°C to 85°C, this relay is engineered for reliability under diverse industrial conditions. Its silver alloy contacts ensure superior conductivity and longevity, while coil power consumption remains low at 530mW for efficient energy use.

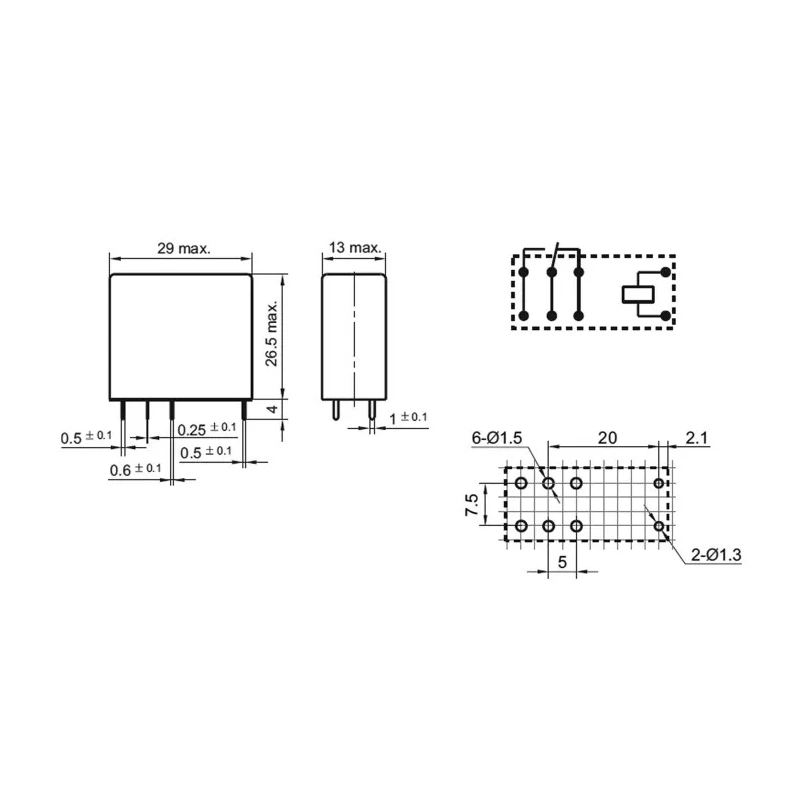

Compact size with dimensions 29mm (L) x 13mm (W) x 26.5mm (H) allows integration into space-constrained systems. The device exhibits 4 kV dielectric strength between coil and contacts providing enhanced safety and performance.
This RS PRO power relay is certified under international standards with UL, TUV, CQC, and UR approvals, validating quality and compliance. Typical use cases include electrical control panels, automation systems, HVAC controls, manufacturing machinery, and industrial equipment.
Designed for reliable PCB mounting with solder terminals. Supports high current switching of 20A with 12V DC coil voltage. Compact and robust construction with silver alloy contacts. Wide operating temperature range suitable for industrial uses.
Meets multiple international safety and quality certifications. Provides efficient switching power up to 2.5 kVA and voltages of 30V DC and 277V AC. Ideal for control and automation in industrial and commercial environments.
Explore more RS PRO Power Relays and related electrical components on EnvMart for optimized industrial automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The RS PRO PCB Power Relay has a switching current rating of 20A.
This power relay operates with a coil voltage of 12V DC.
The dimensions of this relay are 29mm in length, 13mm in width, and 26.5mm in height.
It supports a maximum switching AC voltage of 277V.
This model features a single pole double throw (SPDT) contact configuration.
The relay operates reliably within a temperature range of -40°C to 85°C.
It can switch DC voltage up to 30V.
The coil power consumption is 530mW.
The contacts are constructed from silver alloy, ensuring good conductivity and longevity.
This model is compliant with international standards including CQC and UR approvals.
It is designed for PCB mounting with solder terminals for secure connections.
The relay exhibits a dielectric strength of 4 kV between the coil and contacts.
