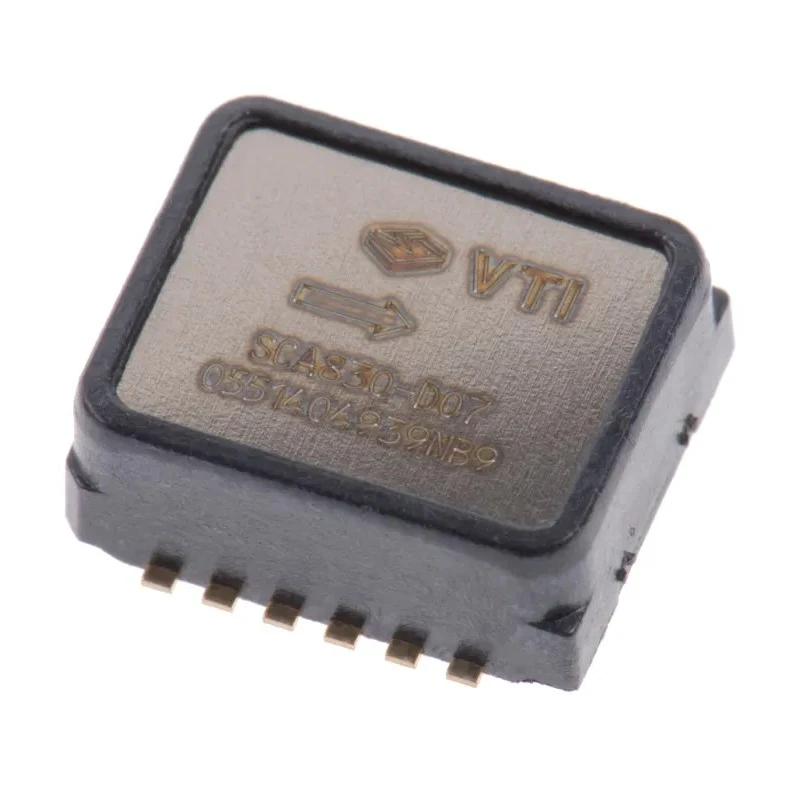

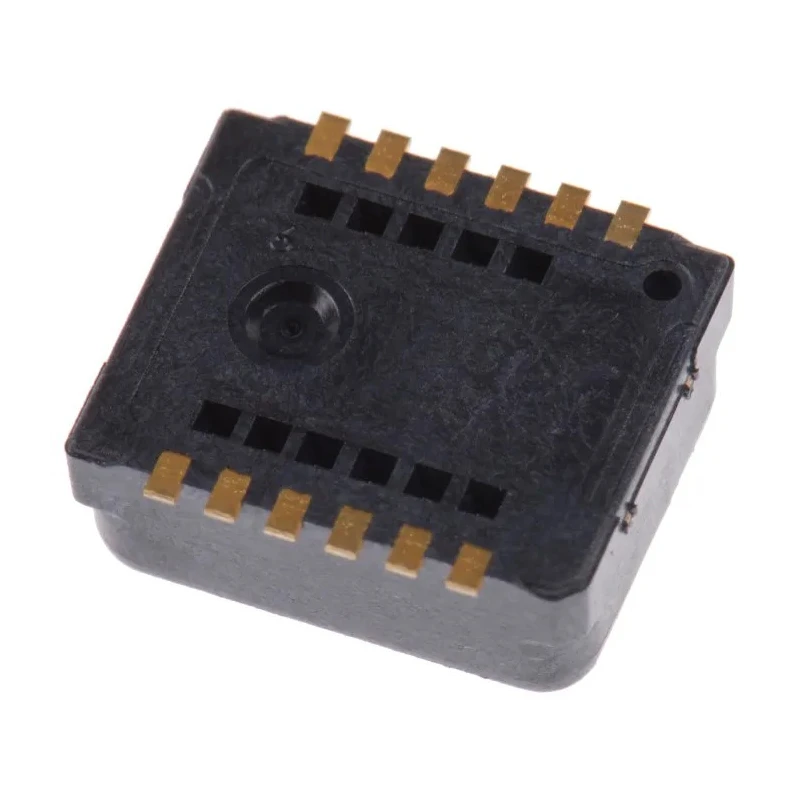

Murata 1 Axis Digital Surface Inclinometer 3 V to 3.6 V SPI Interface Surface Mount 12-Pin SCA830-D07-004

Free Delivery in India | Lowest Global Shipping Charges

Murata 1 Axis Digital Surface Inclinometer 3 V to 3.6 V SPI Interface Surface Mount 12-Pin SCA830-D07-004

Name: Murata 1 Axis Digital Surface Inclinometer 3 V to 3.6 V SPI Interface Surface Mount 12-Pin SCA830-D07-004
Brand: Murata
SKU: 372979
Price: 74.55 USD
Availability: InStock



Category Electronic Components Brand Murata Condition New

Specifications

Country of Origin	Finland
Brand	Murata
Height	3.3mm
Length	8.6mm
Model	SCA830-D07-004
SENSITIVITY	32000Counts/g
Technology	Digital
Sensor Type	Inclinometer Sensors
Width	7mm
Mount Type	Surface
Series	SCA800
Maximum Operating Temperature	125°C
Package Type	Surface Mount
Minimum Operating Temperature	-40°C
Number of axis	1
Interface Type	SPI
Standards/Approvals	ELV, RoHS
Pin Count	12
Automotive Standard	AEC-Q100
Maximum Supply Voltage	3.6V
Minimum Supply Voltage	3V
Supply Current	5mA
Maximum Frequency Response	6.25Hz

Key Features

Operates from 3 V to 3.6 V supply voltage ensuring low power consumption.
Features 12-pin surface mount package suitable for compact PCB integration.
Provides digital output with a maximum frequency response of 6.25 Hz for real-time measurements.
Sensors are designed to operate reliably between -40°C and 125°C for industrial environments.
Sensitivity of 32000 Counts/g facilitates accurate detection of minute angular changes.
Complies with ELV and RoHS standards ensuring environmental safety.
Includes automotive standard qualification AEC-Q100 for enhanced durability and reliability.
Compact dimensions of 8.6 mm length, 7 mm width, and 3.3 mm height for space-constrained applications.

Product Description

Murata SCA830-D07-004 is a high-precision 1 Axis Digital Surface Inclinometer, designed for industrial and automotive applications requiring reliable tilt angle measurement. It operates within a supply voltage range of 3 V to 3.6 V and features an SPI digital interface allowing seamless integration into modern control and monitoring systems.

The inclinometer's compact 12-pin surface mount package measures 8.6 mm in length, 7 mm in width, and 3.3 mm in height, making it suitable for applications where space is limited. Its digital technology enables sensitive tilt detection with a sensitivity of 32000 Counts/g and a frequency response up to 6.25 Hz, supporting dynamic measurement scenarios.

The device is engineered for robust operation across demanding temperature ranges from -40°C up to 125°C, meeting ELV and RoHS compliance for environmental safety. It also meets the stringent automotive standard AEC-Q100, affirming its suitability for vehicular electronics.

Its low 5 mA supply current ensures minimal power consumption, ideal for battery-operated and energy-conscious systems. This inclinometer is widely used in industrial machinery, automation equipment, robotics, and automotive control systems to provide precise angular position feedback.

Operates on a 3 V to 3.6 V supply voltage. SPI digital interface for real-time data transmission. Compact 12-pin surface mount package design. Temperature operation range from -40°C to 125°C. High sensitivity of 32000 Counts/g for accurate tilt measurements.

Compliance with ELV, RoHS, and AEC-Q100 automotive standards. Compact dimensions of 8.6 mm × 7 mm × 3.3 mm. Low supply current of 5 mA for efficient power use. Manufactured in Finland with strict quality control.

Murata products are known for their innovation and reliability in sensor technologies. This inclinometer is an excellent choice for industrial, automotive, and embedded systems requiring accurate tilt angle sensing. Browse Murata and related sensor ICs on EnvMart for more technical components and accessories.
