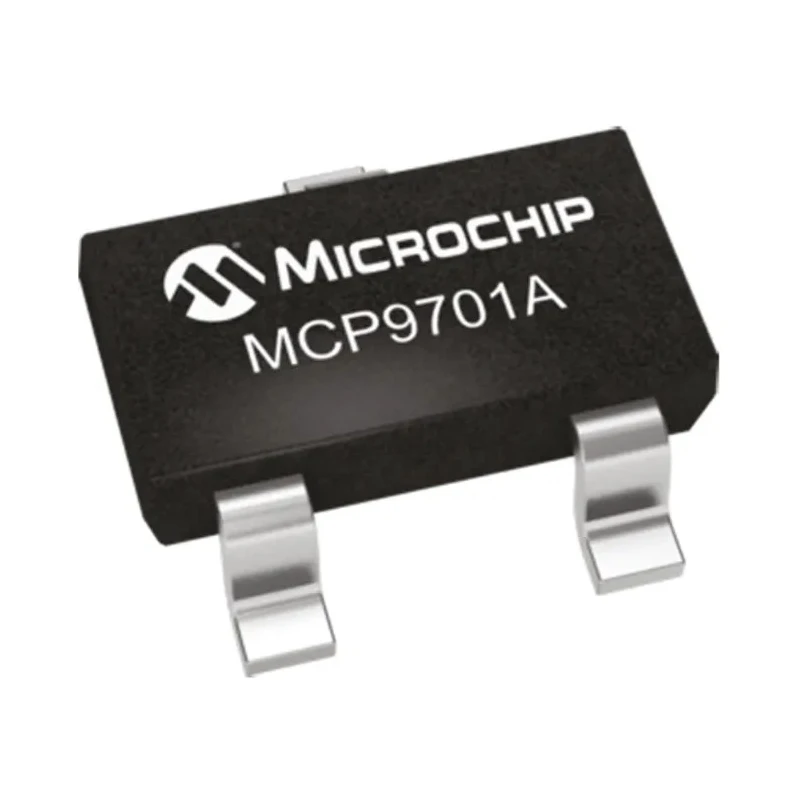

Microchip Voltage Output Temperature Sensor, Analogue, Surface Mount, ±2°C Accuracy, 3-Pin SOT-23 MCP9701AT
Specifications
| Country of Origin | Thailand |
|---|---|
| Accuracy | ±2°C |
| Brand | Microchip |
| Height | 1.02mm |
| Length | 3.05mm |
| Model | MCP9701AT |
| Width | 1.4mm |
| Mount Type | Surface |
| Output type | Voltage |
| Series | MCP9701AT |
| Maximum Operating Temperature | 125°C |
| Package Type | SOT-23 |
| Sub Type | Temperature Sensor |
| Minimum Operating Temperature | -40°C |
| Interface Type | Analogue |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 738-7058PBrand: MicrochipManufacturers Part No.: MCP9701AT-E/TT |
| Pin Count | 3 |
| Maximum Supply Voltage | 3.1V |
| Minimum Supply Voltage | 5.5V |
| Sensor Gain | 19.5mV/°C |
Key Features
- The sensor is surface mountable in a compact 3-Pin SOT-23 package.
- It operates over a temperature range from -40°C to 125°C.
- Minimum supply voltage is 3.1V and maximum supply voltage is 5.5V.
- Sensor gain is 19.5mV per degree Celsius, facilitating precise temperature measurement.
- The device is resistant to parasitic capacitance and capable of driving large capacitive loads.
- Typical applications include temperature monitoring in office equipment, home appliances, entertainment systems, hard disk drives, and battery packs.
- The compact dimensions are 3.05mm length, 1.4mm width, and 1.02mm height.
- Manufactured in Thailand, the product is suitable for industrial and consumer electronics temperature sensing needs.
Product Description
Microchip MCP9701AT Voltage Output Voltage Temperature Sensor is an analogue sensor IC designed for precise temperature measurement. It comes in a space-saving 3-Pin SOT-23 surface-mount package, measuring 3.05mm in length, 1.4mm in width, and 1.02mm in height, suitable for compact electronic designs.
Operating over a temperature range of -40°C to 125°C and supply voltages of 3.1V to 5.5V, this sensor features an accuracy of ±2°C and a gain of 19.5mV/°C. The device offers excellent resistance to parasitic capacitance and can drive large capacitive loads without performance degradation.
This voltage temperature sensor is ideal for various applications including temperature monitoring in office equipment, home appliances, entertainment systems, hard disk drives, battery packs, and other devices requiring reliable temperature sensing.
Manufactured in Thailand, the MCP9701AT provides a robust solution for analogue temperature measurement in industrial, commercial, and consumer electronics settings. Its small form factor ensures easy integration in modern electronic circuits.
The sensor delivers stable and accurate temperature-to-voltage conversion. Its analogue interface simplifies integration with microcontrollers and data acquisition systems. Designed to withstand parasitic effects, it ensures reliable readings in challenging environments.
The surface-mount SOT-23 package supports automated PCB assembly processes. Suitable for temperature monitoring applications requiring moderate accuracy and compact size. Explore our extensive range of temperature and humidity sensor ICs at EnvMart for reliable and efficient sensing solutions.
Explore more products in our Temperature & Humidity Sensor ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates over a temperature range from -40°C to 125°C.
The accuracy of this temperature sensor is ±2°C.
The minimum supply voltage is 3.1V and the maximum supply voltage is 5.5V.
The sensor gain is 19.5mV per degree Celsius, facilitating precise temperature measurements.
This unit provides a voltage output for temperature measurements.
The dimensions are 3.05mm in length, 1.4mm in width, and 1.02mm in height.
It comes in a compact 3-Pin SOT-23 surface mount package.
Typical applications include temperature monitoring in office equipment, home appliances, entertainment systems, hard disk drives, and battery packs.
This model is capable of driving large capacitive loads without performance degradation due to its resistance to parasitic capacitance.
The MCP9701AT is manufactured in Thailand.
It uses an analogue interface for temperature measurement.
This temperature sensor has 3 pins.
