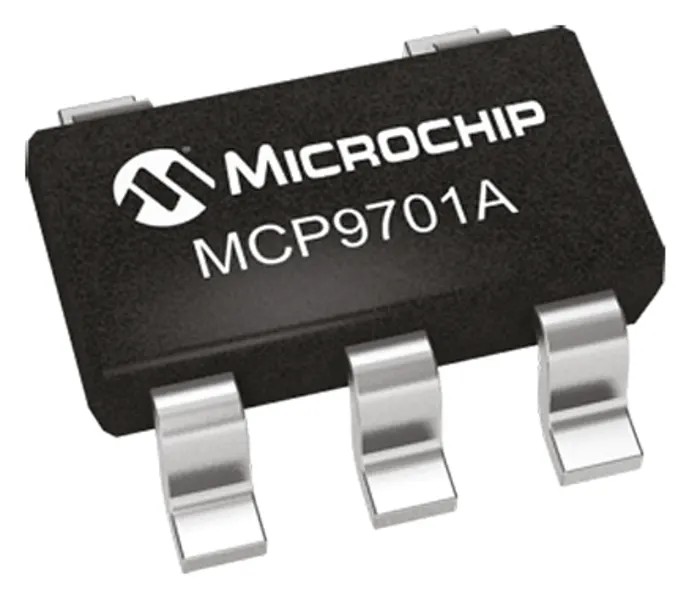

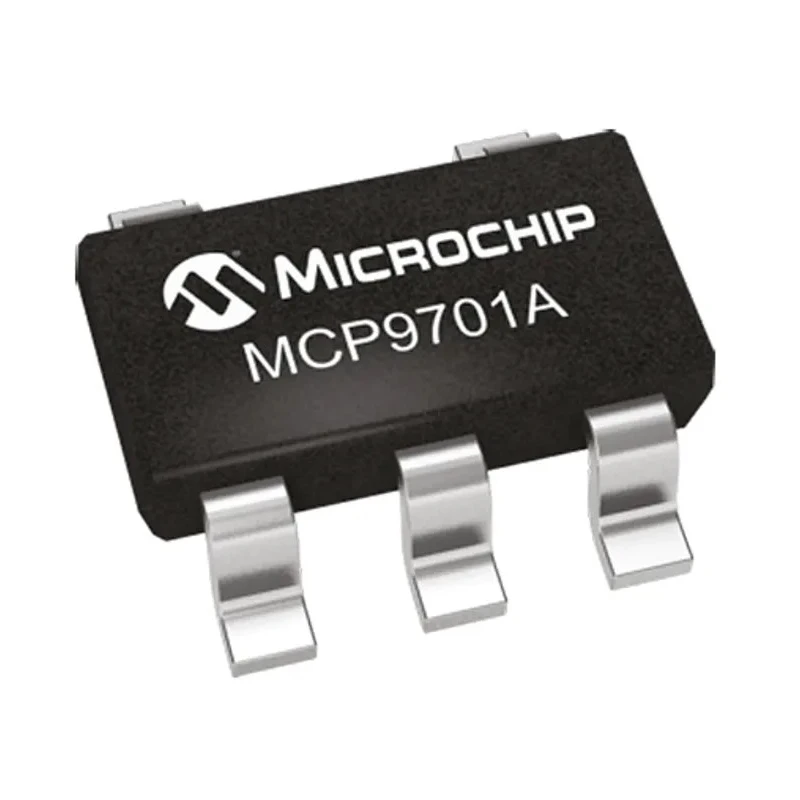

Microchip MCP9701AT Series Voltage Output Temperature Sensor Surface Mount 5-Pin SC-70 MCP9701AT
Specifications
| Country of Origin | Thailand |
|---|---|
| Accuracy | ±1°C |
| Brand | Microchip |
| Height | 1mm |
| Length | 2.2mm |
| Model | MCP9701AT |
| Width | 1.35mm |
| Mount Type | Surface |
| Output type | Voltage |
| Series | MCP9701AT |
| Maximum Operating Temperature | 125°C |
| Package Type | SC-70 |
| Sub Type | Temperature Sensor |
| Minimum Operating Temperature | -10°C |
| Interface Type | Analogue |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 738-7054Brand: MicrochipManufacturers Part No.: MCP9701AT-E/LTDistrelec Article No.: 304-45-506 |
| Pin Count | 5 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 3.1V |
| Sensor Gain | 19.5mV/°C |
Key Features
- The sensor provides an analogue voltage output directly proportional to temperature.
- Operating temperature range extends from -10°C to 125°C.
- Designed for surface mount installation with a compact 1.35mm width and 2.2mm length.
- Operates at supply voltages between 3.1V and 5.5V.
- High sensor gain of 19.5mV/°C allows accurate and responsive temperature sensing.
- Suitable for temperature monitoring in consumer electronics and industrial applications.
- Robust against parasitic capacitance and capable of driving large capacitive loads.
- Compact SC-70 package facilitates integration in space-constrained circuits.
Product Description
Microchip MCP9701AT is a high-precision voltage output temperature sensor in a 5-pin surface mount SC-70 package. It delivers ±1°C accuracy over a -10°C to 125°C operating temperature range, making it ideal for various temperature monitoring applications in office equipment, home appliances, and industrial systems.
The sensor's analogue output voltage is linearly proportional to temperature changes, with a gain of 19.5mV/°C, which ensures high fidelity signal output resistant to noise and parasitic effects. It operates reliably at supply voltages from 3.1V up to 5.5V.
The compact dimensions (length 2.2mm, width 1.35mm, height 1mm) of the SC-70 package make it suitable for densely packed circuit boards. It is engineered for surface mount applications, simplifying automated assembly processes.
Microchip MCP9701AT's robust design allows it to drive large capacitive loads, making it adaptable for integration into consumer electronics, battery packs, entertainment systems, and hard disk drives.
The sensor originates from Thailand, ensuring adherence to strict manufacturing quality standards. This reliable temperature sensor IC is widely employed in industrial, commercial, and laboratory environments requiring accurate temperature measurement and monitoring.
The sensor provides an analogue voltage output directly proportional to temperature. Operating temperature range extends from -10°C to 125°C. Designed for surface mount installation with a compact 1.35mm width and 2.2mm length.
Operates at supply voltages between 3.1V and 5.5V. High sensor gain of 19.5mV/°C allows accurate and responsive temperature sensing. Suitable for temperature monitoring in consumer electronics and industrial applications.
Robust against parasitic capacitance and capable of driving large capacitive loads. Compact SC-70 package facilitates integration in space-constrained circuits. Thailand origin ensuring quality manufacturing standards. Explore more Microchip Sensor ICs and temperature sensors within EnvMart's extensive catalog for your next electronic design or industrial control system.
Explore more products in our Temperature & Humidity Sensor ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The MCP9701AT operates within a temperature range of -10°C to 125°C.
This model has an accuracy of ±1°C over its operating temperature range.
It provides an analogue voltage output that is directly proportional to temperature.
The sensor gain is 19.5mV/°C, allowing for accurate and responsive temperature sensing.
It operates at supply voltages ranging from 3.1V to 5.5V.
The sensor has a length of 2.2mm, a width of 1.35mm, and a height of 1mm.
This model features a 5-pin configuration.
It is packaged in a compact SC-70 surface mount package.
Yes, it is designed to be robust against parasitic capacitance and can drive large capacitive loads.
It is suitable for temperature monitoring in consumer electronics, battery packs, entertainment systems, and industrial applications.
The sensor originates from Thailand, ensuring adherence to strict manufacturing quality standards.
The interface type is analogue, which allows for straightforward integration into various systems.
