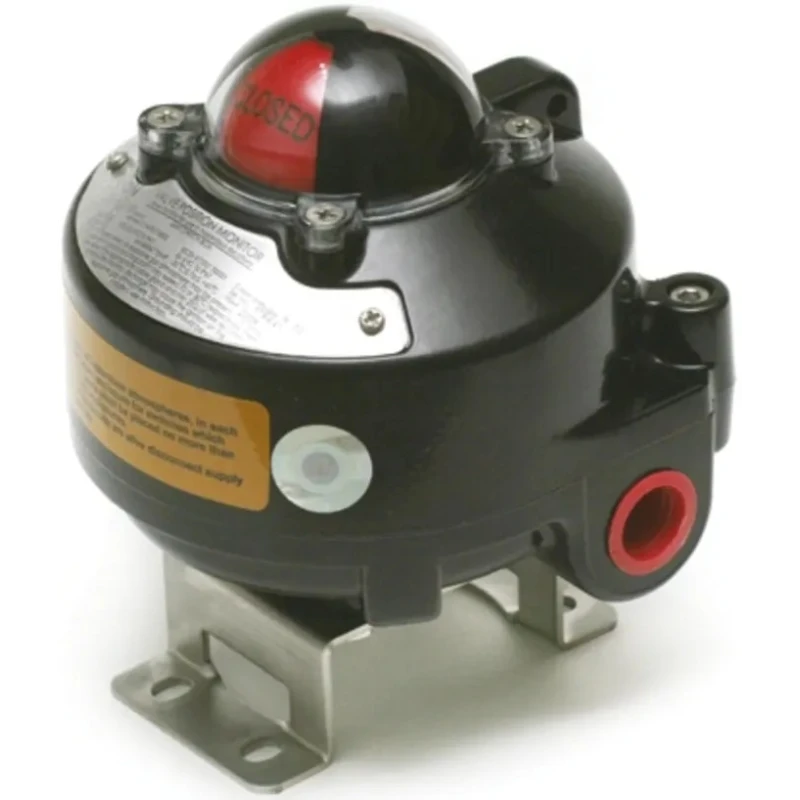

RS PRO Switch Box SPDT IP67 Aluminium Housing 250V AC 16A IP67

RS PRO IP67 Switch Box SPDT, model IP67, is a high-quality switch box featuring a durable die cast aluminium housing with polyester powder coating for enhanced corrosion resistance. It is rated IP67, offering excellent protection against water and dust, ideal for harsh industrial and automation environments.

This switch box contains two SPDT mechanical limit switches capable of handling switching currents of 16A and voltages up to 250V AC and DC. The unit accommodates dual M20 conduit entries, with options for PG13.5, 3/4 inch NPT, and M25, facilitating easy cable connection.

The device operates reliably within an ambient temperature range of -20°C to +60°C and a maximum operating temperature of 80°C. Its stainless steel shaft combined with spring loaded splined cams allows tool-free adjustment, enhancing maintenance convenience. Captive cover bolts and a threaded screw down cover ensure secure installation and maintain hazardous area compliance with ATEX certification Atex IIG Eexia IIC T6.

The RS PRO switch box is suitable for a wide range of industrial applications, including automation systems, electrical installations, and manufacturing processes that require precise limit and position switching with robust environmental protection.

The enclosure is made of die cast aluminium with a polyester powder coating in black. Rated with IP67 protection ensuring high resistance to dust and water ingress. Equipped with two SPDT, mechanical limit switches for reliable position indication.

Supports switching current up to 16A and voltage up to 250V AC or DC. Features dual M20 conduit entries with additional options available. Includes stainless steel shaft and spring loaded splined cams adjustable without tools.

Designed for operating temperature range from -20°C to 80°C with ambient range up to +60°C. Certified for hazardous areas with ATEX certification rated Atex IIG Eexia IIC T6. Compact and solid design with captive cover bolts and threaded screw down cover ensuring IIC rating.

This product is manufactured in the United Kingdom, reflecting adherence to quality and safety standards suitable for industrial and commercial electrical installations. Explore more in the Limit Switch category at EnvMart for comprehensive automation and electrical component solutions.
