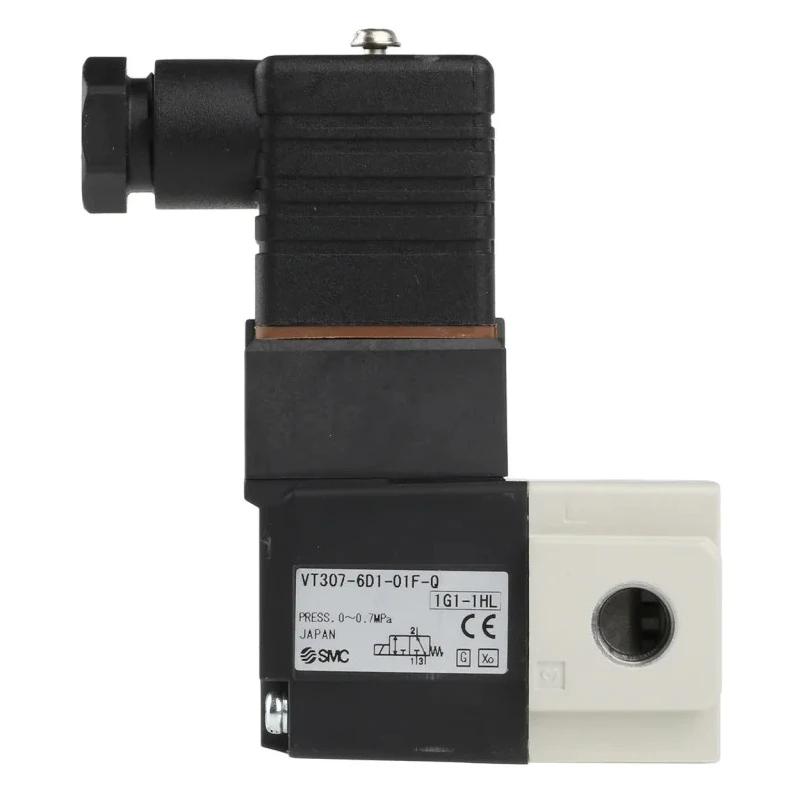

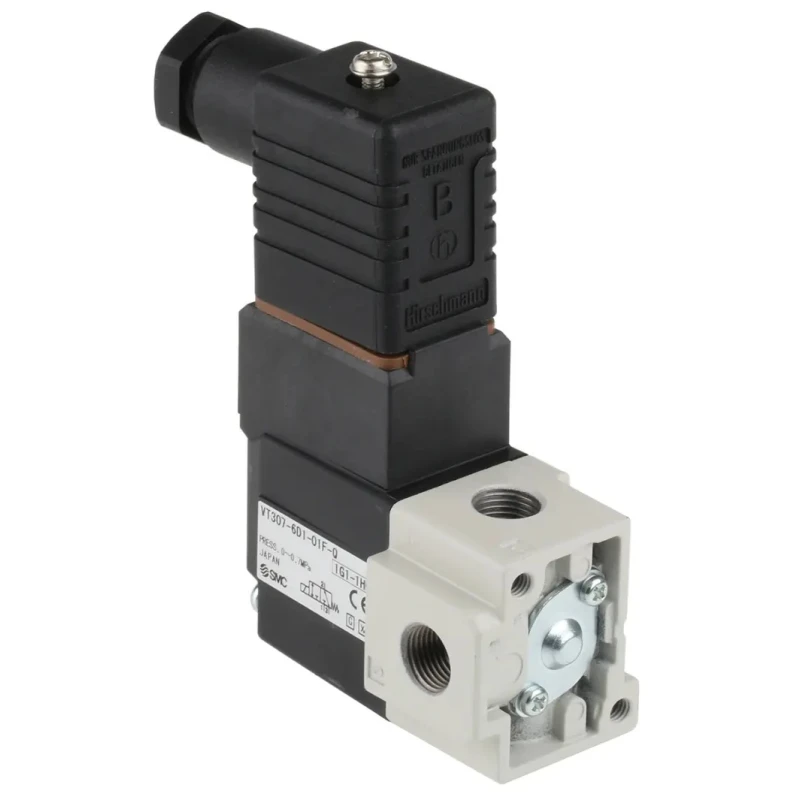

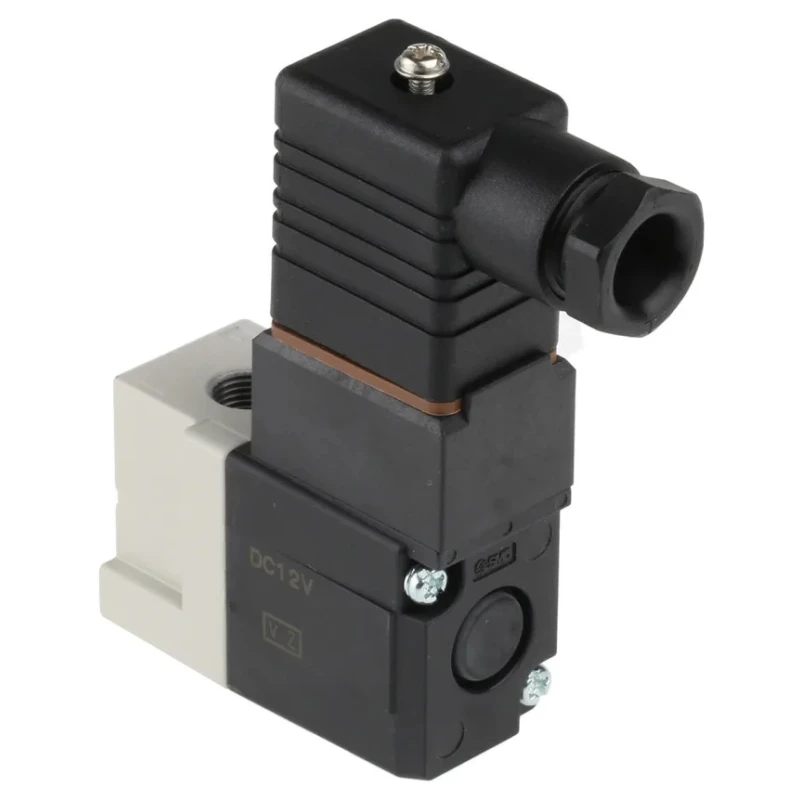

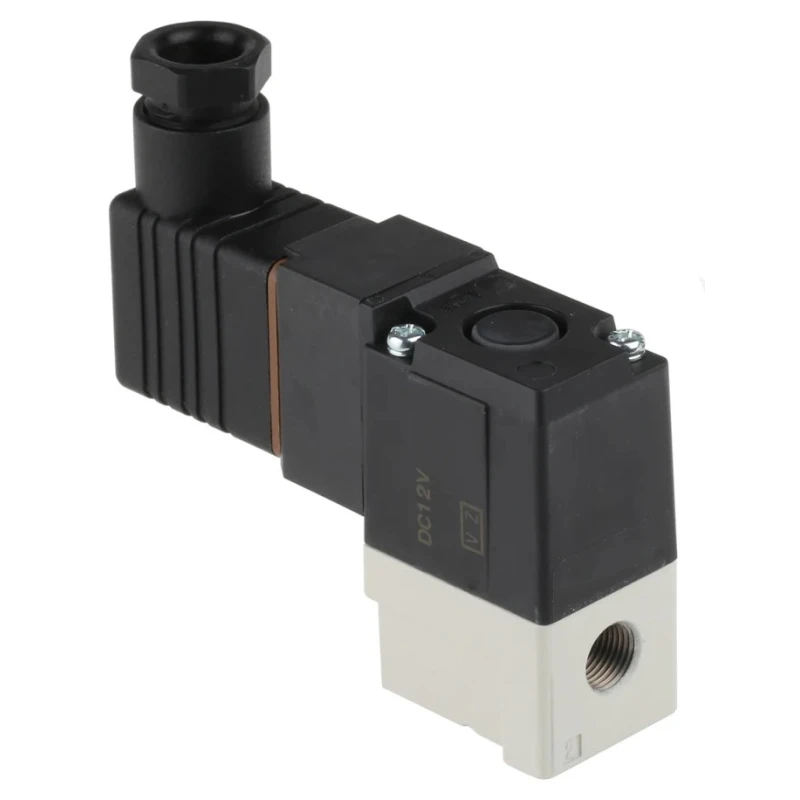

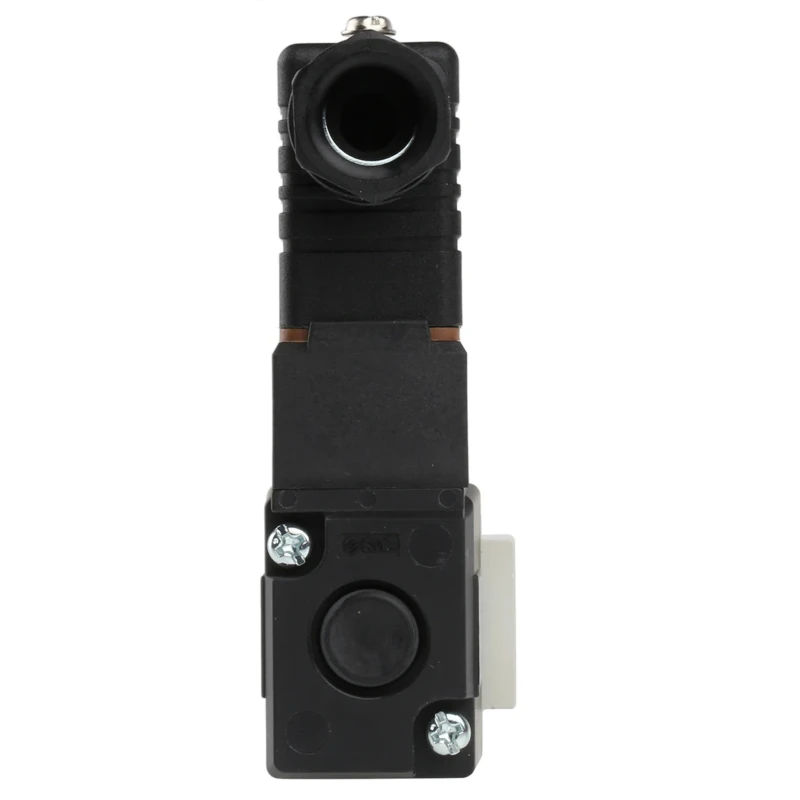

SMC Pneumatic Solenoid Valve 3/2 Solenoid G 1/8 Threaded Port Manifold Mount 12V DC 4.2W VT307-6D1-01F-Q
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 12V dc |
| Brand | SMC |
| Body Material | Die Cast Aluminium |
| Maximum Operating Pressure | 0.7 Mpa |
| Height | 84mm |
| Length | 77.6mm |
| Model | VT307-6D1-01F-Q |
| Width | 25.6mm |
| Mount Type | Manifold |
| Series | VT |
| Number Of Ports | 3 |
| Maximum Operating Temperature | 50°C |
| Port Type | Threaded |
| Number of Positions | 3 |
| Port Size | 1/8 in |
| Seal Material | Hydrogenated Nitrile Rubber |
| Minimum Operating Temperature | -10°C |
| Actuation Type | Solenoid |
| Maximum Flow Rate | 187L/min |
| Standards/Approvals | CE, RoHS |
| Connection Thread Standard | G 1/8 |
| Mount Pattern | DIN |
| Minimum Pilot Pressure | 0MPa |
| Valve Function | 3/2 |
| Electrical Connection Type | DIN Connector |
| Maximum Pilot Pressure | 1MPa |
| Solenoid Type | Single |
| Port Gender | Female |
| Solenoid Power Consumption | 4.2W |
| SMC Pneumatic Solenoid Valve - 3/2 Solenoid G 1/8 VT Series 24V dcBrand | SMC |
Key Features
- The valve features a die cast aluminium body with hydrogenated nitrile rubber seals for durability and chemical resistance.
- It operates with a maximum pressure of 0.7 MPa and a maximum flow rate of 187 liters per minute.
- The valve supports a temperature range from -10°C to 50°C, suitable for various industrial environments.
- Equipped with a DIN connector for electrical connection and a manual push-type override for easy control.
- It offers interchangeable porting and can be converted from normally closed to normally open operation.
- Compliant with CE and RoHS standards, designed and manufactured in Japan.
- The valve’s unrestricted mounting orientation and dust-proof enclosure improve installation flexibility and reliability.
Product Description
SMC VT307-6D1-01F-Q is a high-performance pneumatic solenoid valve that belongs to the VT series, designed to provide reliable directional control in pneumatic systems. With its 3/2 port configuration and G 1/8 threading, it allows straightforward manifold mounting and integration into pneumatic automation setups.
The valve body is constructed from die cast aluminium, ensuring durability while maintaining a lightweight form. The use of hydrogenated nitrile rubber seals enhances chemical resistance and longevity under various operating conditions.
Operating voltage is 12V DC with a low solenoid power consumption of 4.2W, promoting energy efficiency. It supports a maximum operating pressure of 0.7 MPa and has a flow capacity reaching up to 187 liters per minute, making it suitable for demanding industrial applications.
The electrical interface employs a DIN connector in line with standard pneumatic solenoid designs, and the valve includes a non-locking manual override button for safety and maintenance operations. Its unrestricted mounting orientation and dust-proof enclosure make it versatile and reliable in industrial, laboratory, HVAC, manufacturing, water treatment, and pneumatic automation applications.
This valve can be easily swapped within existing installations due to its universal porting type and includes an inverting function plate that allows changing from normally closed to normally open operation without removing the valve.
Certified with CE and RoHS compliance, the VT307-6D1-01F-Q model is manufactured in Japan, ensuring high quality and performance consistency. Set contains one Pneumatic Solenoid Valve with specifications as stated. Explore more pneumatic components and solenoid valves at EnvMart to complement your industrial automation needs.
Die cast aluminium valve body provides robustness and lightweight design. Hydrogenated nitrile rubber seals for chemical and wear resistance. Manual override feature for safer maintenance and control. Designed for manifold mounting with G 1/8 threaded ports.
Energy-efficient 12V DC solenoid coil with low power consumption. Unrestricted mounting orientation with dust-proof enclosure for longevity. CE and RoHS certified, manufactured in Japan.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of the SMC VT307-6D1-01F-Q solenoid valve is 0.7 MPa.
This model has a maximum flow rate of 187 liters per minute.
The dimensions of this solenoid valve are 84 mm in height, 77.6 mm in length, and 25.6 mm in width.
It uses a DIN connector for electrical connection.
The operating voltage for this valve is 12V DC.
This valve operates within a temperature range of -10°C to 50°C.
The valve features a die cast aluminium body and hydrogenated nitrile rubber seals.
Yes, the valve has an unrestricted mounting orientation, allowing for flexible installation.
The valve functions as a 3/2 solenoid valve, allowing for directional control in pneumatic systems.
Yes, it is compliant with CE and RoHS standards.
The solenoid power consumption is 4.2W.
The valve has a port size of 1/8 inch with a threaded port type (G 1/8).
