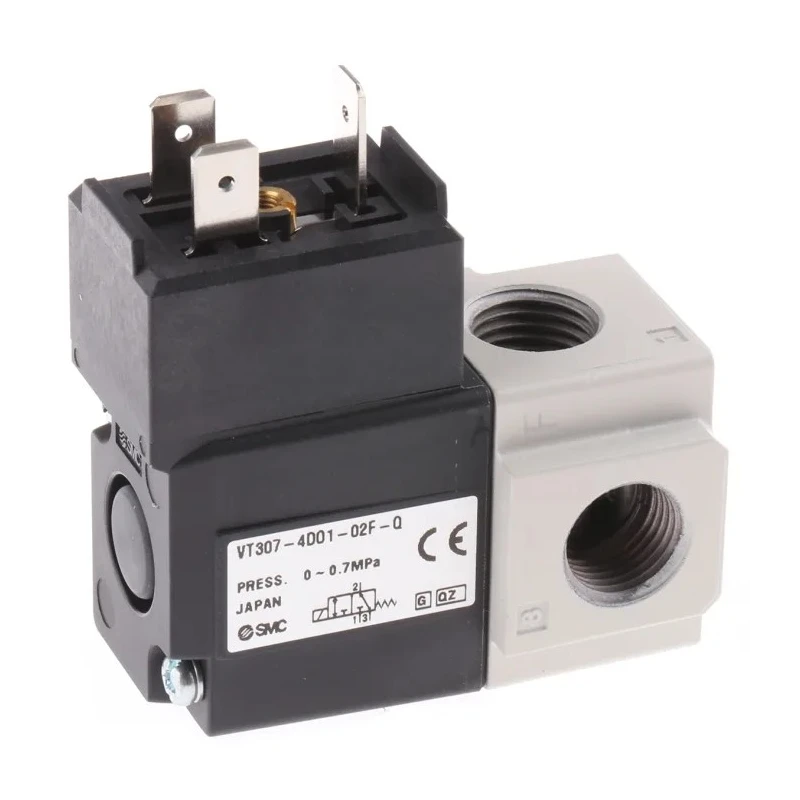

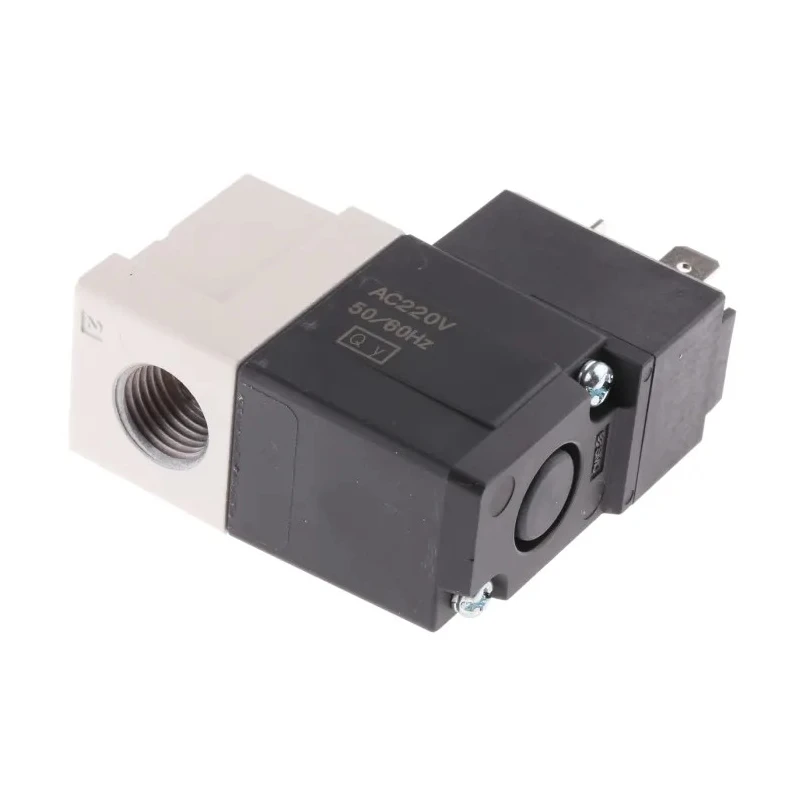

SMC Pneumatic Solenoid Valve 3/2 Solenoid G VT Series 220V AC Die Cast Aluminium VT307-4DO1-02F-Q

SMC VT307-4DO1-02F-Q Pneumatic Solenoid Valve 3/2 Solenoid G VT Series 220V AC with die cast aluminium body delivers high precision and energy-saving pneumatic control solutions. This manifold-mounted valve is designed for industrial use in processes requiring reliable actuation and flow control.

The valve features a 3-port, 3-position configuration that supports multiple functions such as normally open, normally closed, divider valve, and selector valve. The single solenoid actuation type consumes only 4.2W, ensuring reduced power use without compromising performance. Its body ported design, with G-threaded female ports of size 1/4 inch, provides universal and interchangeable porting for flexible installation.

Operable under a maximum pressure of 0.7 MPa and capable of handling flow rates up to 187 L/min, the VT307 series is suitable for diverse pneumatic applications including blow-off valves, pressure release valves, and both single and double-acting cylinder drives. The body is made from durable die cast aluminium and uses hydrogenated nitrile rubber seals for excellent wear and chemical resistance.

Mounting is manifold with DIN pattern conformity and allows unrestricted orientation. The valve includes a push-type manual override that is non-locking for manual control. The electrical connection uses a DIN connector with IP65 protection, ensuring dust-proof operation suitable for industrial environments. The valve operates efficiently within temperatures ranging from -10°C to 50°C.

SMC’s VT307 series valves comply with CE and RoHS standards reflecting internationally recognized quality and safety credentials. Manufactured in Japan, this valve is built for laboratory, manufacturing, automation, and industrial pneumatic system integration.

This valve features a 3-port 3-position configuration suitable for various pneumatic control applications. It uses a single solenoid type with solenoid power consumption of 4.2W for energy-efficient operation. The valve supports a maximum operating pressure of 0.7 MPa and maximum flow rate of 187 L/min.

Equipped with Hydrogenated Nitrile Rubber seals and DIN connector electrical connection type for durable performance. Designed for ambient temperatures from -10°C to 50°C with a mount pattern conforming to DIN standard. Body ported with universal porting type and female G-threaded port connections sized 1/4 inch.

This direct-acting solenoid valve offers interchangeable mounting orientation and push type manual override. Ideal for blow-off valves, pressure release valves, cylinder drives, divider and selector valves in industrial pneumatic systems.

Complies with CE and RoHS standards ensuring reliable and compliant use in pneumatic valve applications. Explore the variety of Pneumatic Solenoid Valves and components on EnvMart for your industrial and manufacturing system needs.
