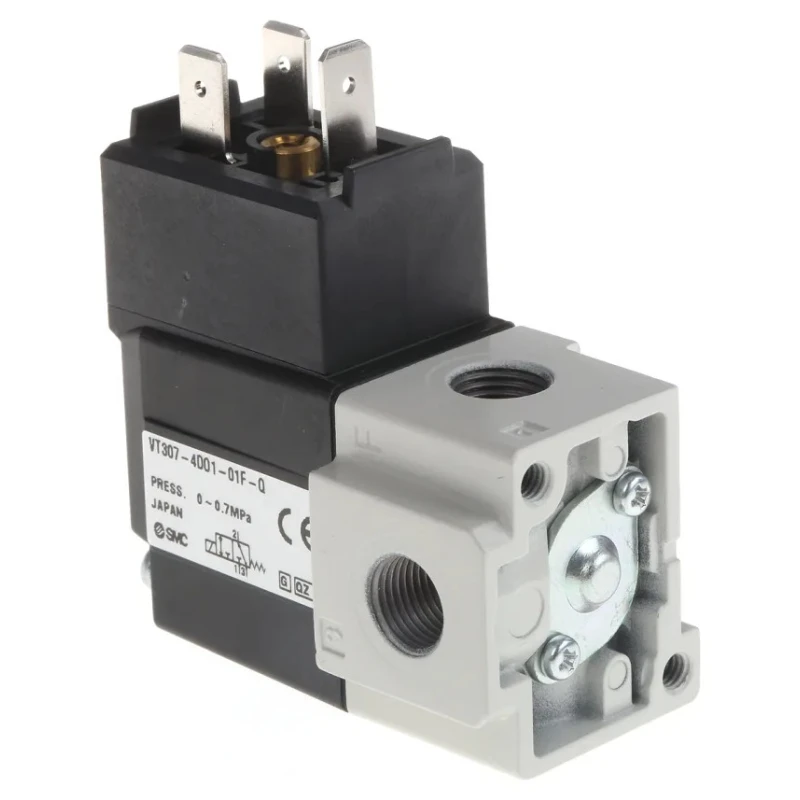

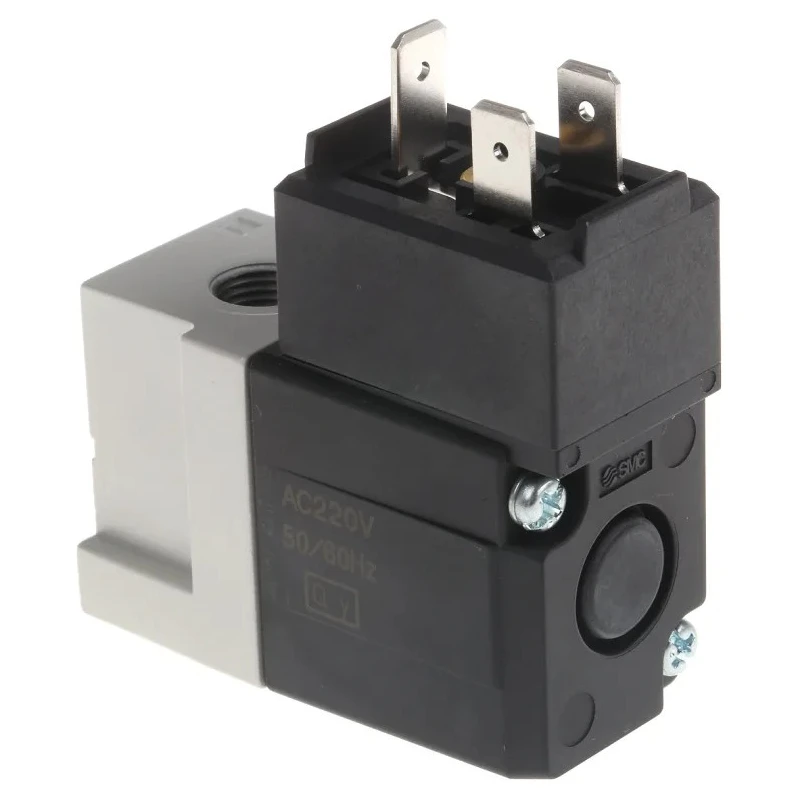

SMC Pneumatic Solenoid Valve 3/2 NC Solenoid G 1/8 Threaded Port, 220V AC, 4.2W Power, Die Cast Aluminium VT307-4DO1-01F-Q

SMC VT307-4DO1-01F-Q Pneumatic Solenoid Valve 3/2 NC with G 1/8 threaded ports operates at 220V AC with a solenoid power consumption of 4.2W. This valve features a die cast aluminium body combined with hydrogenated nitrile rubber seals to ensure reliable performance and durability in industrial pneumatic systems.

Its 3-port, 3-position design offers precise pneumatic control suitable for manifold mounting with a DIN pattern. The valve supports a maximum operating pressure of 0.7 MPa and a maximum pilot pressure of 1 MPa, making it ideal for use in pressure release valves, blow-off valves, single acting cylinder drives, divider valves, and double acting cylinder drives.

This compact valve has dimensions of 84 mm in height, 77.6 mm in length, and 25.6 mm in width. It includes a DIN connector with IP65 protection, ensuring dust proofing and electrical safety. The valve supports various functions such as Normally Open (N/O), Normally Closed (N/C), Divider valve, and Selector valve, and can be easily converted from N/C to N/O by inverting the function plate.

The device allows unrestricted mounting orientation and comes with a non-locking push type manual override for ease of operation.

SMC VT307 series valves offer enhanced energy efficiency with reduced power consumption compared to previous models and include voltage surge suppression features. These valves are well-suited for diverse industrial, manufacturing, laboratory, and HVAC pneumatic applications.

This valve features a 3/2 normally closed configuration for reliable pneumatic control. Operates efficiently on 220V AC voltage with a solenoid power consumption of 4.2W. Body made of die cast aluminium ensures strength and longevity in industrial use.

Supports a maximum operating pressure of 0.7 MPa and maximum flow rate of 187 L/min. Designed for manifold mount with DIN mounting pattern for seamless integration. Incorporates hydrogenated nitrile rubber seals for durability and tight sealing.

Compact size with dimensions 84 mm height, 77.6 mm length, and 25.6 mm width. Suitable for diverse applications including blow-off valves, pressure release valves, and cylinder drives. Features a dust-proof enclosure and IP65 protection via the DIN 43650 electrical connector.

Allows unrestricted mounting orientation and manual override with non-locking push type. Explore more SMC pneumatic valves and components in our Industrial Valves category at EnvMart for robust and reliable fluid power solutions.
