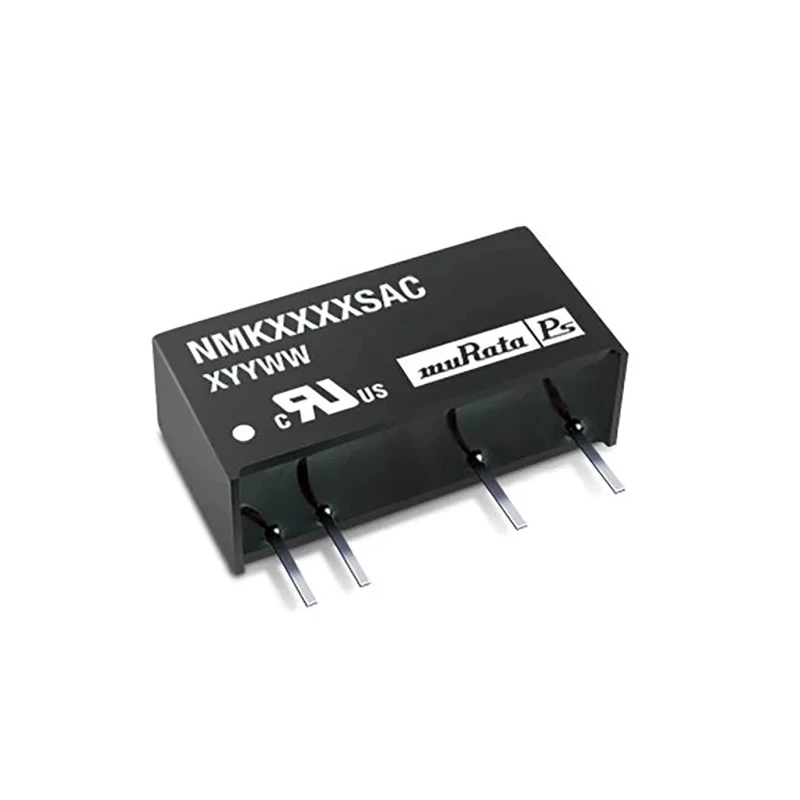

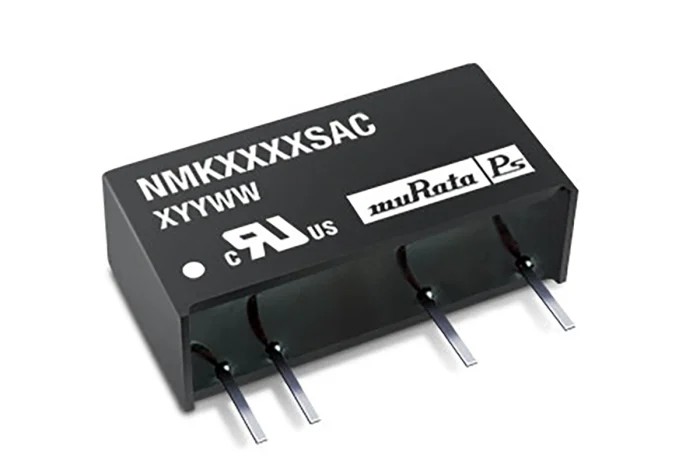

Murata Power Solutions NMK 2W SIP Unregulated Isolated DC/DC Converter Through Hole 12V DC Output 167mA 21.6 to NMK2412SAC
Specifications
| Country of Origin | China |
|---|---|
| Voltage | Converters / DC-DC Converters Murata Power Solutions NMK DC/DC Converter, 12V dc |
| Brand | Murata Power Solutions |
| Efficiency | 88% |
| Length | 19.65mm |
| Model | NMK2412SAC |
| Depth | 10.15mm |
| Gross Weight | 2.8g |
| Width | 19.6mm |
| Mount Type | Through Hole |
| Series | NMK |
| Maximum Operating Temperature | 85°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 1 |
| Ripple and Noise | 86mV Pk-Pk |
| Maximum Output Power | 2W |
| Maximum Input Voltage | 26.4V dc |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 21.6V |
| Number of Pins | 4 |
| Output Voltage 1 | 12V dc |
| Output Current 1 | 167mA |
| Isolation Voltage | 3kV dc |
| Output Current 2 | 200mA |
| Output Voltage 2 | 5V |
Key Features
- Provides 12V DC output voltage and 167mA output current with additional 5V output options.
- Designed for through hole mounting in an industry standard DIP package.
- Operates between 21.6V minimum and 26.4V maximum input voltage range.
- Features high 88% efficiency and low ripple and noise at 86mV peak-to-peak.
- Fully encapsulated construction ensures reliability in industrial temperature ranges from -40°C to 85°C.
- Offers 3kV DC isolation voltage and meets RoHS environmental compliance.
- Weighs only 2.8 grams, suitable for compact power supply applications.
- Utilizes toroidal magnetics without electrolytic or tantalum capacitors for longevity.
Product Description
Murata Power Solutions NMK2412SAC is a 2W SIP single-output unregulated isolated DC/DC converter designed to deliver reliable power conversion in a compact through-hole form factor. It operates with an input voltage range of 21.6V to 26.4V DC and outputs a nominal 12V DC at 167mA, delivering a maximum output power of 2 watts. This converter is engineered with a robust encapsulated design, toroidal magnetics, and no electrolytic or tantalum capacitors, ensuring longevity and stable operation from -40°C to 85°C operating temperature.
The NMK series enhances power density to 1.31W/cm³ and boasts an efficiency of 88%, suitable for industrial temperature ranges and harsh environments. It includes features such as 3kV DC isolation for secure electrical separation and a standard DIP package for easy integration into printed circuit boards. The footprint and pin configuration adhere to industry standards, allowing straightforward replacement or upgrade paths.
Additional design benefits include low ripple and noise (86mV peak-to-peak) and full RoHS compliance, emphasizing environmental safety. This power module is ideal for applications in industrial automation, laboratory instruments, communications equipment, embedded systems, and other critical electronics requiring stable isolated DC power.
Provides 12V DC output voltage and 167mA output current with additional 5V output options. Designed for through hole mounting in an industry standard DIP package. Operates between 21.6V minimum and 26.4V maximum input voltage range.
Features high 88% efficiency and low ripple and noise at 86mV peak-to-peak. Fully encapsulated construction ensures reliability in industrial temperature ranges from -40°C to 85°C. Offers 3kV DC isolation voltage and meets RoHS environmental compliance.
Compact dimensions: 19.65mm length, 19.6mm width, and 10.15mm depth. Weighs only 2.8 grams, suitable for compact power supply applications. Utilizes toroidal magnetics without electrolytic or tantalum capacitors for longevity.
Suitable for industrial, laboratory, telecom, and embedded system power supply uses.
Explore more DC/DC Converters and power supply solutions within the Electronics & Electricals category at EnvMart to find optimum components for your engineering and manufacturing requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a nominal output voltage of 12V DC and an output current of 167mA.
The NMK2412SAC operates within an input voltage range of 21.6V to 26.4V DC.
It features an efficiency rating of 88%.
The dimensions of the NMK2412SAC are 19.65mm in length, 19.6mm in width, and 10.15mm in depth.
This unit offers an isolation voltage of 3kV DC.
The maximum operating temperature for this model is 85°C.
It is designed for through hole mounting in a standard DIP package.
The ripple and noise is specified at 86mV peak-to-peak.
In addition to the 12V output, it also provides an additional 5V output option with a maximum current of 200mA.
This converter is suitable for applications in industrial automation, laboratory instruments, communications equipment, and embedded systems.
This model weighs only 2.8 grams, making it suitable for compact power supply applications.
Yes, it meets RoHS environmental compliance standards.
