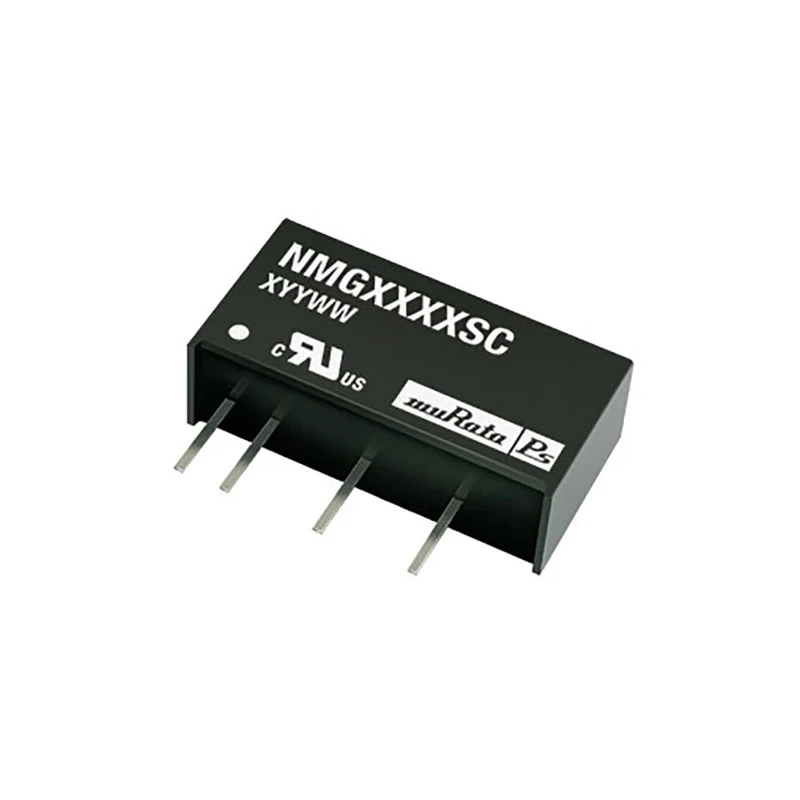

Murata Power Solutions DC/DC Converter 15V DC Output 133mA 16.5V DC Max Input 13.5V Min Input 2W Power Through NMG1515SC

Murata Power Solutions NMG1515SC is a high-efficiency DC/DC converter designed to provide a stable 15V DC output at a current of 133mA with an input voltage range of 13.5V to 16.5V DC. This compact 2W power supply module utilizes a through hole DIP package for robust mounting and reliable electrical performance.

This DC/DC converter series is specifically engineered to provide galvanic isolation with a 1kV DC isolation voltage, allowing system designers to safely generate isolated negative rails from positive rails where needed. It is suitable for applications requiring reliable power conversion within an ambient temperature range from -40°C to 85°C, making it versatile for industrial, electronic, and embedded systems.

The device features a low ripple and noise rating of 40mV peak-to-peak, which supports sensitive electronic loads. Efficiency is rated at 88%, ensuring minimal power loss and improved thermal performance. Its high MTBF rating of 3.9 million hours attests to its longevity and dependability in demanding environments.

The DIP package’s compact form factor, with dimensions of 19.65 mm by 19.65 mm and a depth of 10.15 mm, along with a lightweight of 2.8 grams, facilitates integration into densely packed circuits. The design includes fully encapsulated construction and internal surface mount components, enhancing durability and reducing external component requirements.

Typical applications for this converter include industrial controls, power supply modules, instrumentation, telecommunications, and embedded electronic circuits requiring isolated power rails. Its pin compatibility with related Murata series allows for ease of upgrade and replacement.

This converter provides galvanic isolation with 1 kV DC isolation voltage. Operating temperature range from -40°C to 85°C supports various industrial environments. Compact DIP through hole package eases installation and replacement.

High conversion efficiency of 88% reduces energy loss and heat generation. Low ripple and noise of 40mV peak to peak facilitates clean output voltage. Robust MTBF of 3.9 million hours ensures long-term reliability. Fully encapsulated design with internal SMD technology improves durability.

The Murata Power Solutions NMG1515SC DC/DC converter belongs to the NMG series, recognized for compact isolated converters with high reliability and efficiency. This product is compliant with RoHS standards, supporting environmentally friendly manufacturing practices.
