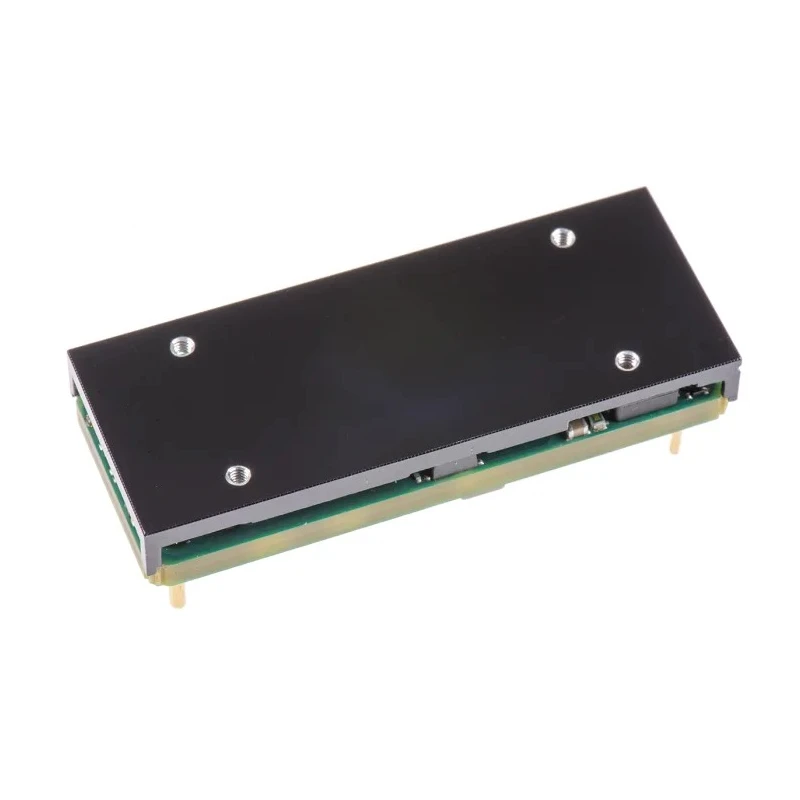

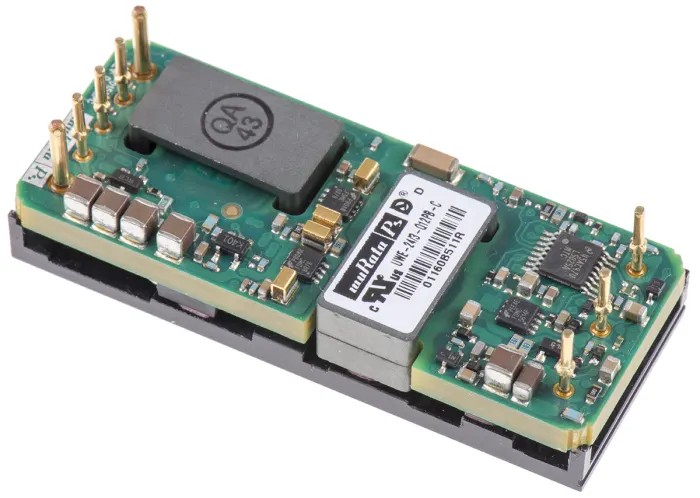

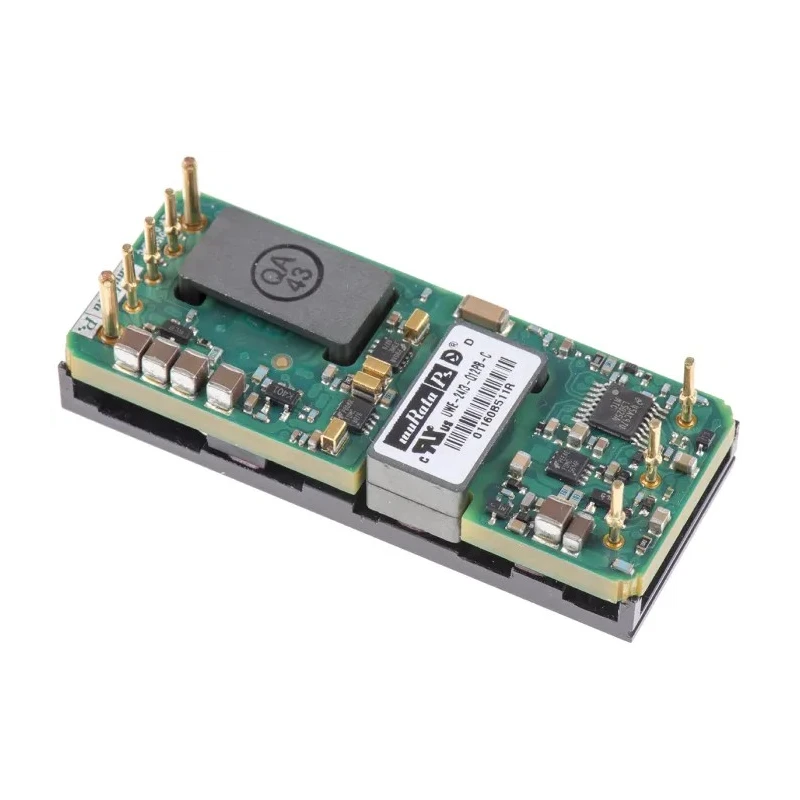

Murata Power Solutions UWE DC/DC Converter, 24V DC Output, 3A, 36V Maximum Input, 9V Minimum Input, 72W UWE-24/3-Q12PB-C
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Converters / DC-DC Converters Murata Power Solutions UWE DC/DC Converter, 24V dc |
| Brand | Murata Power Solutions |
| Efficiency | 89.5% |
| Length | 58.4mm |
| Model | UWE-24/3-Q12PB-C |
| Depth | 9.91mm |
| Gross Weight | 20g |
| Width | 22.9mm |
| Mount Type | Through Hole |
| Series | UWE |
| Maximum Operating Temperature | 85°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 1 |
| Ripple and Noise | 275mV Pk-Pk |
| Maximum Output Power | 72W |
| Maximum Input Voltage | 36V dc |
| Standards/Approvals | RoHS, UL/CSA 60950, IEC/EN 60950 |
| Minimum Input Voltage | 9V |
| Number of Pins | 8 |
| Output Voltage 1 | 24V dc |
| Output Current 1 | 3A |
| Isolation Voltage | 1.5kV dc |
| Wide 4 | 1 input power range |
Key Features
- Isolated DC/DC converter delivering 24V DC output at 3A with 72W power.
- Through-hole 8-pin DIP package for easy PCB integration.
- Wide input voltage range from 9V to 36V DC.
- High efficiency of 89.5% enables fanless operation.
- Low ripple and noise at 275mV peak-to-peak for stable output.
- Operating temperature from -40°C to 85°C for harsh environments.
- Includes on/off control, trim, remote sense, and protection features.
- 1.5kV DC isolation voltage for safe operation.
Product Description
Murata Power Solutions UWE-24/3-Q12PB-C is a high-performance DC/DC converter designed for industrial and electronic applications requiring regulated isolated power conversion. It delivers a stable 24V DC output at 3A with an input voltage range from 9V to 36V DC, supporting a maximum continuous output power of 72W.
This converter's isolated design with 1.5kV DC isolation ensures safety in sensitive electronic circuits and systems. Its through-hole DIP package with 8 pins allows straightforward mounting in printed circuit boards, catering to compact space requirements with dimensions of 58.4mm by 22.9mm by 9.91mm.
Featuring high efficiency of 89.5%, the converter limits heat dissipation enabling fanless operation, beneficial for maintenance-free reliability in telecommunications, battery-powered, and portable devices. Ripple and noise are tightly controlled at 275mV Pk-Pk to reduce interference and maintain signal integrity. It also possesses wide input power compatibility with 4:1 input ratio, enhancing flexibility in power source usage.
Further functionalities include on/off control, output voltage trimming, remote sensing, and protections against overload, overheating, and reverse output conduction, making it suitable for harsh industrial and commercial environments. The operating temperature range from -40°C to 85°C ensures dependable performance under extreme conditions.
Compliant with RoHS and UL/CSA 60950 and IEC/EN 60950 safety standards, this product suits applications in industrial automation, telecommunications, laboratory equipment, manufacturing, and power supply systems requiring compact, efficient, and reliable DC/DC conversion.
The converter integrates planar magnetics and heavy copper PCBs for durable, low noise operation. Its compact eighth-brick package fits industry standard quarter-brick pinouts. Synchronous rectification technology supports high efficiency and low power dissipation.
Stable no-load operation and fast load step response enhance control system performance. Meets EN55022 and CISPR22 class B electromagnetic interference standards with external filtering.
Choose Murata Power Solutions UWE-24/3-Q12PB-C for dependable power conversion in demanding applications. Browse our Electronics & Electricals category for comprehensive DC/DC Converter selections.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It provides a stable output voltage of 24V DC with a maximum output current of 3A.
This model supports a wide input voltage range from 9V to 36V DC.
The maximum continuous output power is 72W.
It has an efficiency rating of 89.5%, allowing for fanless operation.
The dimensions are 58.4mm in length, 22.9mm in width, and 9.91mm in depth.
It features a ripple and noise specification of 275mV peak-to-peak.
This model uses a through-hole mounting type, suitable for PCB integration.
It has an isolation voltage of 1.5kV DC, ensuring safe operation in sensitive applications.
It operates effectively in a temperature range from -40°C to 85°C.
It complies with RoHS, UL/CSA 60950, and IEC/EN 60950 safety standards.
It includes functionalities such as on/off control, output voltage trimming, remote sensing, and protection against overload and overheating.
The gross weight of this model is 20g.
