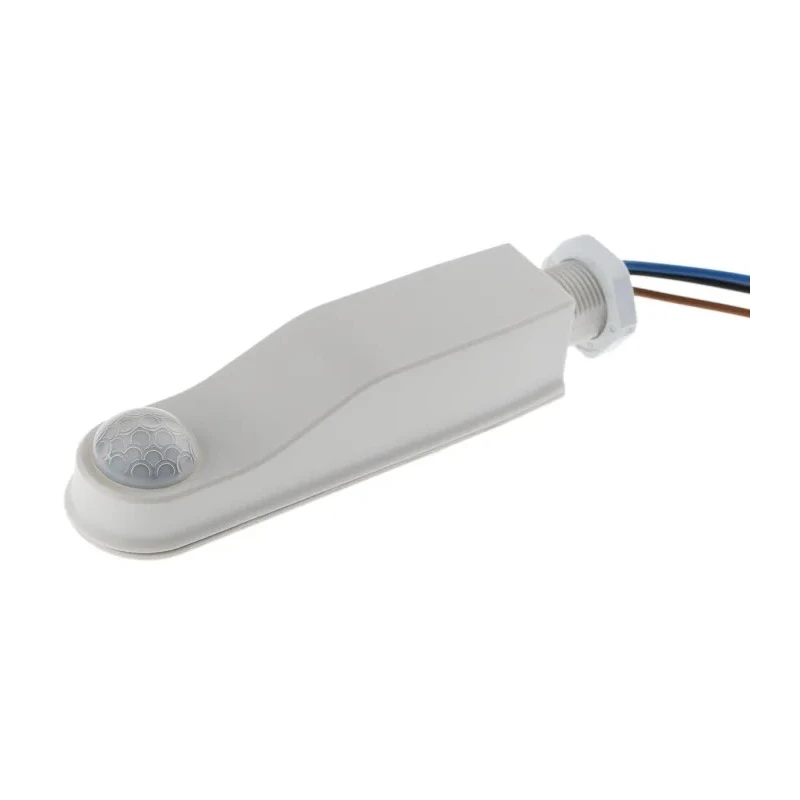

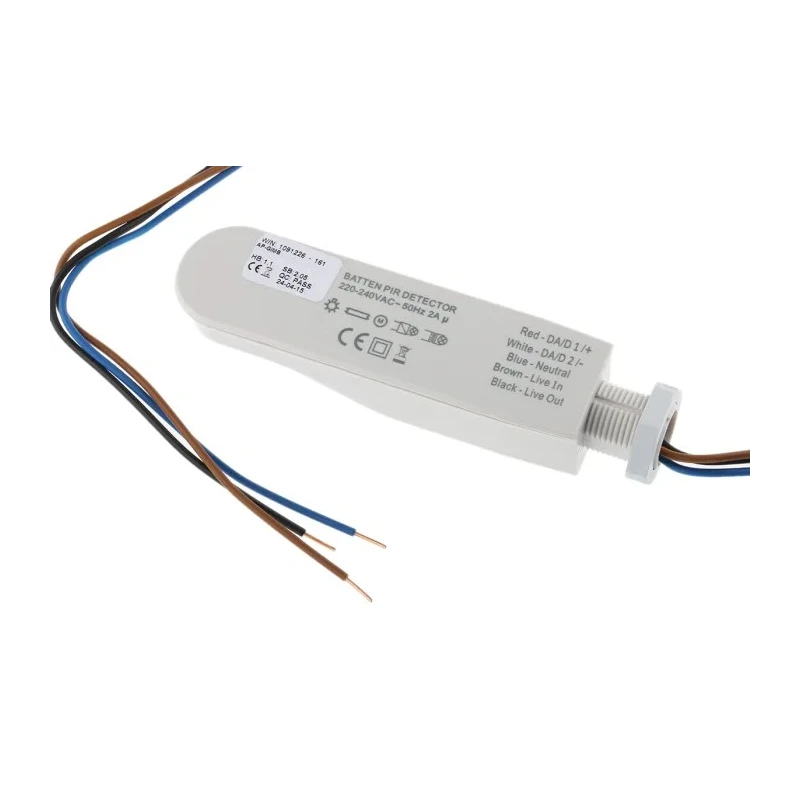

RS PRO Passive Infrared PIR Sensor 230V AC IP65 Polycarbonate Flame Retardant ABS 796-1993

RS PRO 796-1993 Passive Infrared PIR Sensor is a high-quality sensor designed for automated lighting control in industrial, commercial, and office environments. Operating at 230V AC with a power consumption of approximately 807 mW, it employs a passive infrared detector to sense presence and movement.

Specifically intended for ceiling mounting on batten-style luminaires, this miniature presence detector activates lighting when motion is detected and turns lights off after a 10-minute delay when the area is vacated, providing energy savings and convenience.

The device's casing is made from durable polycarbonate and flame retardant ABS, offering excellent resistance to environmental factors. With an IP65 rating, it is dust-tight and protected against water spray, ensuring reliable operation in a variety of conditions.

This presence detector complies with EMC-2004/108/EC for electromagnetic compatibility and is certified under LVD-2006/95/EC as a safe low-voltage appliance. It also meets ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 standards for electrostatic discharge protection, ensuring safety and reliability when installed near sensitive equipment.

The sensor features compact dimensions of 144 mm depth, 33 mm width, and 28 mm height, and is supplied with an assortment of fixing washers to facilitate secure mounting on different fixtures.

Commonly used in office buildings, warehouses, and other commercial buildings, the RS PRO 796-1993 PIR sensor enhances energy efficiency by automatically controlling lighting based on occupancy.

Equipped with a passive infrared detector for motion sensing. Designed for batten-style ceiling mounting. Switches lighting off after a 10-minute delay once area is clear. Durable polycarbonate and flame retardant ABS construction.

IP65-rated for protection against dust and water spray. Compliant with EMC and low-voltage safety standards. Meets electrostatic discharge protection standards (ANSI/ESD S20.20 and BS EN 61340-5-1). Compact size with multiple fixing washers included.

Operates at 230V AC, 50 Hz with low power consumption. Ideal for industrial, commercial, and office lighting control applications. Explore the RS PRO range for more industrial-grade sensors and electrical components on EnvMart.
