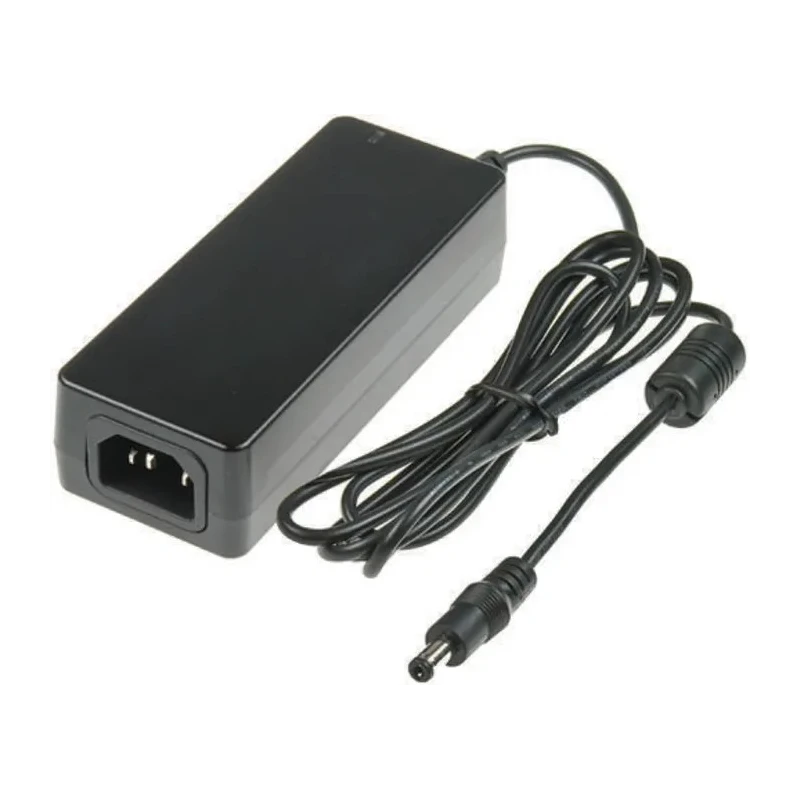

MEAN WELL AC/DC Adapter IEC 264V AC Output 4 A 15 V DC GSM60A15-P1J
Specifications
| Country of Origin | India |
|---|---|
| Brand | MEAN WELL |
| Model | GSM60A15-P1J |
| Cable Length | 1000mm |
| Approvals | UL / CUL / TUV / CB / FCC / CE |
| Overall Length | 125mm |
| Series | GSM60 |
| Overall Width | 50mm |
| Maximum Operating Temperature | 60°C |
| Plug Type | IEC |
| Maximum Input Voltage | 264V ac |
| Protections | Short circuit / Overload / Over voltage / Over temperature (for GSM60) |
| Maximum Output Current | 4A |
| Standards/Approvals | CE, IEC 60950-1, UL 60950-1 |
| Minimum Input Voltage | 100V ac |
| Overall Depth | 31.5mm |
| Minimum Output Voltage | 15V dc |
| Input Connector Type | IEC 320-C14 |
| MEAN WELL AC/DC AdapterBrand | Mean Well |
Key Features
- This desktop power supply features high efficiency and low power consumption.
- Complies with international medical safety regulations with low leakage current below 100 μA.
- Supports operating temperatures up to 60°C and has a cable length of 1000 mm.
- Equipped with multiple protections including short circuit, overload, over voltage, and over temperature.
- Designed with a UL94V-0 rated fully enclosed plastic case and class I power with earth pin.
- Meets ErP step 2 and EISA 2007 energy-saving standards.
- Includes approvals for UL, CUL, TUV, CB, FCC, and CE for global safety compliance.
- Features LED indicator for power status and optional lock type DC plug.
Product Description
MEAN WELL GSM60A15-P1J AC/DC Adapter is a desktop switch mode power supply designed for medical and industrial applications. It accepts a wide input voltage range from 100 to 264 VAC and provides a reliable 15 V DC output at 4 amps, making it suitable for equipment requiring stable power delivery and low leakage currents.
The adapter complies with international medical safety standards featuring two MOPP protection barriers, low leakage current below 100 μA, and meets ErP step 2 and EISA 2007 energy efficiency regulations. Its cooling is maintained via free air convection, supporting operating temperatures from -30 to +60°C.
Designed as a class I power unit with an earth ground pin and housed in a fully enclosed UL94V-0 rated plastic case, the adapter offers robust protection including short circuit, overload, over voltage, and temperature safeguards. Its IEC 320-C14 AC inlet and a 1000 mm cable length provide convenient connectivity.
This power supply is approved by UL, CUL, TUV, CB, FCC, and CE to ensure safety and compatibility across various regions. Optional lock type DC plug enhances secure connections. Its high efficiency (91%) and low no load power consumption (.
Explore more products in our AC/DC Adapters category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The MEAN WELL GSM60A15-P1J provides a stable output of 15 V DC at a maximum current of 4 A.
It accepts a wide input voltage range from 100 to 264 VAC.
This adapter includes protections against short circuit, overload, over voltage, and over temperature.
The overall dimensions of the GSM60A15-P1J are 125 mm in length, 50 mm in width, and 31.5 mm in depth.
The maximum operating temperature for this model is 60°C.
It uses an IEC 320-C14 input connector type.
Yes, it complies with international medical safety standards and features low leakage current below 100 μA.
The cable length of the GSM60A15-P1J is 1000 mm.
It has approvals from UL, CUL, TUV, CB, FCC, and CE for global safety compliance.
This adapter meets ErP step 2 and EISA 2007 energy-saving standards.
It belongs to the GSM60 series of power supplies.
The LED indicator shows the power status of the adapter.
