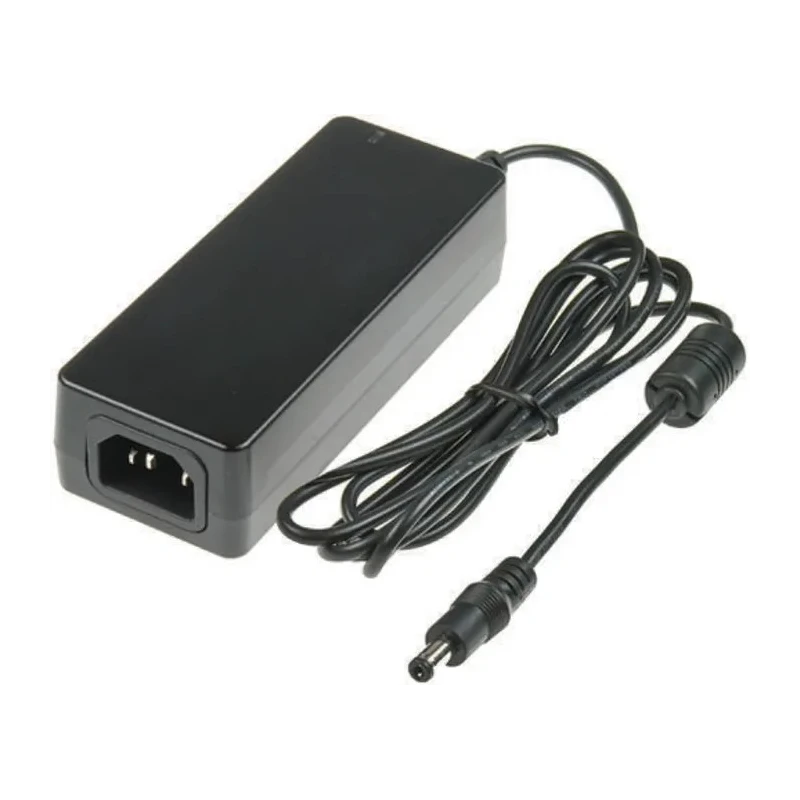

MEAN WELL AC/DC Adapter IEC Output 1.67 A, 24 V DC, 40W Medical GSM40A24-P1J

MEAN WELL GSM40A24-P1J AC/DC Adapter is a desktop power supply delivering 40 W with 24 V DC output and a maximum current of 1.67 A. Designed specifically for medical equipment, this adapter complies with stringent international medical safety standards, including ANSI/AAMI ES60601-1 and TUV EN60601-1.

Operating from a wide input voltage range of 80 to 264 VAC, it ensures stable and reliable power across various global power grids. The power supply features low leakage current below 100 µA and low no load power consumption under 0.1 W, making it ideal for patient-contact medical devices and energy-efficient applications compliant with ErP Step 2 (Level V) and EISA 2007 regulations.

The adapter incorporates multiple protective functions such as short circuit, overload, over voltage protection, and over temperature safety (specific for GSM60 models). Its durable UL94V-0 rated plastic casing and IEC 320-C14 AC inlet with earth ground pin provide excellent electrical safety and structural integrity.

Cool operation is ensured by free air convection without the need for fans, facilitating silent and maintenance-free operation. With an operating temperature range from -30°C to +60°C, it is suitable for a variety of industrial, laboratory, and medical environments.

Global certification from UL, CUL, TUV, CB, FCC, and CE marks confirm broad safety and electromagnetic compatibility, supporting deployment in international markets. The included LED power indicator adds user convenience and safety signaling.

This adapter features a full range input voltage from 80 to 264 VAC. It complies with medical safety standards including 2xMOPP and low leakage current below 100 µA. High efficiency at 91% and low no-load power consumption below 0.1 W help meet energy saving regulations.

The unit includes protections against short circuit, overload, over voltage, and over temperature. Compact desktop design with IEC 320-C14 3-pole AC inlet and enclosed UL94V-0 rated plastic case. Operating temperature range from -30 to +60°C suits demanding environments.

Global approvals encompass UL, CUL, TUV, CB, FCC, and CE certifications. LED indicator for power status enhances usability and safety. Three-year warranty ensures reliability for various medical and industrial uses.

This MEAN WELL AC/DC adapter GSM40A24-P1J series is ideal for medical, laboratory, industrial, and energy-conscious applications requiring reliable power delivery with comprehensive safety features.
