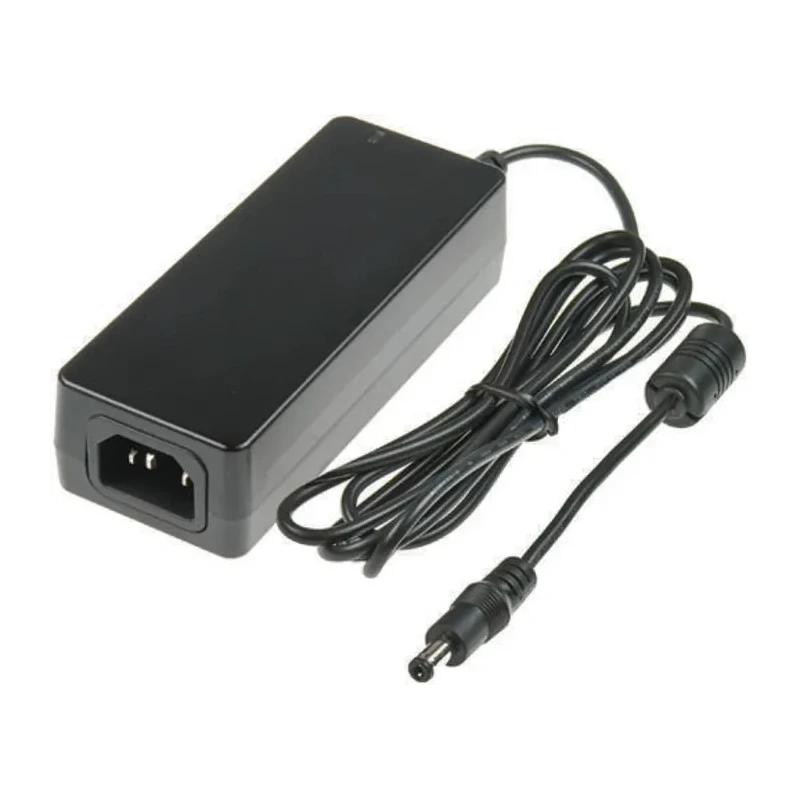

MEAN WELL AC/DC Adapter IEC Output 18 V dc 2.22 A 40W Medical Grade GSM40A18-P1J

MEAN WELL GSM40A18-P1J AC/DC Adapter IEC Output 18 V dc 2.22 A is a high-efficiency, medical grade power supply designed to meet stringent safety and energy regulations for medical and industrial use.

This desktop power supply features an IEC 320-C14 input connector and a 1500mm cable length allowing easy connection and flexibility in various installation environments.

The GSM40A18-P1J is built with a fully enclosed plastic case meeting UL94V-0 flammability standards and offers class I power safety with an earth ground pin ensuring user protection in sensitive applications.

It provides output power of 40W with a maximum output current of 2.22 A at 18 V dc, optimized for medical equipment requiring low leakage current below 100 μA and minimal no load power consumption less than 0.1W.

The power supply supports a wide input voltage range from 100 to 264 V ac, enabling compatibility with global electrical standards and has a maximum operating temperature rating of 60°C ensuring reliable performance across diverse settings.

This product complies with international medical safety standards including TUV EN 60601-1 and is certified by UL, CUL, TUV, CB, FCC, and CE. It fulfills energy efficiency regulations such as ErP Step 2 (Level V) and EISA 2007, making it suitable for environmentally conscious applications.

Key protections include short circuit, overload, over voltage, and over temperature safeguards enhancing durability and operational safety. Maximum output current is 2.22 A, suitable for low leakage medical applications.

Compact desktop power supply design with dimensions 125mm length, 50mm width, and 31.5mm depth. Features IEC 320-C14 input connector with 1500mm cable length for versatile use. Operates efficiently from 100 V ac minimum input voltage with maximum operating temperature of 60°C.

Complies with medical safety standards including TUV EN 60601-1 and multiple global certifications. Energy efficient with low no load power consumption less than 0.1 W and 91% high efficiency. Equipped with protections against short circuit, overload, over voltage, and over temperature (for GSM60 variant).

Fully enclosed plastic case rated UL94V-0 and class I power unit with earth ground pin. Suitable for medical equipment requiring low leakage current and meeting ErP Level V and EISA 2007 standards. 3 years warranty ensures reliable performance for medical, laboratory, and commercial applications.

This AC/DC adapter is ideal for use in medical equipment, laboratory instruments, industrial machines, and commercial devices requiring safe, efficient, and reliable power conversion.
