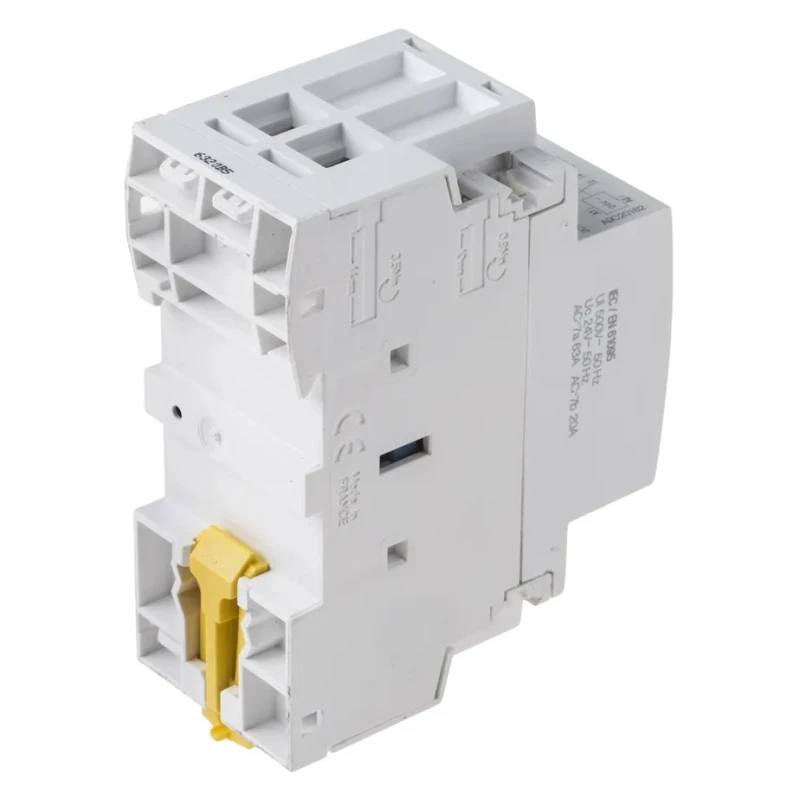

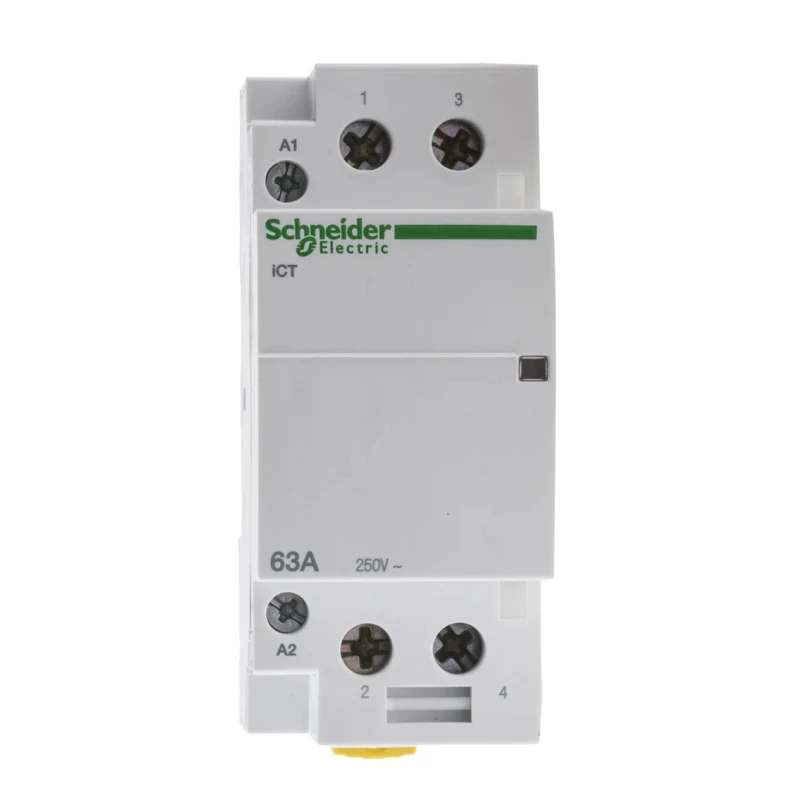

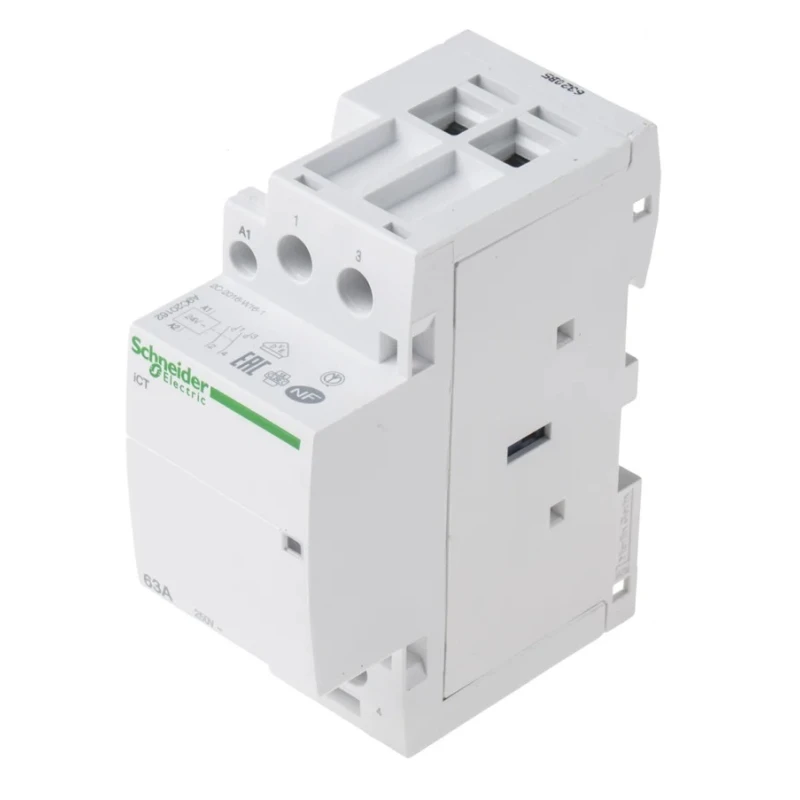

Schneider Electric Acti9 iCT Contactor with 24V AC Coil, 2-Pole, 63 A, 1.6 W Power Rating, 250V AC Contact Voltage Acti9

Name: Schneider Electric Acti9 iCT Contactor with 24V AC Coil, 2-Pole, 63 A, 1.6 W Power Rating, 250V AC Contact Voltage Acti9
Brand: Schneider Electric
SKU: 371274
Price: 215.46 USD
Availability: InStock



Category Contactors & Auxiliary Contacts Brand Schneider Electric Condition New

Specifications

Country of Origin	India
Brand	Schneider Electric
Function	Motor Control
Length	36mm
Model	Acti9
Depth	68mm
Width	85mm
Mount Type	DIN Rail
Series	Acti9 iCT
Power Rating	1.6W
Maximum Operating Temperature	60°C
Minimum Operating Temperature	-5°C
Terminal type	Screw
Number of Poles	2
Standards/Approvals	RoHS, IEC/EN 61095
Contact Voltage	250V ac
Coil Voltage	24V ac
Normal State Configuration	2 NO
Contact Current	63A
Number of Auxiliary Contacts	2
Auxiliary Contact Configuration	2 NO
Operational Current Ie	63A
Control Circuit Voltage Uc	24V ac
Contactor Application	Motor Control
Pole and Throw Configuration	2P
Screw connections	IP20 finger-safe terminals with both North American and International terminal markings
Better World Verification	Byggvarubedömningen
Class-2 insulation	continuous safety for operators and unqualified personnel

Key Features

Features a 24V AC coil and 2 normally open contacts for reliable switching.
Supports contact voltage of 250V AC with a power rating of 1.6W at 24V AC coil voltage.
Mountable on DIN rails with screw terminals offering IP20 finger-safe protection.
Operates reliably between -5°C to 60°C with IEC/EN 61095 and RoHS compliance.
Includes built-in auxiliary contacts for extended switching capabilities.
Compact dimensions of 85mm width, 68mm depth, and 36mm length ensure space-efficient installation.

Product Description

Schneider Electric Acti9 Acti9 iCT Contactor features a 24V AC coil, 2 poles, and is rated for 63A contact current, providing efficient power switching for motor control applications in industrial and automation environments.

This device is designed for reliable operation with a power rating of 1.6W at 24V AC coil voltage and supports a contact voltage of 250V AC. The contactor is built to meet IEC/EN 61095 standards and RoHS compliance, ensuring safety and environmental standards adherence.

The contactor includes two normally open (NO) contacts and two auxiliary contacts configured as NO, offering added flexibility and switching capability. It mounts easily to DIN rails and features screw terminals with IP20 finger-safe protection, suitable for various industrial control panels.

Operating temperature ranges from -5°C to 60°C, making it suitable for a wide range of industrial environments. The compact dimensions (85mm width, 68mm depth, and 36mm length) allow it to be installed in confined spaces.

Additional features include class-2 insulation providing continuous safety for operators and unqualified personnel, and it is a Better World product verified by Byggvarubedömningen, reflecting Schneider Electric's commitment to sustainability.

Features a 24V AC coil and 2 normally open contacts for reliable switching. Supports contact voltage of 250V AC with a power rating of 1.6W at 24V AC coil voltage. Mountable on DIN rails with screw terminals offering IP20 finger-safe protection.

Operates reliably between -5°C to 60°C with IEC/EN 61095 and RoHS compliance. Includes built-in auxiliary contacts for extended switching capabilities. Compact design with 85mm width, 68mm depth, and 36mm length for space-saving installation.

This contactor is suitable for industrial automation, motor control, manufacturing facilities, and HVAC systems requiring dependable switching devices. Its robust design and compliance with industry standards make it ideal for demanding environments requiring efficient and safe electrical control.
