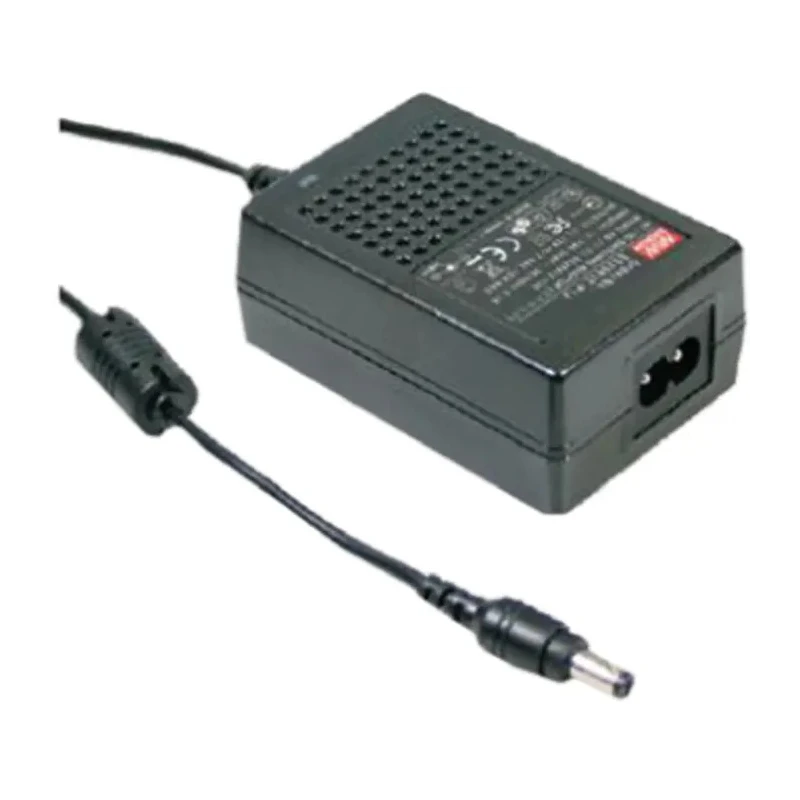

MEAN WELL AC/DC Adapter IEC Output 4.32 A, 7.5 V dc GSM36B07-P1J
Specifications
| Country of Origin | India |
|---|---|
| Brand | MEAN WELL |
| Model | GSM36B07-P1J |
| Cable Length | 1200mm |
| Overall Length | 79mm |
| Series | GSM36B |
| Overall Width | 54mm |
| Maximum Operating Temperature | 60°C |
| Plug Type | IEC |
| Protections | Short circuit / Overload / Over voltage |
| Maximum Output Current | 4.32A |
| Standards/Approvals | TUV EN 60601-1 |
| Minimum Input Voltage | 100V ac |
| Overall Depth | 33mm |
| Minimum Output Voltage | 7.5V dc |
| Input Connector Type | IEC 320-C8 |
| MEAN WELL AC/DC AdapterBrand | Mean Well |
Key Features
- Features a universal AC input with a full range and IEC 320-C8 2-pole AC inlet.
- Delivers maximum output current of 4.32 A and minimum output voltage of 7.5 V dc.
- Constructed with a fully enclosed plastic case with UL 94V-0 rating for safety.
- Includes protections against short circuit, overload, and over voltage conditions.
- Offers low no load power consumption of less than 0.1 W to meet energy efficiency standards.
- Equipped with LED indicator for power-on status.
- Complies with medical safety standards including ANSI/AAMI ES60601-1 and TUV EN60601-1.
- Designed to operate at maximum temperature of 60°C for reliable performance.
Product Description
MEAN WELL GSM36B07-P1J AC/DC Adapter IEC Output 4.32 A, 7.5 V dc is a high-efficiency medical-grade switch mode power supply designed for use in medical, healthcare, and other sensitive electrical equipment requiring low leakage current and high safety standards.
This 18W to 36W desktop power supply features a universal full-range AC input with IEC 320-C8 connector, ensuring global compatibility. The adapter housing is made from UL 94V-0 rated plastic, offering robust protection and electrical insulation.
With a maximum output current of 4.32 A and minimum output voltage of 7.5 V dc, the GSM36B07-P1J delivers consistent power output for various medical devices. It incorporates multiple protective functions including short circuit, overload, and over voltage protections, enhancing device and user safety.
The device complies with stringent international medical safety regulations such as ANSI/AAMI ES60601-1 and TUV EN60601-1, featuring a low leakage current below 50 μA and low no-load power consumption under 0.1 W. It is certified with TUV, CB, and CE marks, underscoring its quality and safety assurances for medical applications.
Universal full range AC input with IEC320-C8 2-pole AC inlet. High efficiency up to 88% for power saving operation. Low leakage current below 50 μA suitable for patient contact medical equipment. Multiple protective features ensuring device safety.
Energy-saving compliant with ErP step 2 and EISA 2007 regulations. Fully enclosed design with UL 94V-0 rated plastic case. LED power on indicator for operational status. Compact size with cable length of 1200 mm for convenient installation.
Certified for medical use with compliance to relevant standards.
This adapter is ideal for industrial, laboratory, medical, and home healthcare equipment applications requiring reliable, efficient, and safe low voltage DC power. The low leakage current and energy efficiency make it suitable for sensitive medical environments and portable devices.
Explore the wide range of MEAN WELL power supplies and adapters available for diverse electronic and medical power needs at EnvMart.
Explore more products in our AC/DC Adapters category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output current of the MEAN WELL GSM36B07-P1J adapter is 4.32 A.
It complies with medical safety standards including ANSI/AAMI ES60601-1 and TUV EN60601-1.
The power supply is equipped with an IEC 320-C8 input connector type.
The adapter includes protections against short circuit, overload, and over voltage conditions.
The maximum operating temperature for this unit is 60°C.
The cable length of this adapter is 1200 mm.
The overall dimensions of the adapter are 79 mm in length, 54 mm in width, and 33 mm in depth.
This power supply has a high efficiency of up to 88%.
The no-load power consumption is less than 0.1 W, meeting energy efficiency standards.
It is suitable for industrial, laboratory, medical, and home healthcare equipment applications requiring reliable low voltage DC power.
The country of origin for this adapter is India.
