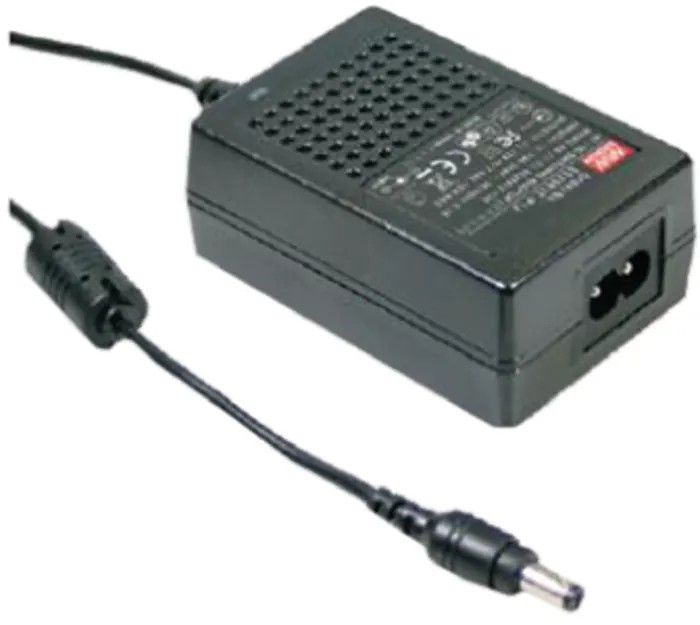

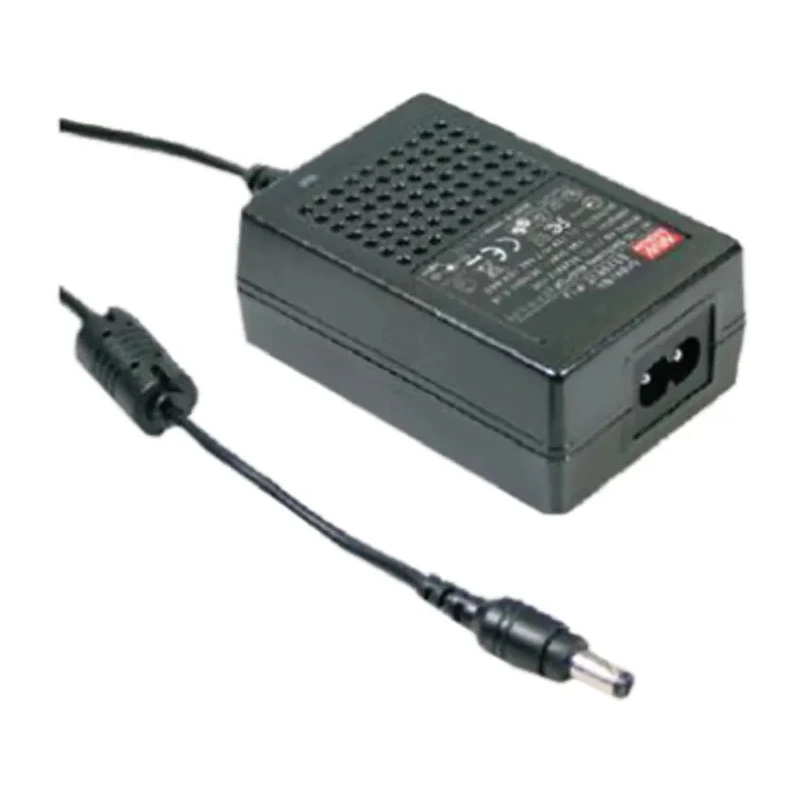

MEAN WELL AC/DC Adapter IEC 264V AC Output 3 A, 5 V DC GSM18B05-P1J

MEAN WELL GSM18B05-P1J AC/DC Adapter is a reliable 18W to 36W single output switch mode desktop power supply designed for medical and general industrial applications. With a maximum output current of 3 A at 5 V DC, this adapter ensures stable and efficient power delivery from a wide AC input voltage range of 100V to 264V AC.

This model features an IEC320-C8 two-pole AC inlet plug ensuring compatibility with multiple power sources worldwide. Its compact enclosure measures 79mm in length, 54mm in width, and 33mm in depth, making it suitable for desktop use in medical, laboratory, and electronic equipment.

The GSM18B05-P1J complies with strict medical safety standards including ANSI/AAMI ES60601-1, TUV EN60601-1, and IEC 60950-1. It exhibits a low leakage current below 50 μA and low no-load power consumption under 0.1 W, making it ideal for patient-contact medical devices and home healthcare equipment where safety and energy efficiency are critical.

The unit offers multiple device protections such as against short circuit, overload, and over voltage, thereby enhancing system reliability. The plastic enclosure is UL 94V-0 rated and fully enclosed, delivering Class II insulation without requiring an earth pin, which is compliant with medical safety performance (2 x MOPP between primary to secondary).

Additional features include a power-on LED indicator and optional lock type DC plug that ensures secure connection and prevents accidental unplugging during critical operation. The adapter meets energy efficiency requirements including ErP step 2 Level V and EISA 2007 regulations, contributing to reduced environmental impact.

This power supply is suitable for various use cases including medical instrumentation, portable medical devices, laboratory equipment, industrial electronics, and commercial appliances where low leakage current and high regulatory compliance are required.

Universal AC input voltage between 100V and 264V AC for global applicability. IEC 320-C8 2-pole AC inlet connector for easy installation. Maximum output current of 3 A at 5 V DC output. Compact form factor measuring 79mm x 54mm x 33mm.

Medical safety certifications and low leakage current below 50 μA. Protections for short circuit, overload, and over voltage. High efficiency up to 88% with low no-load consumption (.
