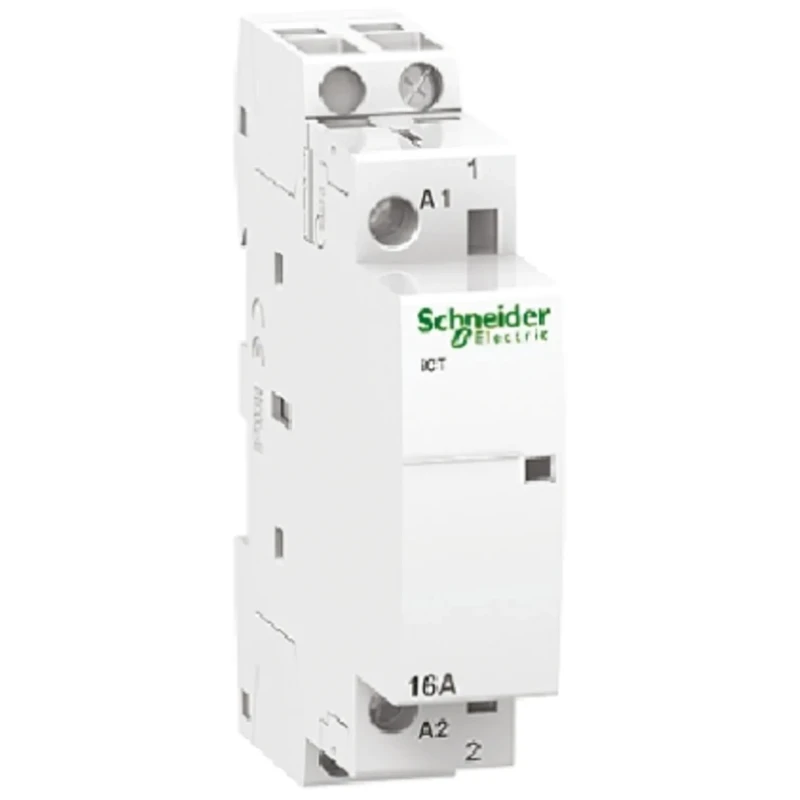

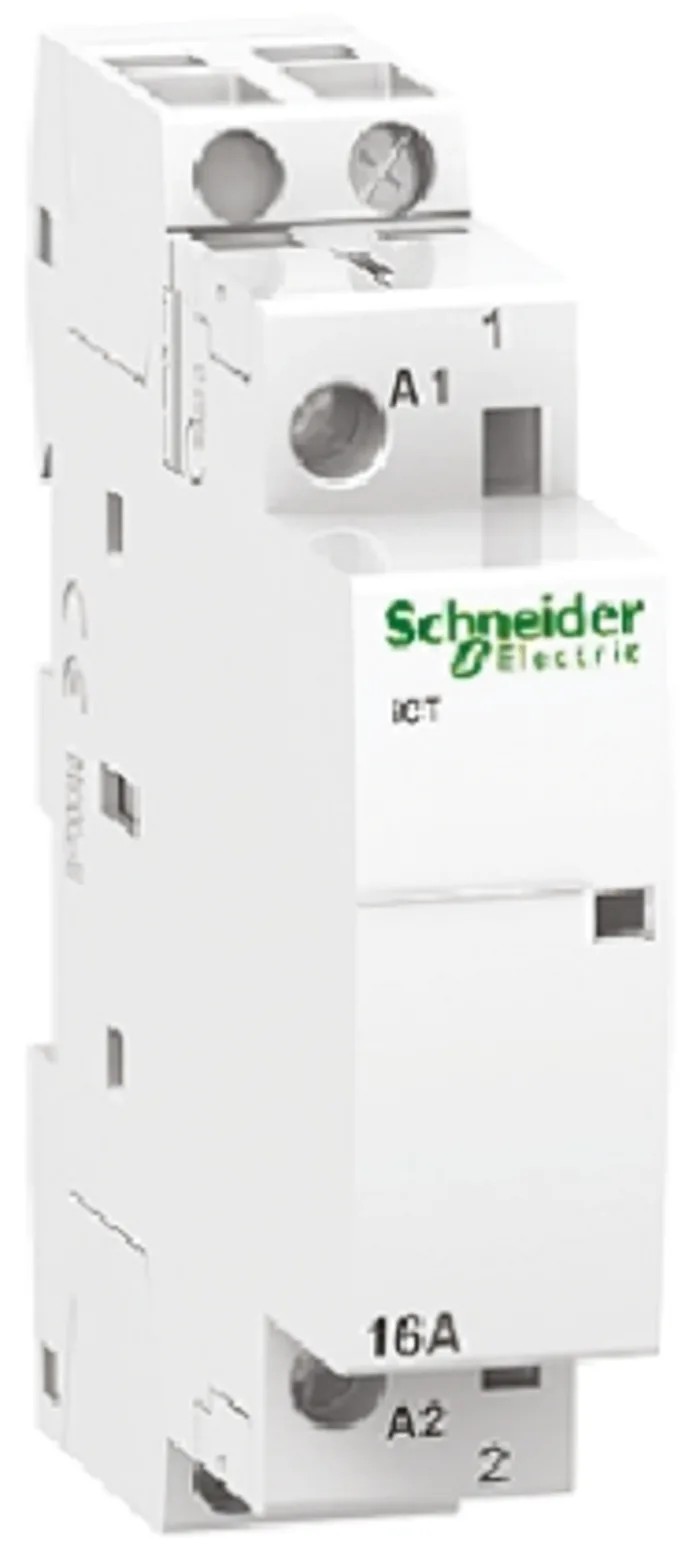

Schneider Electric Acti9 iCT Contactor 230V AC Coil, 1-Pole, 16A, 1.3W Power Rating, DIN Rail Mount
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control |
| Length | 18mm |
| Model | Acti9 |
| Depth | 68mm |
| Width | 81mm |
| Mount Type | DIN Rail |
| Series | Acti9 iCT |
| Power Rating | 1.3W |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -5°C |
| Terminal type | Screw |
| Number of Poles | 1 |
| Standards/Approvals | IEC/EN 61095, RoHS |
| Contact Voltage | 250V ac |
| Coil Voltage | 230V ac |
| Normal State Configuration | 1 NO |
| Contact Current | 16A |
| Number of Auxiliary Contacts | 1 |
| Auxiliary Contact Configuration | 1 NO |
| Operational Current Ie | 16A |
| Control Circuit Voltage Uc | 240V |
| Contactor Application | Motor Control |
| Pole and Throw Configuration | 1P |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| Better World Verification | Byggvarubedömningen |
| Class-2 insulation | continuous safety for operators and unqualified personnel |
Key Features
- This contactor has a single pole configuration suitable for both single and three-phase loads.
- Equipped with one normally open (1 NO) auxiliary contact enhancing switching capabilities.
- Screw type terminals provide secure and finger-safe IP20 connections with international terminal markings.
- Designed for DIN rail mounting, enabling easy installation in electrical panels.
- Operation is rated at 1.3W power consumption for the coil at 240V control circuit voltage.
- It operates efficiently within a temperature range of -5°C to 60°C.
- Compliance with IEC/EN 61095 and RoHS standards ensures safety and environmental considerations.
- Compact dimensions of 18mm length, 81mm width, and 68mm depth allow for space-saving panel integration.
Product Description
Schneider Electric A9C22711 Acti9 iCT Contactor is a high-performance motor control contactor designed for industrial, laboratory, commercial, and HVAC applications. It features a 230V AC coil voltage and supports a 16A contact current with a single pole configuration for efficient power switching.
The device includes one normally open auxiliary contact enhancing its switching functionality. The contactor utilizes screw terminals that are IP20 finger-safe with markings compliant for both North American and international standards, ensuring secure and safe wiring.
Designed for DIN rail mounting, the compact form factor with dimensions of 18mm length, 81mm width, and 68mm depth offers easy integration into control panels. It consumes 1.3W of power at 240V control circuit voltage, optimized for energy efficiency.
This contactor operates reliably within a temperature range of -5°C to 60°C and holds certifications to IEC/EN 61095 and RoHS, reflecting Schneider Electric's commitment to product safety and environmental responsibility.
Additional features include built-in impulse relay functions, day-night functions, and class-2 insulation to maintain continuous operator safety. The product is ideal for motor control in automation and control gear setups across electrical industrial installations.
This Contactor has 1 normally open auxiliary contact for expanded control options. Screw connections with IP20 finger-safe terminals and dual terminal markings improve installation safety. DIN rail mount type ensures easy panel mounting and secure fixing.
The unit provides motor control function suitable for diverse industrial applications. Class-2 insulation offers protection against electrical hazards for operators. Compact size saves panel space while providing robust operational performance.
Operating temperature range suits varied environments from -5°C to 60°C. Standards compliance including IEC/EN 61095 and RoHS align with international quality benchmarks. Explore more automation and control gear solutions on EnvMart to enhance your industrial electrical installations with reliable and energy-efficient Schneider Electric products.
Explore more products in our Contactors & Auxiliary Contacts category.
