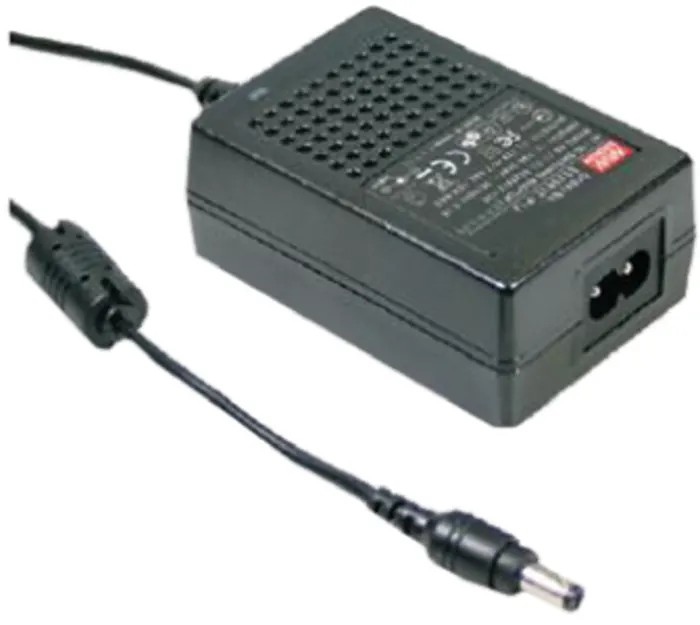

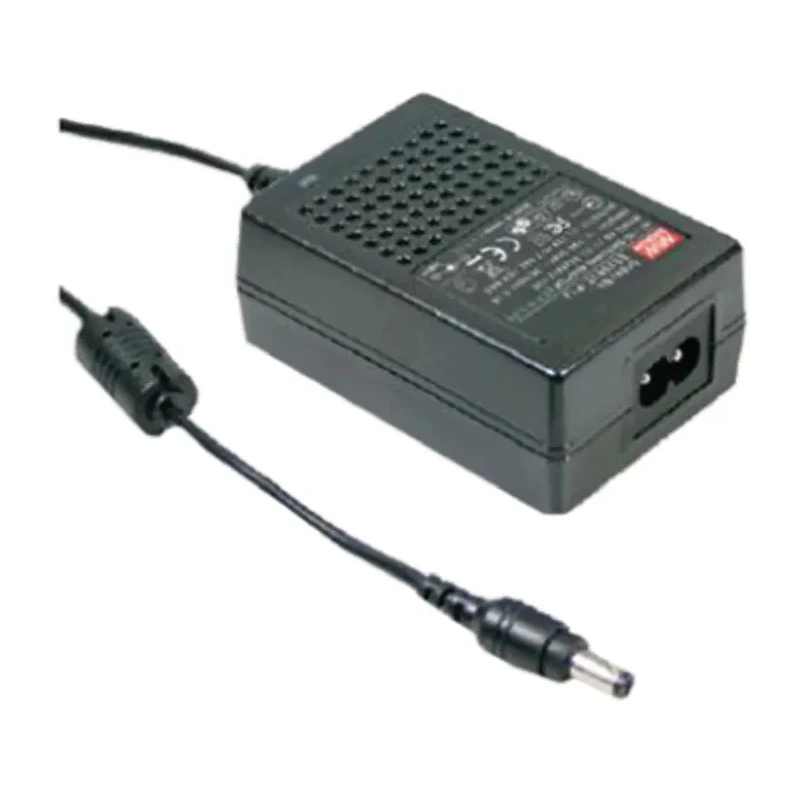

MEAN WELL AC/DC Adapter IEC 264V AC, Output 2A 9V DC Medical Power Supply GSM18B09-P1J
Specifications
| Country of Origin | India |
|---|---|
| Brand | MEAN WELL |
| Model | GSM18B09-P1J |
| Cable Length | 1200mm |
| Overall Length | 79mm |
| Series | GSM18 |
| Overall Width | 54mm |
| Maximum Operating Temperature | 60°C |
| Plug Type | IEC |
| Maximum Input Voltage | 264V ac |
| Protections | Short circuit / Overload / Over voltage |
| Maximum Output Current | 2A |
| Standards/Approvals | IEC 60950-1, UL 60950-1, CE |
| Minimum Input Voltage | 100V ac |
| Overall Depth | 33mm |
| Minimum Output Voltage | 9V dc |
| Input Connector Type | IEC 320-C8 |
Key Features
- Universal AC input voltage range from 100V to 264V AC enables global compatibility.
- Low leakage current below 50 microamps for patient contact medical applications.
- High efficiency up to 88% minimizes power loss during operation.
- Protections against short circuit, overload and over voltage ensure reliable operation.
- Fully enclosed plastic case rated UL 94V-0 for flame retardancy and safety.
- Complies with medical safety standards including ANSI/AAMI ES60601-1 and IEC 60950-1.
- Low no load power consumption less than 0.1W meets ErP step 2 and EISA 2007 regulations.
- LED indicator shows power-on status clearly.
Product Description
MEAN WELL GSM18B09-P1J AC/DC Adapter is a high-quality medical power supply designed for demanding applications with low leakage current and wide input voltage range. This 18W to 36W desktop switch-mode power supply features a universal AC input of 100 to 264V and delivers a regulated 9V DC output at a maximum current of 2 amperes, suitable for various medical, home healthcare, and portable medical equipment systems.
The GSM-B series adheres to stringent international medical safety standards like ANSI/AAMI ES60601-1, TUV EN60601-1, and IEC 60950-1, ensuring patient safety via 2x MOPP insulation between primary and secondary circuits. Its fully enclosed UL 94V-0 plastic housing offers durability and flame retardance suitable for industrial and medical environments.
Designed for energy efficiency, the adapter achieves up to 88% efficiency with low no load power consumption under 0.1W, complying with ErP step 2 and EISA 2007 energy-saving laws. It has built-in protections against short circuits, overloads, and overvoltage to safeguard both the adapter and connected devices.
The ergonomic plug type is IEC 320-C8 with a 1200mm cable length offering ease of installation. Compact dimensions (79mm x 54mm x 33mm) allow flexible integration into equipment housings or workplace setups.
With a maximum operating temperature rating of 60°C and compliance with UR, CB, FC, CE standards, this reliable power supply is ideal for industrial, laboratory, healthcare, and manufacturing applications demanding medical-grade power supplies with minimal electrical leakage and high safety.
Universal AC input / Full range from 100 to 264V AC. Medical safety approved with low leakage current below 50 microamps. High efficiency and energy saving compliant to ErP step 2 and EISA 2007. Compact and lightweight desktop plug-in power supply design.
Built-in protections for short circuit, overload, and overvoltage. Suitable for portable medical devices and home healthcare equipment. Durable UL 94V-0 plastic enclosure with LED power indicator. Explore more medical and industrial power supplies on EnvMart to find certified and efficient adapters meeting your system requirements.
Explore more products in our AC/DC Adapters category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output current of this adapter is 2A.
The adapter uses an IEC 320-C8 plug type.
The dimensions of this adapter are 79mm in length, 54mm in width, and 33mm in depth.
The maximum operating temperature for this model is 60°C.
This adapter complies with IEC 60950-1, UL 60950-1, and CE safety standards.
It includes protections against short circuits, overloads, and overvoltage.
This adapter achieves an efficiency of up to 88% during operation.
The cable length of this adapter is 1200mm.
The minimum output voltage of the GSM18B09-P1J is 9V DC.
This medical power supply is suitable for various medical, home healthcare, and portable medical equipment systems.
The adapter is manufactured in India.
