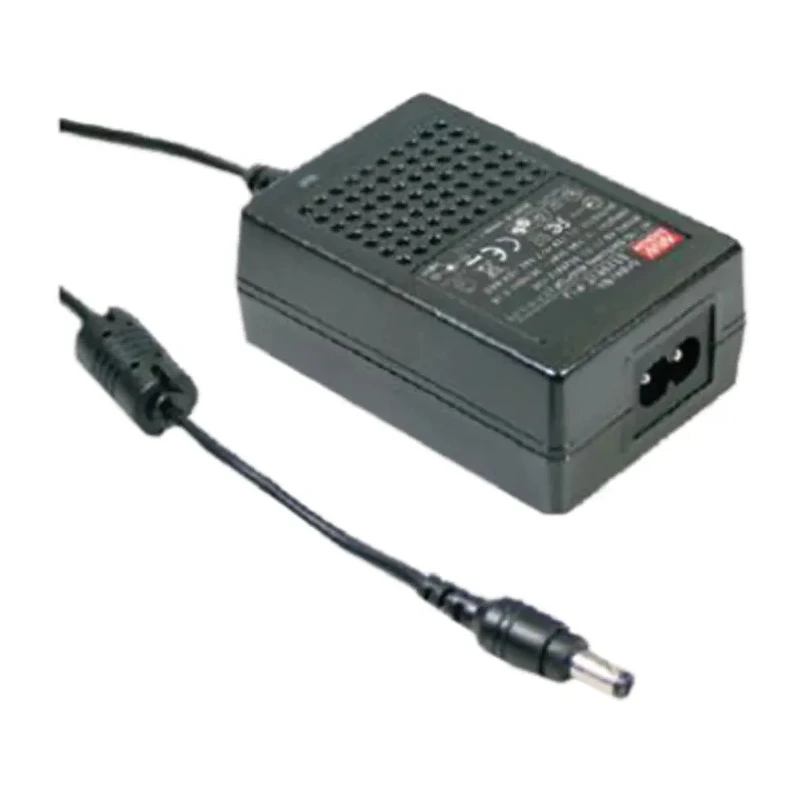

MEAN WELL AC/DC Adapter IEC Plug Type, 750 mA Max Output Current, 24 V DC, 18W to 36W, Medical Safety Approved GSM18B24-P1J
Specifications
| Country of Origin | India |
|---|---|
| Brand | MEAN WELL |
| Model | GSM18B24-P1J |
| Cable Length | 1800mm |
| Overall Length | 79mm |
| Series | GSM18B |
| Overall Width | 54mm |
| Maximum Operating Temperature | 60°C |
| Plug Type | IEC |
| Protections | Short circuit / Overload / Over voltage |
| Maximum Output Current | 750mA |
| Standards/Approvals | TUV EN 60601-1 |
| Minimum Input Voltage | 100V ac |
| Overall Depth | 33mm |
| Minimum Output Voltage | 24V dc |
| Input Connector Type | IEC 320-C8 |
| RS PRO 2.1 x 5.5 mm Connector AC/DC Adapter 2-Pin (IEC) 24 W 24V dc OutputBrand | RS PRO |
Key Features
- The adapter features a cable length of 1800 mm for flexible installation.
- It supports a wide input voltage range starting from 100V AC full range.
- Maximum operating temperature is rated at 60°C ensuring reliable performance.
- The unit is fully enclosed in UL 94V-0 rated plastic case with medical safety approvals.
- It has advanced protections including short circuit, overload, and over voltage safeguards.
- Power efficiency reaches up to 88% with low no-load power consumption below 0.1 W.
- The device complies with ErP Step 2 level V and EISA 2007 energy-saving standards.
- Its series GSM18B is designed with low leakage current less than 50 μA for patient contact medical equipment.
Product Description
MEAN WELL GSM18B24-P1J AC/DC Adapter IEC plug type delivers a reliable 24 V DC output with a maximum current of 750 mA and power ranging between 18 W to 36 W. This power supply unit is part of the GSM-B series, specifically designed for medical applications requiring stringent safety and energy efficiency standards.
The adapter supports a universal AC input voltage starting from 100 V AC and operates safely up to 60°C operating temperature. It features a cable length of 1800 mm and an overall compact physical dimension (Length: 79 mm, Width: 54 mm, Depth: 33 mm), ensuring convenience in deployment in various industrial, laboratory, and medical equipment settings.
The unit complies with international medical safety regulations including TUV, CB, and CE certifications and meets ANSI/AAMI ES60601-1, TUV EN60601-1, and IEC 60601-1-11 standards. It incorporates protections against short circuit, overload, and over voltage, contributing to enhanced reliability and durability.
Cable length of 1800 mm provides extended reach in installations. Medical safety approved with low leakage current less than 50 μA. Energy efficient with ErP Step 2 and EISA 2007 compliant features. Fully enclosed plastic case ensures user safety and device protection.
LED indicator shows power status clearly. Class II power unit with double insulation (2 x MOPP). Optional lock-type DC plug available for secure connections.
This AC/DC adapter is suitable for medical equipment including portable medical devices, home healthcare instruments, and other electrical systems demanding low-no-load power consumption and high safety standards. Its ergonomic design and comprehensive certifications make it ideal for use in industrial, laboratory, and healthcare environments.
Browse EnvMart's selection of power supplies and AC/DC Adapters to find compatible products for your application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output current of this adapter is 750 mA.
The output voltage of this model is 24 V DC.
The overall dimensions are 79 mm in length, 54 mm in width, and 33 mm in depth.
The cable length is 1800 mm, providing flexibility in installation.
It complies with TUV, CB, CE certifications and meets ANSI/AAMI ES60601-1, TUV EN60601-1, and IEC 60601-1-11 standards.
The adapter includes protections against short circuit, overload, and over voltage.
The maximum operating temperature is rated at 60°C.
The power efficiency reaches up to 88%, with low no-load power consumption below 0.1 W.
It uses an IEC plug type, specifically the IEC 320-C8 input connector type.
It is suitable for medical equipment, including portable medical devices and home healthcare instruments.
The leakage current is less than 50 μA, making it suitable for patient contact medical equipment.
