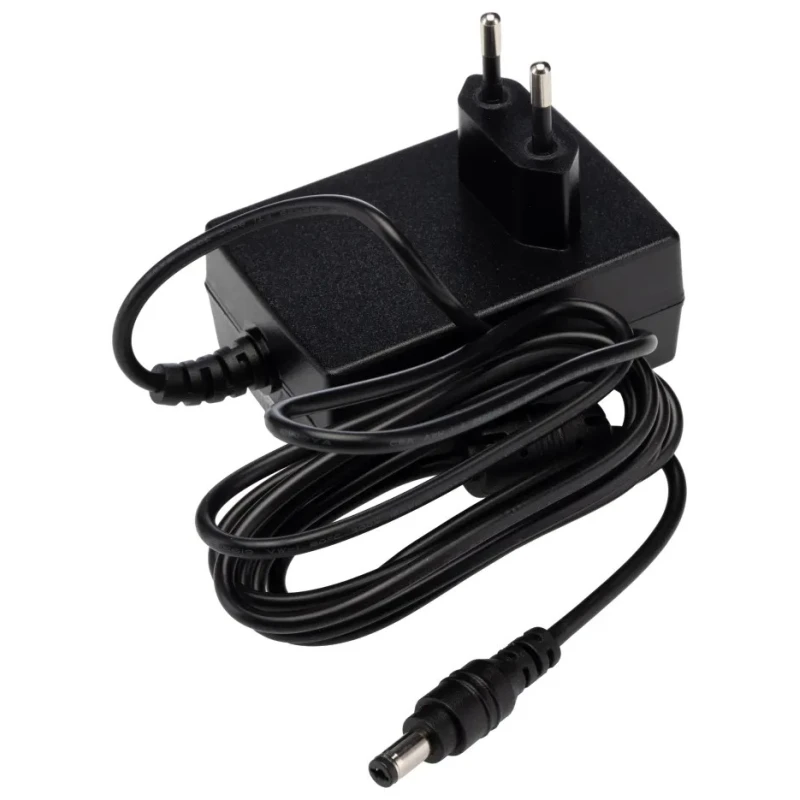

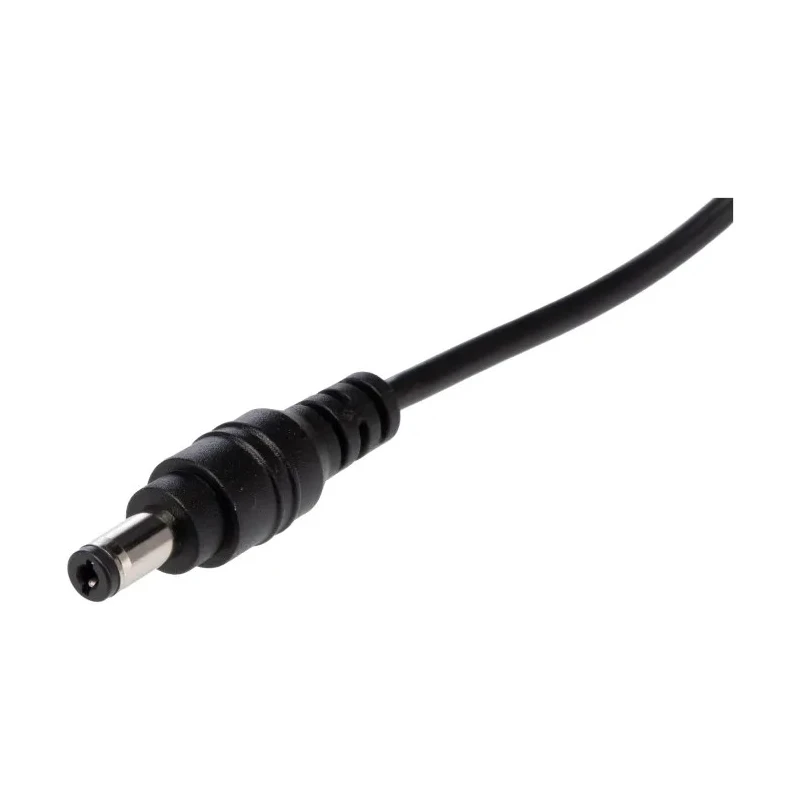

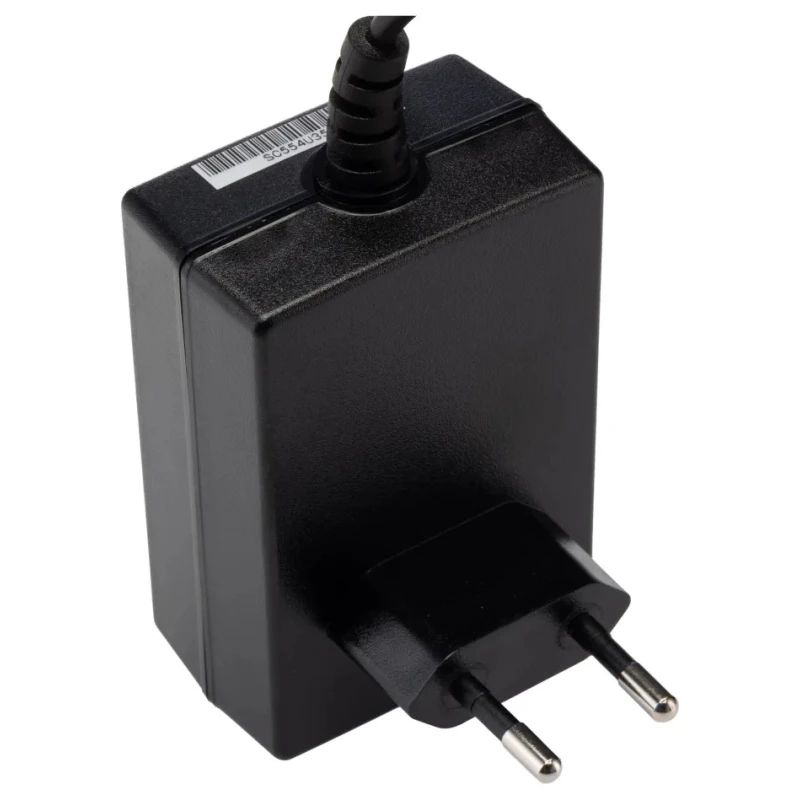

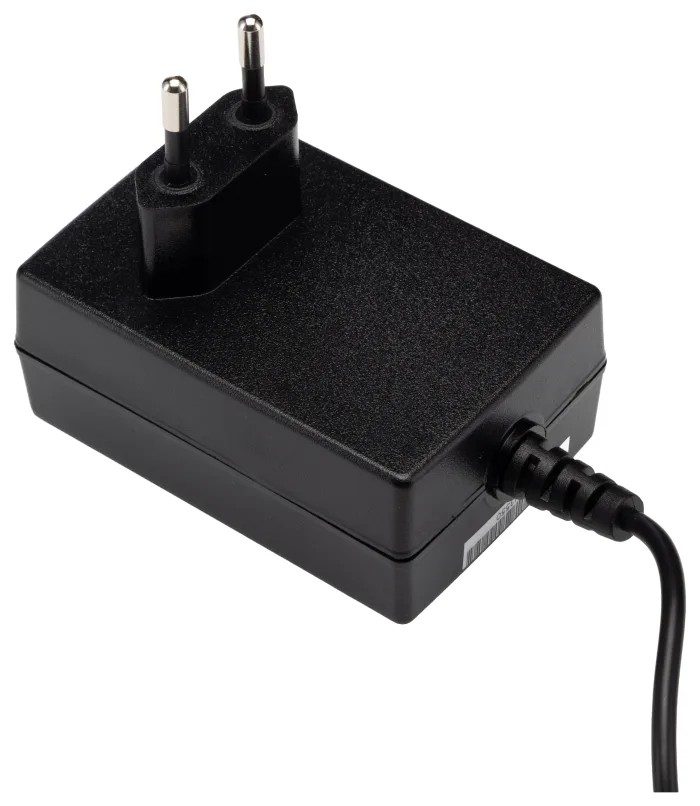

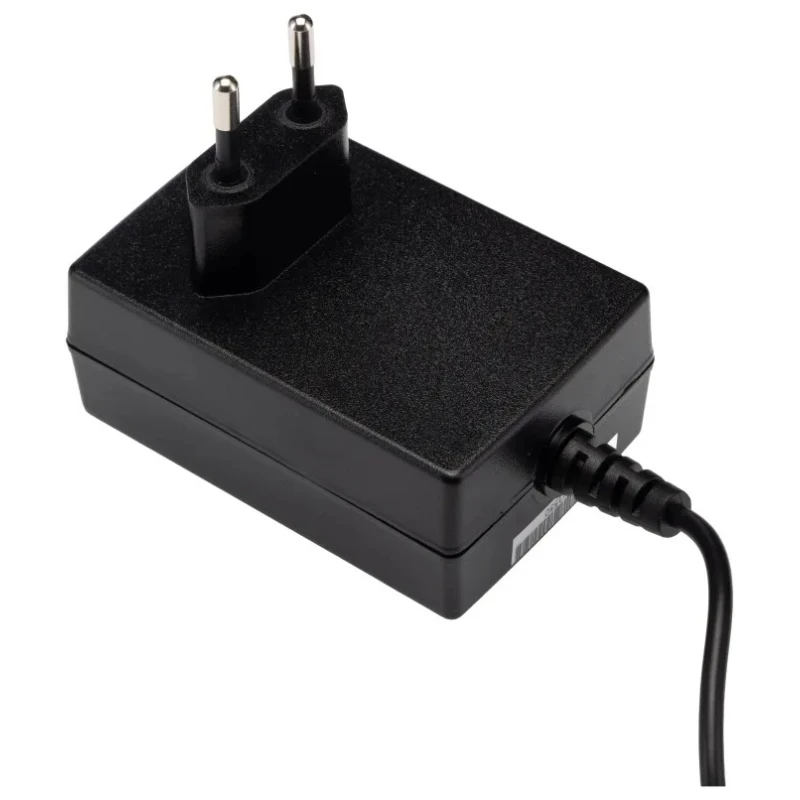

MEAN WELL AC/DC Adapter Type C Plug 264V AC Input 12V DC Output 1.5A GSM18E12-P1J

Free Delivery in India | Lowest Global Shipping Charges

MEAN WELL AC/DC Adapter Type C Plug 264V AC Input 12V DC Output 1.5A GSM18E12-P1J

Name: MEAN WELL AC/DC Adapter Type C Plug 264V AC Input 12V DC Output 1.5A GSM18E12-P1J
Brand: MEAN WELL
SKU: 371237
Price: 20.22 USD
Availability: InStock



Category AC/DC Adapters Brand MEAN WELL Condition New

Specifications

Country of Origin	India
Brand	MEAN WELL
Model	GSM18E12-P1J
Cable Length	1.8m
Overall Length	79mm
Overall Width	54mm
Maximum Operating Temperature	60°C
Plug Type	Type C
Maximum Input Voltage	264V ac
Protections	Short circuit / Overload / Over voltage
Maximum Output Current	1.5A
Standards/Approvals	TUV EN 60601-1
Minimum Input Voltage	100V ac
Overall Depth	33mm
Minimum Output Voltage	12V dc
Input Connector Type	EU Plug

Key Features

Compact 2-pin Euro power supply with Type C plug.
Compliance with international medical safety standards including low leakage current.
Low no-load power consumption below 0.1W for energy efficiency.
Equipped with protections against short circuit, overload, and over voltage.
Operating temperature up to 60°C for reliable performance.
Cable length of 1.8 meters for convenient use.
Plastic enclosure rated UL 94V-0 for safety and durability.
TUV EN 60601-1 approval ensuring medical grade safety compliance.

Product Description

MEAN WELL GSM18E12-P1J AC/DC Adapter is designed for reliable power supply applications requiring a 12V DC output at 1.5A maximum current. Featuring a Type C EU plug and a full universal AC input voltage range of 100 to 264V AC, this adapter is compatible for many industrial, medical, and commercial equipment.

It offers low leakage current less than 50 microamps and low no-load power consumption below 0.1W, making it suitable for patient-contact medical devices and home healthcare equipment. The adapter is housed in a UL 94V-0 rated plastic enclosure providing excellent insulation and environmental protection.

This power supply complies with TUV EN 60601-1 safety standards and has TUV, CB, and CE certifications that ensure conformity for critical applications. Its operating temperature limit of 60°C allows reliable use in various environments.

The 1.8 meter cable length facilitates flexible installation and connection while the overall compact size (79mm length x 54mm width x 33mm depth) ensures minimal space usage. Protections including short circuit, overload, and over voltage safeguard connected devices.

Compact 2-pin Euro power supply with Type C plug for international compatibility. Low leakage current and no-load power consumption for energy efficiency and safety. Complies with stringent medical safety standards for patient-contact use.

Universal AC input supports 100-264V AC voltage range for wide applicability. UL 94V-0 rated plastic case for high insulation and durability. Operating temperature up to 60°C ensures consistent performance. Protections against short circuit, overload, and over voltage enhance device safety.

Cable length of 1.8 meters for convenience and flexibility. Certifications include TUV, CB, and CE ensuring compliance and quality.

This AC/DC adapter series is ideal for powering various industrial, laboratory, medical, and commercial equipment that require efficient, safe, and compact power supplies with low leakage currents. Browse additional power supply and adapter options at EnvMart for your specific application needs.
