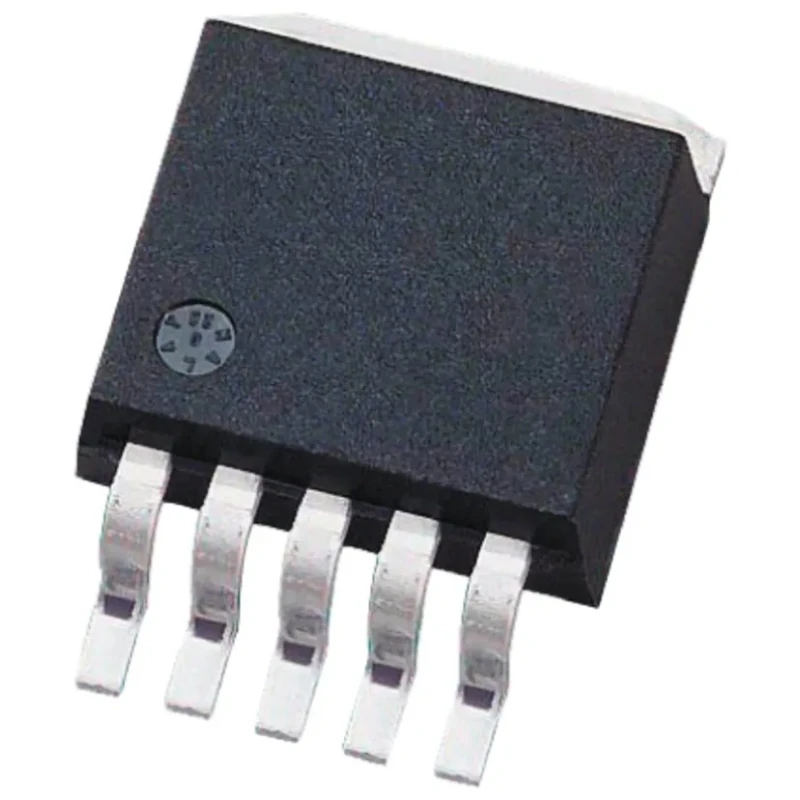

onsemi 5 Outputs Surface Mount Switching Regulator, 12V Output Voltage, 1A Output Current LM2575D2T-12R4G
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Efficiency | 85% |
| Length | 10.24mm |
| Model | LM2575D2T-12R4G |
| Depth | 9.34mm |
| Width | 18mm |
| Mount Type | Surface |
| Series | LM2575 |
| Output Current | 1A |
| Maximum Operating Temperature | 125°C |
| Package Type | TO-263 |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 5 |
| Ripple and Noise | 20mV Pk-Pk |
| Maximum Input Voltage | 40V |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 4.75V |
| Number of Pins | 5 |
| Output Voltage 1 | 12V |
Key Features
- Operates with a maximum input voltage of 40V and minimum input voltage of 4.75V.
- Features a high efficiency of 85% to reduce power loss.
- Provides a low ripple and noise of 20mV peak to peak for stable output.
- Supports a wide operating temperature range from -40°C to 125°C for reliability in harsh environments.
- Compact TO-263 package with 5 pins and dimensions 18mm width, 10.24mm length, and 9.34mm depth.
- Designed for buck (step-down) DC-DC conversion applications including power supplies and voltage regulation.
- Compliant with RoHS standards ensuring environmental safety and quality.
Product Description
onsemi LM2575D2T-12R4G is a high-performance, 5 outputs surface mount switching regulator designed to provide a regulated 12V output voltage with a maximum current of 1A. It operates efficiently within an input voltage range of 4.75V to 40V, making it suitable for various power supply and DC-DC conversion applications including buck (step-down) regulators.
This switching regulator delivers an efficiency of up to 85%, minimizing energy loss during operation. It features a low ripple and noise output of 20mV peak to peak, ensuring stable power delivery for sensitive electronics.
The device is built to withstand ambient temperatures from -40°C to 125°C, supporting reliability in industrial, automotive, and commercial electronic environments. Its compact TO-263 package has 5 pins, with compact dimensions of 18mm width, 10.24mm length, and 9.34mm depth, allowing for space-constrained PCB designs.
Compliant with RoHS directives, this regulator meets environmental standards for lead-free and hazardous-substance-free devices. It is ideal for applications requiring efficient power management including battery-powered equipment, power adapters, and industrial electronics.
Maximum input voltage: 40V. Minimum input voltage: 4.75V. Output voltage: 12V. Output current: 1A. Efficiency: 85%. Ripple and noise: 20mV peak to peak. Operating temperature range: -40°C to 125°C. Package: TO-263 with 5 pins.
Compact dimensions for PCB mounting. RoHS compliant for environmental safety.
This switching regulator is widely used in electronics manufacturing, industrial automation, and power supply applications. Its robust performance and compact design support efficient power conversion and management needs.
Explore a wide range of Switching Regulators and power management solutions on EnvMart for your industrial and electronic projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a regulated output voltage of 12V with a maximum output current of 1A.
The LM2575D2T-12R4G operates with an efficiency of up to 85%, minimizing energy loss during operation.
It has a minimum input voltage of 4.75V and a maximum input voltage of 40V.
The output ripple and noise is specified at 20mV peak to peak, ensuring stable power delivery.
This unit supports an operating temperature range from -40°C to 125°C, making it suitable for harsh environments.
It is available in a compact TO-263 package with 5 pins.
It is designed for buck (step-down) DC-DC conversion applications, making it suitable for power supplies and voltage regulation.
Yes, it is compliant with RoHS standards, ensuring it meets environmental safety and quality requirements.
The dimensions of the package are 18mm in width, 10.24mm in length, and 9.34mm in depth.
It is widely used in electronics manufacturing, industrial automation, and power supply applications.
This model features 5 outputs, allowing for versatile power management solutions.
The LM2575D2T-12R4G is manufactured in India.
