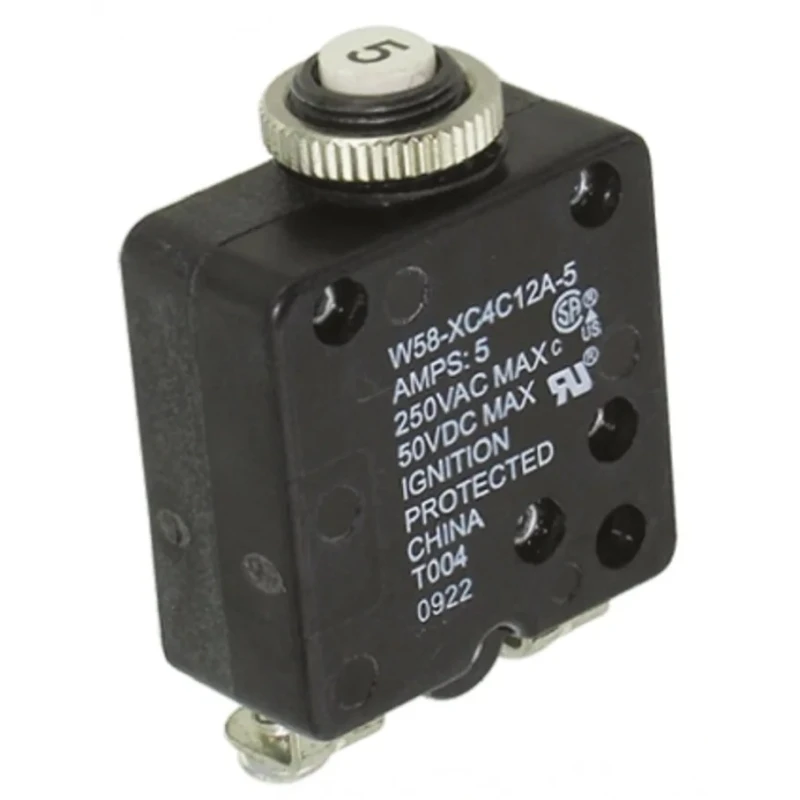

TE Connectivity Thermal Circuit Breaker 5A Current Rating 1-Pole Direct Mount W58-XC4C12A-5
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Height | 46.11mm |
| Model | W58-XC4C12A-5 |
| Depth | 34.93mm |
| Width | 16.76mm |
| Mount Type | Direct |
| Current Rating | 5A |
| Series | W58 |
| Terminal type | Screw |
| Breaking Capacity | 1000A |
| Number of Poles | 1 |
| Standards/Approvals | CE, RoHS |
| Rated AC Voltage | 250V ac |
| Rated DC Voltage | 50V dc |
| Tripping Characteristics | May trip between 101% and 145%, Must trip at 145% at 25°C |
| Tripping Mechanism | Thermal |
| Reset Actuator Type | Toggle Switch |
| Mount Hole Size | 18.8 mm |
| Break Time | Medium |
Key Features
- The breaker has a current rating of 5A suitable for protecting electrical circuits.
- It features a direct mounting type with a mount hole size of 18.8 mm.
- Thermal tripping mechanism with toggle switch reset actuator is used for reliable protection.
- Breaking capacity is 1000A supporting medium break time performance.
- Rated for 250V AC and 50V DC applications with compliance to CE and RoHS standards.
- Compact dimensions with 46.11 mm height, 16.76 mm width, and 34.93 mm depth.
Product Description
TE Connectivity W58-XC4C12A-5 Thermal Circuit Breaker is engineered to provide reliable overcurrent protection in a compact and durable format. This 1-pole breaker supports a current rating of 5 amperes and utilizes thermal tripping technology to ensure circuit safety by interrupting excess current flow effectively.
Equipped with a toggle switch reset actuator, it allows easy manual reset after tripping events. The breaker mounts directly with an 18.8 mm hole size and screw-type terminals to facilitate secure and straightforward installation in electrical panels and systems.
Designed for both AC and DC applications, it is rated for 250V AC and 50V DC operation, making it suitable for a variety of industrial, commercial, and automation environments. The breaker meets CE and RoHS compliance requirements, ensuring adherence to quality and environmental standards.
With a breaking capacity of 1000A and medium break time, this breaker effectively protects circuits from short circuits and overload conditions. Its compact profile, measuring 46.11 mm in height, 16.76 mm in width, and 34.93 mm in depth, allows for space-saving installations.
The thermal tripping mechanism provides precise overcurrent protection. Toggle switch enables easy resetting after fault clearance. Direct mount design ensures robust and stable fitting. Screw terminals allow secure electrical connections.
Complies with CE and RoHS standards for quality assurance. Rated for multiple voltages suitable for diverse applications.
This Thermal Circuit Breaker is ideal for electrical automation, industrial control panels, and other equipment requiring dependable circuit protection. Browse the full range of TE Connectivity circuit breakers and accessories on EnvMart for comprehensive electrical solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This thermal circuit breaker has a current rating of 5A, suitable for protecting electrical circuits.
The breaking capacity of this model is 1000A, which supports medium break time performance.
It has a height of 46.11 mm, a width of 16.76 mm, and a depth of 34.93 mm, allowing for compact installations.
This circuit breaker is rated for 250V AC and 50V DC applications, making it versatile for various uses.
It features a direct mounting type with a mount hole size of 18.8 mm, facilitating straightforward installation.
It uses a thermal tripping mechanism, which provides reliable overcurrent protection.
This model is equipped with a toggle switch reset actuator, allowing for easy manual reset after a fault.
It complies with CE and RoHS standards, ensuring adherence to quality and environmental regulations.
It features screw-type terminals, which facilitate secure electrical connections during installation.
This thermal circuit breaker is designed as a 1-pole unit, suitable for single circuit protection.
It may trip between 101% and 145% of the rated current and must trip at 145% at 25°C.
The circuit breaker is manufactured in China, as indicated by its country of origin.
