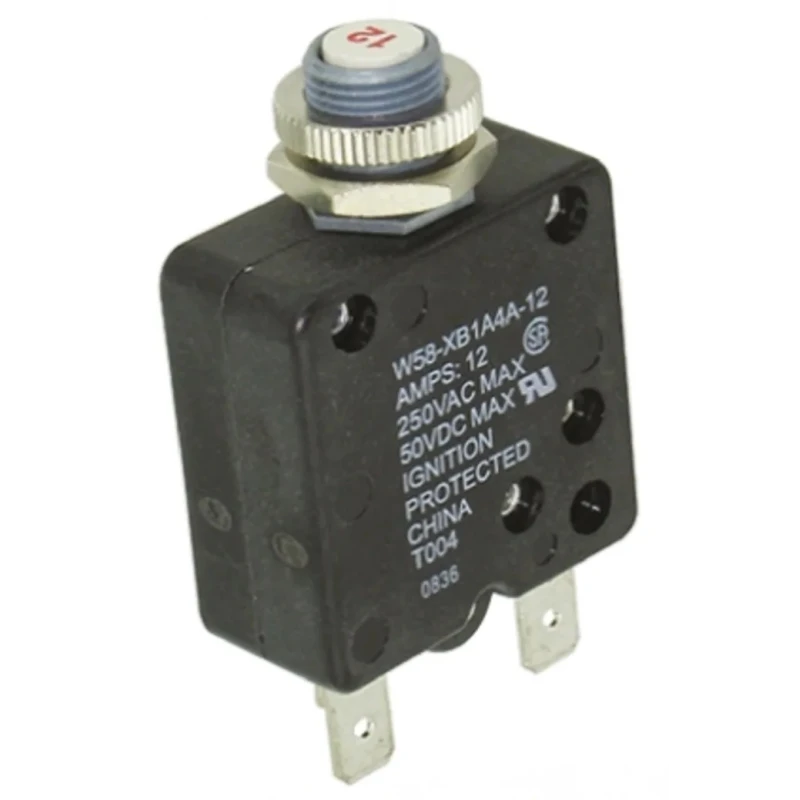

TE Connectivity Thermal Circuit Breaker W58-XB1A4A-12 12A Current Rating 1-Pole Direct Mount 250V AC 50V DC
Specifications
| Country of Origin | India |
|---|---|
| Range | 0.5 to 30 A |
| Brand | TE Connectivity |
| Model | W58-XB1A4A-12 |
| Width | 16.76mm |
| Mount Type | Direct |
| Current Rating | 12A |
| Series | W58 |
| Terminal type | Screw |
| Breaking Capacity | 1000A |
| Number of Poles | 1 |
| Standards/Approvals | CE, RoHS |
| Rated AC Voltage | 250V ac |
| Rated DC Voltage | 50V dc |
| Tripping Characteristics | Trips between 101%, Must trip at 145% at 25°C, 145% of rated load |
| Tripping Mechanism | Thermal |
| Reset Actuator Type | Toggle Switch |
| Mount Hole Size | 18.8 mm |
| Break Time | Medium |
Key Features
- Designed for current ratings ranging from 0.5 to 30 A for versatile application.
- Features a thermal tripping mechanism with toggle switch reset actuator.
- Rated for 250V AC and 50V DC, suitable for various electrical circuits.
- Breaking capacity of 1000A ensures reliable circuit protection.
- Mount hole size of 18.8 mm and width of 16.76 mm provide compact installation.
- Tripping characteristics include operation between 101% and 145% of rated load.
- Equipped with screw terminal type for secure electrical connections.
- Meets CE and RoHS standards ensuring safety and compliance.
Product Description
TE Connectivity W58-XB1A4A-12 thermal circuit breaker offers dependable overcurrent protection for electrical and automation applications. Rated at 12A with a 1-pole direct mount design, this breaker supports current ranges from 0.5 to 30 A. It features a thermal tripping mechanism with a toggle switch for easy manual reset.
This breaker accommodates rated voltages of 250V AC and 50V DC, making it suitable for diverse electrical circuits in industrial, commercial, and automation systems. The device provides a breaking capacity of 1000A, ensuring robust protection during fault conditions.
Installation is facilitated by a 16.76 mm width and an 18.8 mm mount hole size, allowing for compact and secure mounting. Screw terminals enhance reliable wiring connections. The breaker’s tripping characteristics ensure it trips between 101% and must trip at 145% of the rated load at 25°C.
Compliance with CE and RoHS standards guarantees safety and environmental responsibility. The medium break time strikes a balance between swift circuit interruption and operational stability.
Designed for current ratings ranging from 0.5 to 30 A for versatile application. Features a thermal tripping mechanism with toggle switch reset actuator. Rated for 250V AC and 50V DC, suitable for various electrical circuits.
Breaking capacity of 1000A ensures reliable circuit protection. Mount hole size of 18.8 mm and width of 16.76 mm provide compact installation. Tripping characteristics include operation between 101% and 145% of rated load.
Equipped with screw terminal type for secure electrical connections. Meets CE and RoHS standards ensuring safety and compliance. Medium break time optimizes response to overcurrent conditions.
This Thermal Circuit Breaker is ideal for industrial automation, electrical control panels, and other applications requiring reliable thermal protection. For more TE Connectivity products and electrical protection devices, explore EnvMart’s comprehensive catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 12A, suitable for various electrical circuits.
The breaking capacity is 1000A, ensuring reliable circuit protection during fault conditions.
It is rated for 250V AC and 50V DC, making it versatile for different electrical applications.
The breaker trips between 101% and must trip at 145% of the rated load at 25°C.
This thermal circuit breaker features a direct mount design, facilitating compact installation.
The mount hole size is 18.8 mm, allowing for secure mounting.
The width of this model is 16.76 mm, contributing to its compact design.
It is equipped with screw terminals for secure electrical connections.
It meets CE and RoHS standards, ensuring safety and environmental compliance.
This model features a toggle switch reset actuator for easy manual reset.
It supports current ratings ranging from 0.5 to 30 A, making it versatile for various applications.
It is ideal for industrial automation, electrical control panels, and other applications requiring reliable thermal protection.
