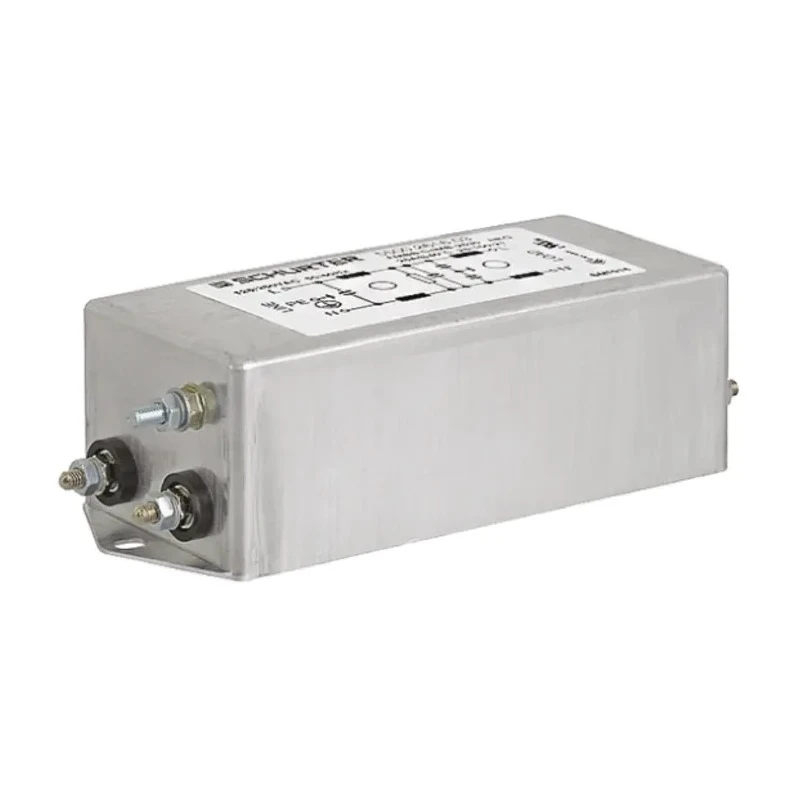

Schurter FMBB NEO RFI Filter 1 Phase 16A 250V AC 50Hz/60Hz Screw Mount Tab Termination 5500.2605.01
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schurter |
| Height | 41mm |
| Length | 90mm |
| Depth | 51mm |
| Mount Type | Screw |
| Operating Frequency | 50, 60Hz |
| Series | FMBB NEO |
| Maximum Operating Temperature | 100°C |
| Number Of Stages | 2 |
| Resistance | 8mΩ |
| Capacitance | 330nF |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 16A |
| Number of Phases | 1 |
| Leakage Current | 500μA |
| Maximum Voltage | 250V ac |
| Inductance | 650μH |
| Standards/Approvals | UL1283 |
| Termination Style | Tab |
| Power Loss | 4.1W |
Key Features
- Two-stage broad band attenuation filter in metal housing for chassis mount applications.
- Effective against symmetrical and asymmetrical interferences from 100kHz to 300MHz frequency range.
- Screw mount type with tab termination style for secure installation.
- Designed according to IEC/EN 60950 standards for equipment safety compliance.
- Operating frequency supports both 50Hz and 60Hz systems.
- Capacitance and inductance values optimized at 330nF and 650μH respectively.
- Leakage current limited to 500μA ensuring safety in sensitive environments.
- Works reliably in temperature ranges from -25°C to 100°C.
Product Description
Schurter 5500.2605.01 FMBB NEO Series is a high-performance, two-stage single-phase RFI Filter designed for industrial use including frequency converters and UPS systems. It is housed in a durable metal chassis which allows for secure screw mounting and tab style termination.
The filter effectively suppresses both symmetrical and asymmetrical electromagnetic interferences within the frequency range of 100kHz to 300MHz, making it ideal for environments with significant electrical noise disturbances.
Operating at 250V AC voltage with a maximum current rating of 16A, it supports a dual frequency range of 50Hz to 60Hz. Key electrical parameters include a capacitance of 330nF and an inductance of 650μH, which contribute to its attenuation capabilities.
This filter complies with IEC/EN 60950 equipment safety standards and carries UL1283 certification, ensuring it meets stringent quality and safety requirements. It operates reliably within a temperature range of -25°C to 100°C and has a resistance of only 8mΩ, which limits power loss to 4.1W.
The compact dimensions of 90mm length, 51mm depth, and 41mm height allow for easy integration into various industrial equipment panels and enclosures. Its low leakage current of 500μA makes it suitable for use in sensitive electronic devices.
Two-stage broad band attenuation filter in metal chassis for industrial applications. Effective suppression of symmetrical and asymmetrical interference from 100kHz to 300MHz. Supports operation at 16A, 250V AC, 50/60Hz power systems.
Qualified according to IEC/EN 60950 and UL1283 standards. Compact dimensions facilitate easy mounting and integration. Low leakage current and resistance reduce power loss and enhance safety. Suitable for use in frequency converters, UPS systems, and other industrial equipment.
This Schurter FMBB NEO filter is a reliable solution to improve electromagnetic compatibility in industrial, manufacturing, and power supply applications. Its robust design and certification make it a trusted component for reducing RFI disturbances and protecting sensitive electronics.
Explore more components and filters from Schurter and related categories at EnvMart for high-quality industrial electronic components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating of this model is 16A.
It supports a maximum voltage of 250V AC.
The filter operates at frequencies of 50Hz and 60Hz.
The capacitance value is optimized at 330nF.
The dimensions are 90mm in length, 51mm in depth, and 41mm in height.
It uses a screw mount type for secure installation.
The inductance value is 650μH.
It operates reliably within a temperature range from -25°C to 100°C.
The leakage current is limited to 500μA.
It complies with IEC/EN 60950 and carries UL1283 certification.
The resistance is only 8mΩ, which limits power loss to 4.1W.
It is suitable for use in frequency converters, UPS systems, and other industrial equipment.
