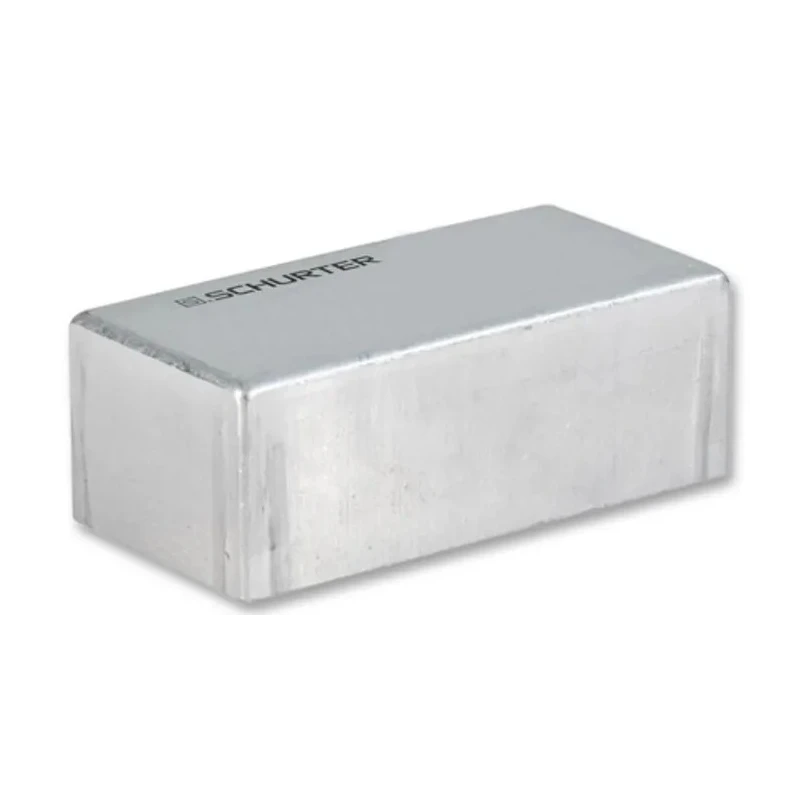

Schurter Single Phase Through Hole RFI Filter 16 A 250V AC 50Hz, 60 Hz Aluminium Housing PC Pin Termination FMAB-72 5500.2025
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schurter |
| Height | 25.5mm |
| Length | 70mm |
| Depth | 34.5mm |
| Mount Type | Through Hole |
| Operating Frequency | 50, 60Hz |
| Series | FMAB-72 |
| Maximum Operating Temperature | 100°C |
| Number Of Stages | 1 |
| Resistance | 1mΩ |
| Capacitance | 100nF |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 16A |
| Number of Phases | 1 |
| Leakage Current | 500μA |
| Maximum Voltage | 250V ac |
| Inductance | 2mH |
| Termination Style | PC Pin |
Key Features
- Features an aluminium housing providing excellent shielding against interference.
- Single stage filter with a capacitance of 100nF and inductance of 2mH.
- Mounting style is through hole with PC pin termination for secure PCB installation.
- Designed to operate within temperatures ranging from -25°C to 100°C.
- Leakage current is maintained at 500μA ensuring efficient noise suppression.
- Compact dimensions of 70mm length, 34.5mm depth, and 25.5mm height to fit in constrained spaces.
- Resistance is low at 1mΩ to minimize power loss.
- No specific standards or approvals are declared.
Product Description
Schurter 5500.2025 is a high-quality single phase RFI (Radio Frequency Interference) filter engineered for power line noise suppression in electronic circuits and systems. It is designed to handle a maximum current of 16A and a maximum AC voltage of 250V, supporting frequencies of 50 Hz and 60 Hz, making it suitable for global power applications.
This filter utilizes a single stage configuration enclosed in a robust aluminium housing, providing excellent electromagnetic shielding and durability in industrial and commercial environments. The through hole mounting style with PC pin termination ensures reliable and stable installation on printed circuit boards.
Key electrical parameters include a capacitance of 100nF and inductance of 2mH, which contribute to effective filtering of noise and interference from the power lines. The device operates optimally within a temperature range from -25°C to 100°C and maintains a low leakage current of 500μA to prevent unnecessary power loss. Its low resistance of 1mΩ further enhances efficiency.
Physical dimensions of the filter are compact, measuring 70mm in length, 34.5mm in depth, and 25.5mm in height, allowing integration into space-constrained electronic assemblies. Aluminium housing provides high shielding effectiveness.
Single stage filtering targets common noise frequencies. Through hole mounting with PC pin termination ensures secure placement. Wide operating temperature range supports diverse environments. Low leakage current and resistance maximize efficiency.
Compact size eases integration into electronic devices.
This filter is ideal for use in industrial electronics, power supplies, and protection of sensitive equipment from electromagnetic interference. It supports reliable operation in commercial and manufacturing applications requiring stable power quality.
EnvMart offers this Schurter FMAB-72 series RFI Filter for customers seeking high-performance power line noise suppression components trusted for durability and compliance with typical industrial conditions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating of this RFI filter is 16A.
This model operates at a maximum voltage of 250V AC.
The dimensions of the filter are 70mm in length, 34.5mm in depth, and 25.5mm in height.
The capacitance value of this filter is 100nF.
The inductance of this RFI filter is 2mH.
The operating temperature range for this unit is from -25°C to 100°C.
This filter uses PC pin termination for secure PCB installation.
The leakage current for this model is maintained at 500μA.
This filter is designed for through hole mounting.
The resistance of this RFI filter is low at 1mΩ.
This filter supports operating frequencies of 50Hz and 60Hz.
This RFI filter belongs to the FMAB-72 series.
