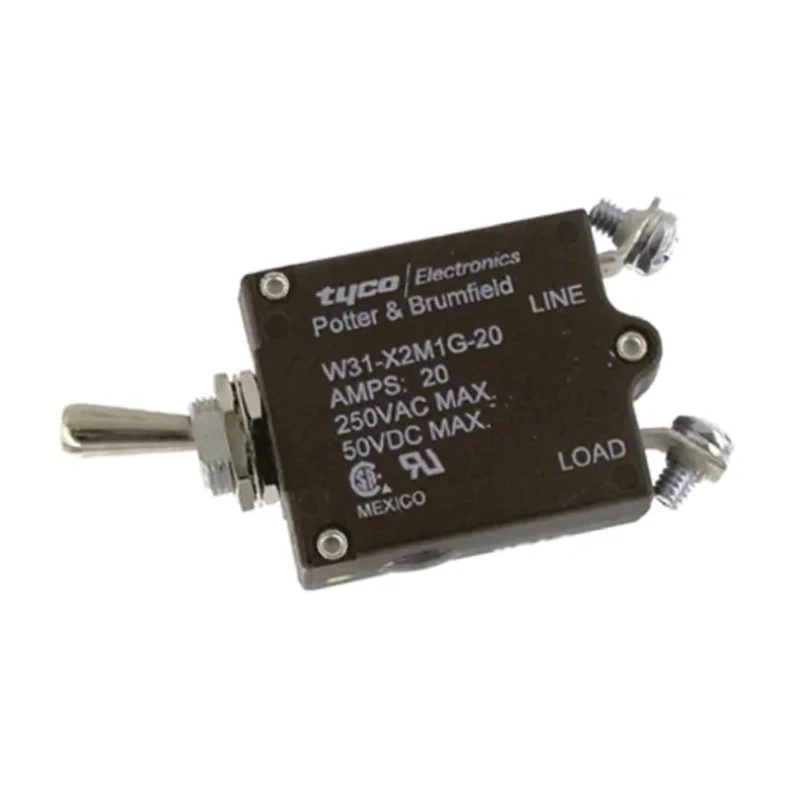

TE Connectivity Thermal Circuit Breaker 0.5 to 50 A Range 20A Current Rating 1-Pole Direct Mount W31-X2M1G-20
Specifications
| Country of Origin | India |
|---|---|
| Range | 0.5 to 50 A |
| Brand | TE Connectivity |
| Model | W31-X2M1G-20 |
| Depth | 2.035mm |
| Width | 17.52mm |
| Mount Type | Direct |
| Current Rating | 20A |
| Series | W31 |
| Terminal type | Screw |
| Breaking Capacity | 1000A |
| Number of Poles | 1 |
| Standards/Approvals | RoHS, CE |
| Rated AC Voltage | 240V ac |
| Rated DC Voltage | 50V dc |
| Tripping Characteristics | Will continuously carry 100% of rating, Trip-free operation, Ten times rated current (Resettable Overload Capacity), May trip between 101% and 134% |
| Tripping Mechanism | Thermal |
| Reset Actuator Type | Toggle Switch |
| Mount Hole Size | 3.33 mm |
| Break Time | Medium |
Key Features
- Features a thermal tripping mechanism for consistent overload protection.
- Equipped with a toggle switch reset actuator for easy manual reset.
- Rated for 240V AC and 50V DC operational voltages.
- Breaking capacity of 1000A ensures secure circuit interruption.
- Compact dimensions including 17.52mm width and 2.035mm depth save panel space.
- Screw-type terminals provide secure and reliable electrical connections.
- Mounts directly with a 3.33mm hole size for straightforward installation.
- Meets RoHS and CE standards for safety and environmental compliance.
Product Description
TE Connectivity W31-X2M1G-20 is a thermal circuit breaker designed for industrial and electrical applications requiring reliable overload protection with a current rating of 20A. This device operates efficiently across a range of 0.5 to 50 A, making it versatile for a broad variety of circuits.
Engineered with a robust thermal tripping mechanism, the breaker ensures trip-free operation, allowing continuous carrying of 100% of its rated current. Its toggle switch reset actuator facilitates convenient manual resets without the need for tool intervention.
The breaker supports rated voltages of 240V AC and 50V DC, suitable for diverse power systems, with a breaking capacity rated at 1000A to handle significant fault currents safely. Its compact size, featuring a 17.52mm width and 2.035mm depth, allows it to fit within limited panel spaces while maintaining ease of access.
The mounting system is direct with a hole size of 3.33 mm, and terminal connections utilize screw-type fasteners to ensure secure and stable wiring. This circuit breaker complies with RoHS and CE standards, ensuring adherence to environmental and safety regulations.
Thermal tripping mechanism for overload protection. Toggle switch reset actuator for manual reset ease. Rated for 240V AC and 50V DC operation. 1000A breaking capacity for high fault current resilience. Compact form factor with 17.52mm width and 2.035mm depth.
Screw terminal type connections. Direct mount installation with a 3.33 mm hole size. Compliance with RoHS and CE standards. Trip-free design enabling continuous rated current carrying. Trips between 101% and 134% rated current for overload.
This Thermal Circuit Breaker is ideal for industrial automation, electrical panels, and control systems requiring solid and safe circuit protection. Its reliability and compliance make it suitable for manufacturing, construction, HVAC, and various commercial electrical applications.
Explore the range of thermal breakers on EnvMart for enhanced electrical safety and system protection.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This thermal circuit breaker has a current rating of 20A.
It is rated for operational voltages of 240V AC and 50V DC.
The breaking capacity is rated at 1000A, which allows it to handle significant fault currents safely.
The breaker has a width of 17.52mm and a depth of 2.035mm.
It features a direct mount installation with a hole size of 3.33mm.
It utilizes screw-type terminals for secure and reliable electrical connections.
The breaker is equipped with a thermal tripping mechanism for consistent overload protection.
It can continuously carry 100% of its rated current and may trip between 101% and 134% of the rated current.
It complies with RoHS and CE standards for safety and environmental compliance.
This model features a toggle switch reset actuator for easy manual resets.
It is suitable for industrial automation, electrical panels, and control systems requiring reliable circuit protection.
This model belongs to the W31 series of thermal circuit breakers.
