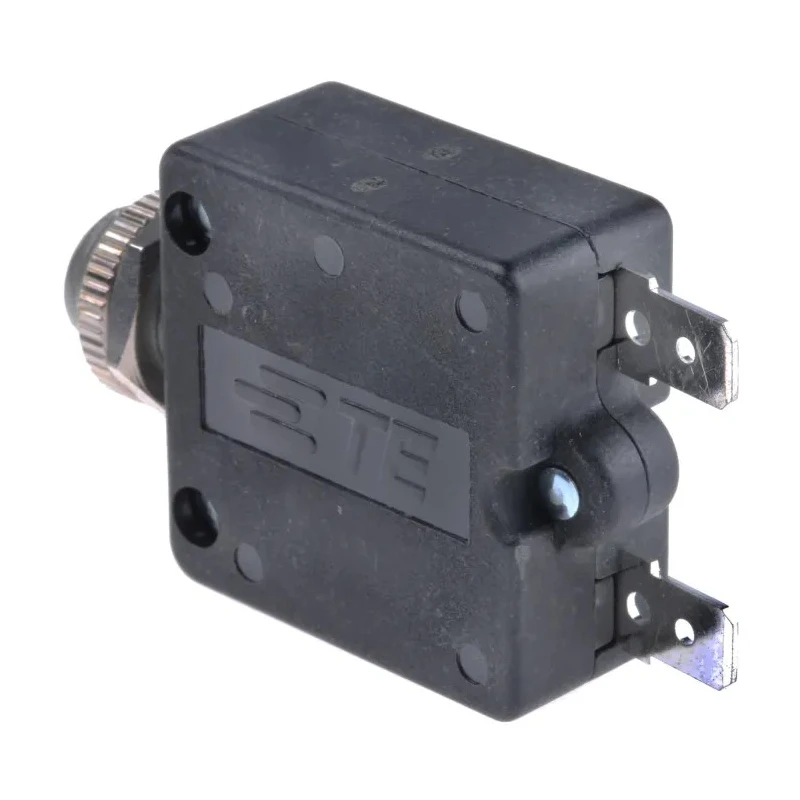

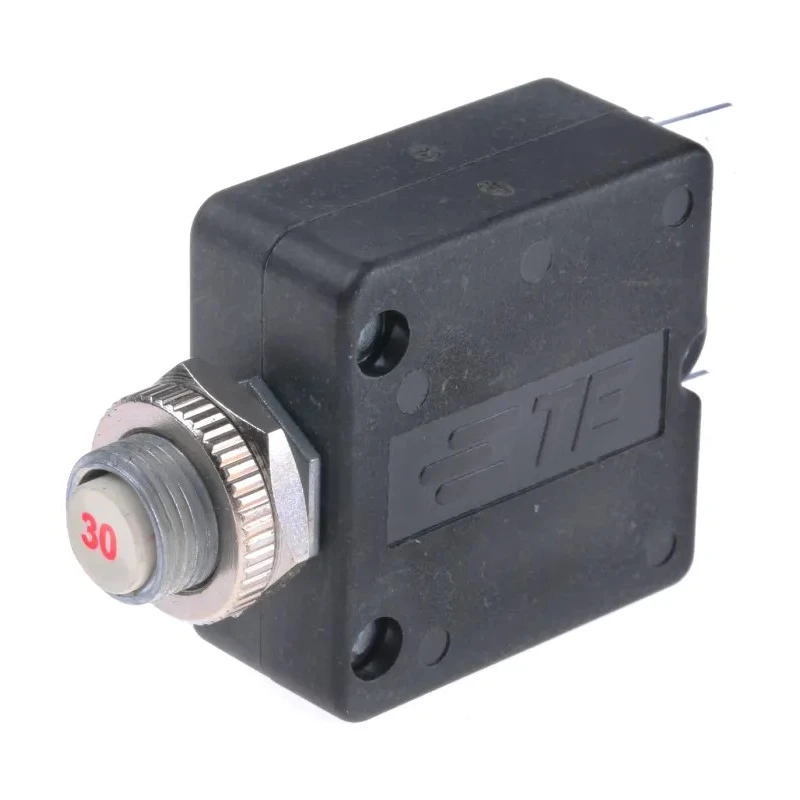

TE Connectivity Thermal Circuit Breaker 30A 1-Pole Direct Mount W58-XB1A4A-30
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 46.11mm |
| Model | W58-XB1A4A-30 |
| Depth | 34.93mm |
| Width | 16.76mm |
| Mount Type | Direct |
| Current Rating | 30A |
| Series | W58 |
| Terminal type | Screw |
| Breaking Capacity | 1000A |
| Number of Poles | 1 |
| Standards/Approvals | RoHS, CE |
| Rated AC Voltage | 250V ac |
| Rated DC Voltage | 50V dc |
| Tripping Characteristics | Trips between 101%, 145% of rated load, Must trip at 145% at 25°C |
| Tripping Mechanism | Thermal |
| Reset Actuator Type | Toggle Switch |
| Mount Hole Size | 18.8 mm |
| Break Time | Medium |
Key Features
- Designed for direct mount installation ensuring secure fitting.
- Equipped with a toggle switch reset actuator for ease of use.
- Trips between 101% and 145% of rated load with medium break time.
- Suitable for use with rated AC voltage of 250V and DC voltage of 50V.
- Breaking capacity of 1000A ensures protection under fault conditions.
- Terminal type is screw for solid electrical connections.
- Compact dimensions with width 16.76mm, height 46.11mm, and depth 34.93mm.
- Complies with RoHS and CE standards, assuring quality and safety.
Product Description
TE Connectivity W58-XB1A4A-30 thermal circuit breaker is a 1-pole device designed for circuit protection with a 30A current rating and direct mount capability. It features a robust thermal tripping mechanism that activates between 101% and 145% of the rated load, ensuring dependable protection against overloads.
This circuit breaker includes a toggle switch reset actuator for easy manual resetting after trip events. The product supports electrical systems operating at 250V AC or 50V DC and offers a high breaking capacity of 1000A, enabling it to safely interrupt significant fault currents with a medium break time performance.
It comes with screw terminals to guarantee secure and reliable connections within electrical panels. The compact form factor with a width of 16.76mm, height of 46.11mm, and depth of 34.93mm makes it suitable for space-constrained installations.
TE Connectivity's W58 series complies with RoHS and CE regulations, affirming adherence to environmental and safety standards.
This Thermal Circuit Breaker is ideal for applications in electronics and electrical systems across industrial automation, control panels, HVAC systems, and general electrical distribution requiring responsive overload protection.
Designed for direct mount installation ensuring secure fitting. Equipped with a toggle switch reset actuator for ease of use. Trips between 101% and 145% of rated load with medium break time. Suitable for use with rated AC voltage of 250V and DC voltage of 50V.
Breaking capacity of 1000A ensures protection under fault conditions. Terminal type is screw for solid electrical connections. Compact dimensions with width 16.76mm, height 46.11mm, and depth 34.93mm. Complies with RoHS and CE standards, assuring quality and safety.
For reliable thermal overload protection, explore the TE Connectivity W58 series thermal breakers available at EnvMart for industrial and commercial electrical installations.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This thermal circuit breaker has a current rating of 30A.
It has a breaking capacity of 1000A, allowing it to safely interrupt significant fault currents.
This unit is suitable for use with rated AC voltage of 250V and DC voltage of 50V.
The dimensions are width 16.76mm, height 46.11mm, and depth 34.93mm.
The tripping mechanism activates between 101% and 145% of the rated load, ensuring protection against overloads.
It is equipped with a toggle switch reset actuator for easy manual resetting after a trip event.
This model is designed for direct mount installation, ensuring a secure fitting.
It complies with RoHS and CE standards, assuring quality and safety.
It features screw terminals for solid electrical connections.
The breaker has a medium break time performance, allowing for effective fault interruption.
This thermal circuit breaker is ideal for use in industrial automation, control panels, HVAC systems, and general electrical distribution requiring overload protection.
The mount hole size required for installation is 18.8 mm.
