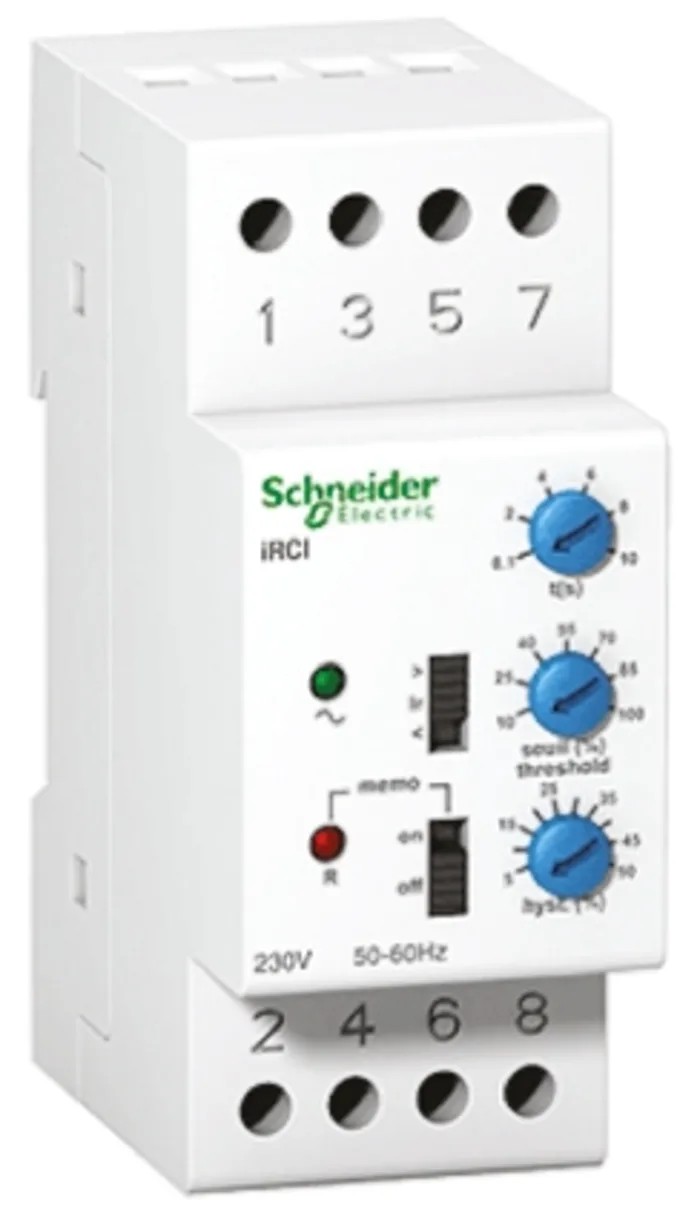

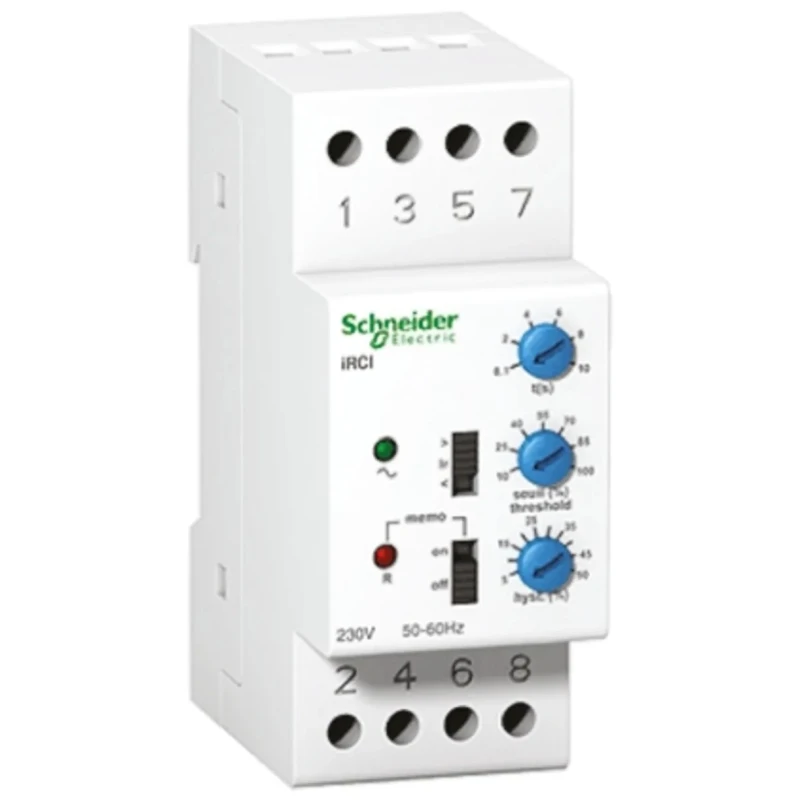

Schneider Electric Acti 9 iRC Monitoring Relay, SPDT Contact, Undervoltage Function, DIN Rail Mount, 230V AC 24V DC A9E21182
Specifications
| Country of Origin | Italy |
|---|---|
| Brand | Schneider Electric |
| Height | 88.1mm |
| Function | Undervoltage Monitoring |
| Length | 67mm |
| Model | A9E21182 |
| IP Rating | IP20 |
| Width | 36mm |
| Mount Type | DIN Rail |
| Series | Acti 9 iRC |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | +55°C |
| Terminal type | Tunnel |
| Standards/Approvals | RoHS |
| Switching Voltage | 240V |
| Contact Current | 8A |
| Supply DC Voltage | 24 V dc |
| Supply AC Voltage | 230V ac |
Key Features
- Equipped with single-pole double-throw (SPDT) contacts for versatile switching.
- Designed for DIN rail mounting to facilitate easy installation.
- Suitable for use with 230 V AC supply voltage and 24 V DC control voltage.
- Supports switching voltage up to 240V and contact current rated at 8A.
- Compact dimensions measuring 67mm length, 88.1mm height, and 36mm width.
- IP20 rated enclosure provides protection against solid objects larger than 12 mm.
- Operates reliably within temperature range of -55°C to +55°C.
- Consumption power of 3 VA ensures low operational power usage.
Product Description
Schneider Electric Acti 9 iRC Monitoring Relay model A9E21182 is a high-quality supervision device providing undervoltage monitoring with an SPDT contact configuration. Designed for mounting on DIN rails, it allows quick and secure installation in electrical panels. Operating on a supply voltage of 230 V AC and control voltage of 24 V DC, this relay suits diverse industrial electrical applications.
This compact relay measures 67mm in length, 88.1mm in height, and 36mm in width, fitting conveniently within control cabinets. Rated IP20, it is protected against ingress of solid bodies larger than 12 mm, safeguarding internal components during operation.
Its contact current rating of 8A and switching voltage capacity up to 240 V make it suitable for controlling a wide range of electrical loads in automation and control systems. Power consumption is limited to 3 VA, enhancing energy efficiency in prolonged usage.
The relay covers a wide operating temperature range from -55°C to 55°C, ensuring stable behavior in both cold and warm environments. Additionally, it meets RoHS compliance, emphasizing environmentally conscious manufacturing standards.
Manufactured in Italy, this relay is part of the trusted Schneider Electric Acti 9 iRC series, ideal for industrial, commercial, and building automation applications requiring reliable voltage monitoring and switching.
Equipped with single-pole double-throw (SPDT) contacts for versatile switching. Designed for DIN rail mounting for easy integration in electrical panels. Supports supply voltage of 230 V AC and control voltage of 24 V DC.
Switching voltage rated up to 240 V and contact current of 8 A. Compact dimensions of 67mm length, 88.1mm height, and 36mm width. IP20 rated enclosure protects against solid objects larger than 12 mm. Wide operating temperature range from -55°C to +55°C.
Low power consumption of 3 VA for energy efficiency. RoHS compliance ensures environmentally safe manufacturing. Made in Italy, part of the Acti 9 iRC series. Explore more Schneider Electric Monitoring Relays and automation components in the Electronics & Electricals category at EnvMart for your industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates on a supply voltage of 230 V AC and a control voltage of 24 V DC.
It features a single-pole double-throw (SPDT) contact configuration for versatile switching applications.
The relay supports a maximum switching voltage of up to 240 V.
The contact current rating for this unit is 8 A.
This relay has compact dimensions measuring 67 mm in length, 88.1 mm in height, and 36 mm in width.
It has an IP20 rating, providing protection against solid objects larger than 12 mm.
The relay operates reliably within a temperature range of -55°C to 55°C.
It is designed for DIN rail mounting, facilitating easy installation in electrical panels.
The power consumption is limited to 3 VA, enhancing energy efficiency during operation.
This model meets RoHS compliance, ensuring environmentally safe manufacturing standards.
This relay is manufactured in Italy.
It is suitable for various industrial, commercial, and building automation applications requiring reliable undervoltage monitoring and switching.
