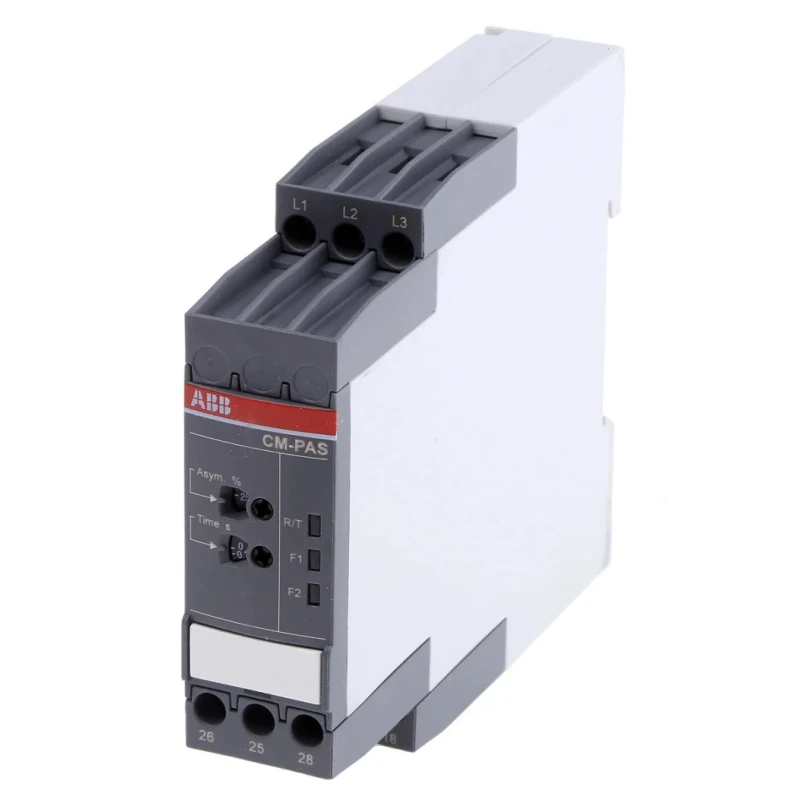

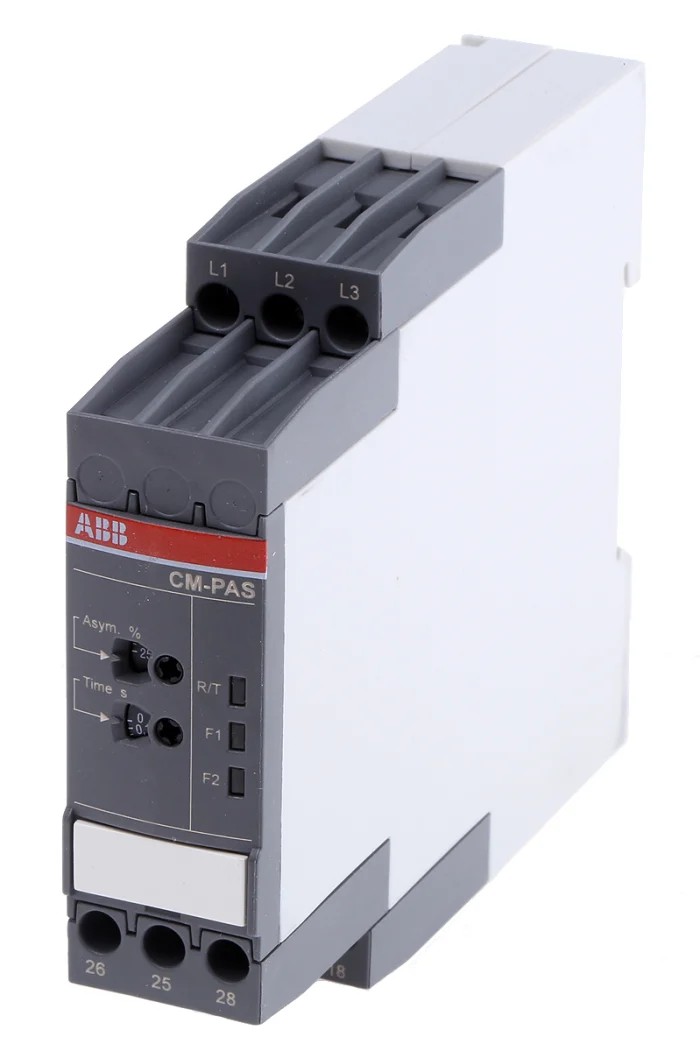

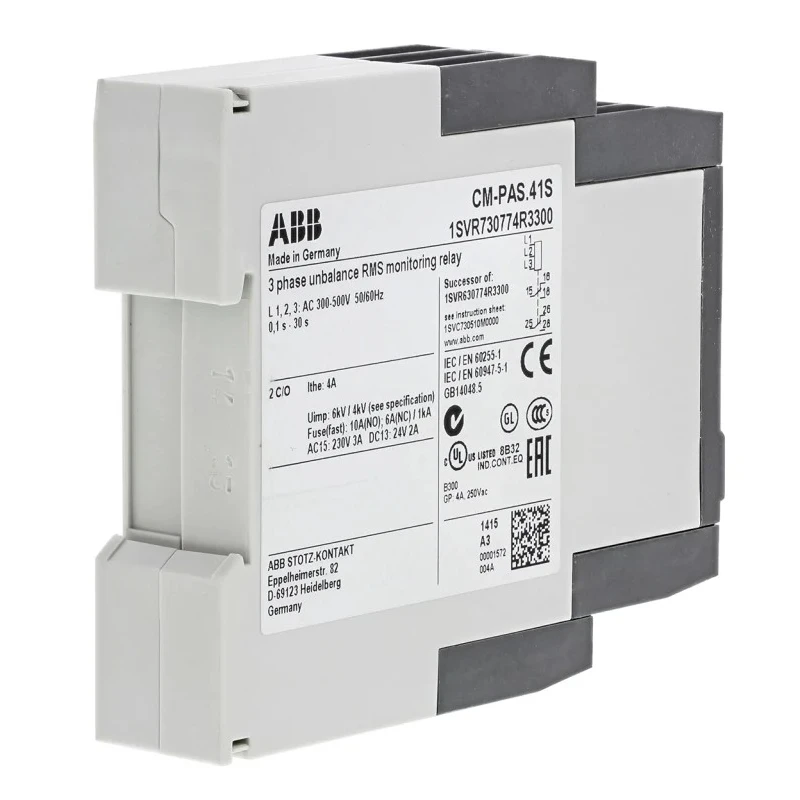

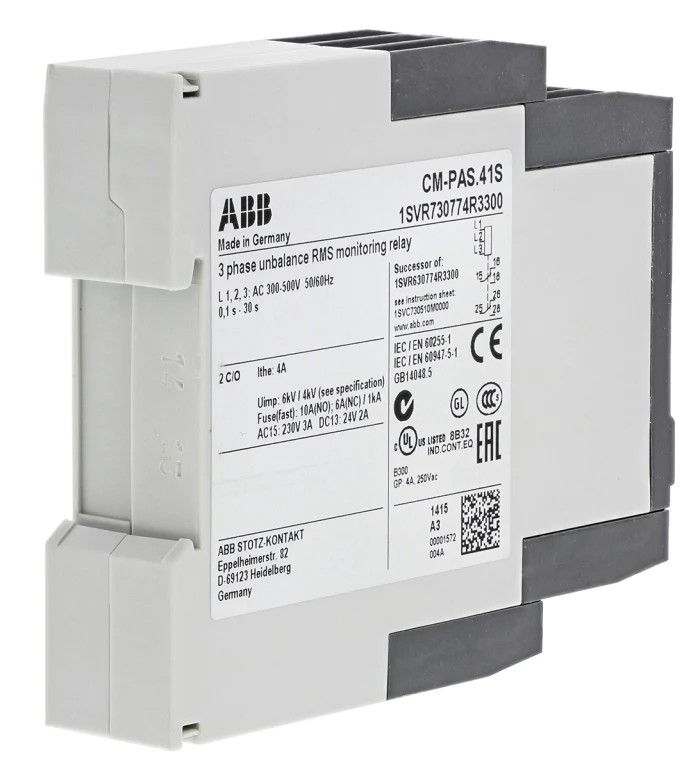

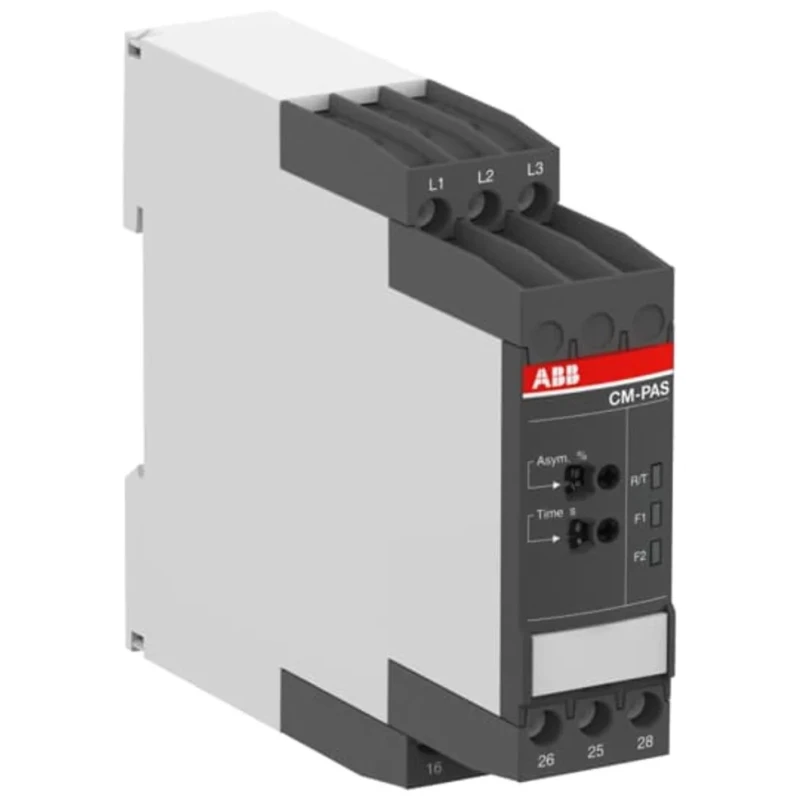

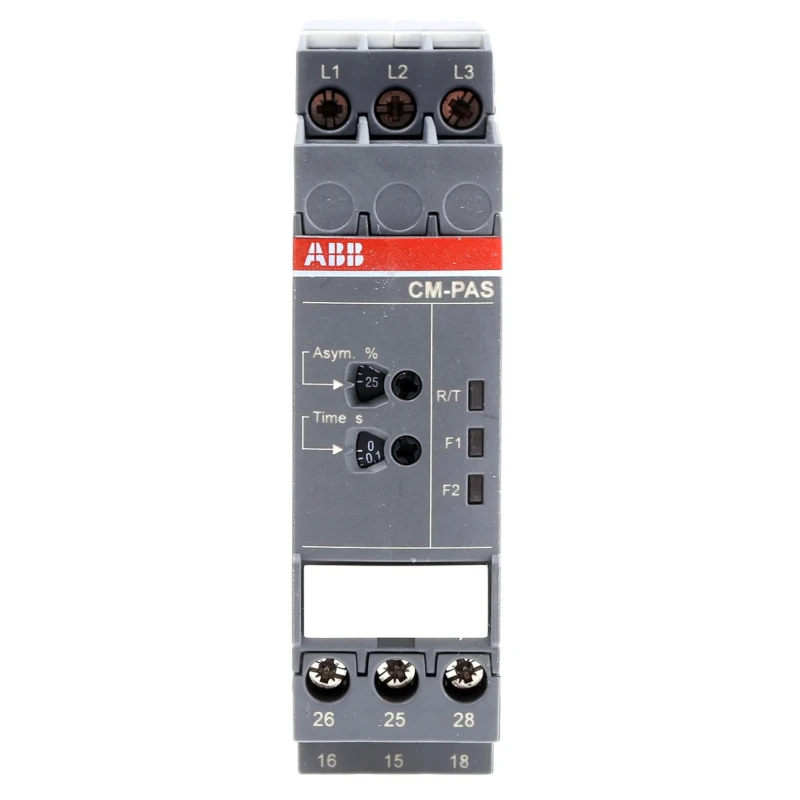

ABB 3 Phase Monitoring Relay DPDT Contact Configuration, DIN Rail Mount, 500V AC, CM-PAS Series 1SVR730774R3300 CM-PAS.41S
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | ABB |
| Height | 85.6mm |
| Function | Plug |
| Length | 103.7mm |
| Model | 1SVR730774R3300 CM-PAS.41S |
| IP Rating | IP20 |
| Width | 22.5mm |
| Mount Type | DIN Rail |
| Series | CM-PAS |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw |
| Electrical Phase | 3 |
| Standards/Approvals | UL |
| Switching Voltage | 500V ac |
| Supply AC Voltage | 500V ac |
Key Features
- The relay supports a DPDT contact configuration for versatile switching.
- It operates at a supply voltage of 500V AC suitable for industrial environments.
- DIN rail mount type enables tool-free and flexible installation.
- Designed with mechanical durability of 30 million cycles for long-lasting performance.
- Operating temperature range from -25°C to 60°C ensures reliable use in harsh conditions.
- Built-in LED indicators provide clear status signaling of faults.
- The relay has an ingress protection rating of IP20 for basic protection against solids.
Product Description
ABB 1SVR730774R3300 CM-PAS.41S is a precision-engineered 3 Phase Monitoring Relay from the CM-PAS series designed for industrial and commercial electrical systems. It monitors phase sequence, failures, and unbalances effectively to protect 3-phase machines and circuits.
With a DPDT contact configuration and a tripping delay adjustable from 0 to 30 seconds, this relay allows customized control and protection schemes. It supports a switching voltage and supply voltage of 500V AC, suitable for high voltage industrial applications.
The relay mounts conveniently on standard DIN rails without requiring additional tools, making installation and maintenance straightforward. Mechanical endurance rated at 30 million cycles ensures the relay maintains reliable performance over long-term use.
Operating temperature from -25°C up to +60°C extends suitability across varied industrial environments, while the IP20 ingress protection safeguards against accidental contact and debris.
The DPDT contact configuration provides flexibility in switching applications. Mechanical durability up to 30 million cycles for extended service life. Adjustable tripping delay from 0 to 30 seconds for tailored protection response.
LED status indicators offer quick visual diagnostics of operational status. Compact and space-saving DIN rail mounting ensures easy integration into control panels. IP20 rated protection suitable for electrical enclosures in commercial and industrial use.
Applications include conveyor belts, laboratories, security devices, traffic management systems, and other industrial automation environments where phase monitoring and fault detection are critical.
Manufactured in Germany, this ABB Monitoring Relay combines advanced electrical protection with robust mechanical design to ensure safe operation of complex 3-phase electrical equipment.
Explore more high-quality relays and monitoring devices in EnvMart's extensive catalog to meet your industrial automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this monitoring relay is 60°C.
This model features a DPDT (Double Pole Double Throw) contact configuration, allowing for versatile switching applications.
It is designed for DIN rail mounting, enabling tool-free and flexible installation.
The relay operates at a supply voltage of 500V AC, suitable for high voltage industrial applications.
The operating temperature range for this relay is from -25°C to 60°C, making it suitable for various industrial environments.
This unit uses screw type terminals for secure electrical connections.
The height of this monitoring relay is 85.6 mm.
The relay has an ingress protection rating of IP20, providing basic protection against solid objects.
It has a mechanical durability rated for up to 30 million cycles, ensuring long-lasting performance.
Yes, it features built-in LED indicators that provide clear status signaling of faults.
The relay is compliant with UL standards, ensuring it meets safety and performance requirements.
It is suitable for applications including conveyor belts, laboratories, security devices, and traffic management systems where phase monitoring is critical.
