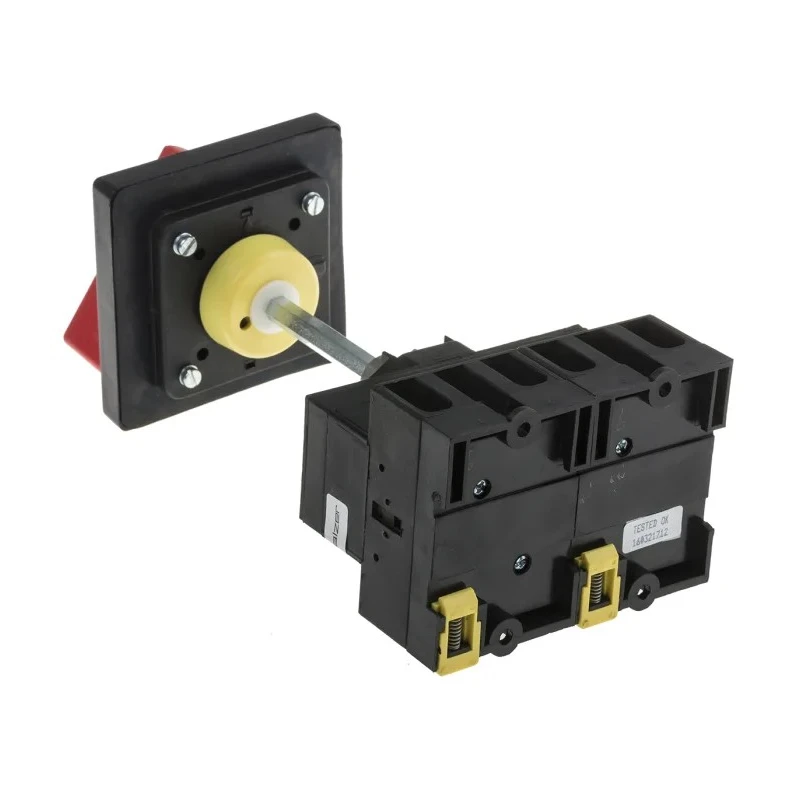

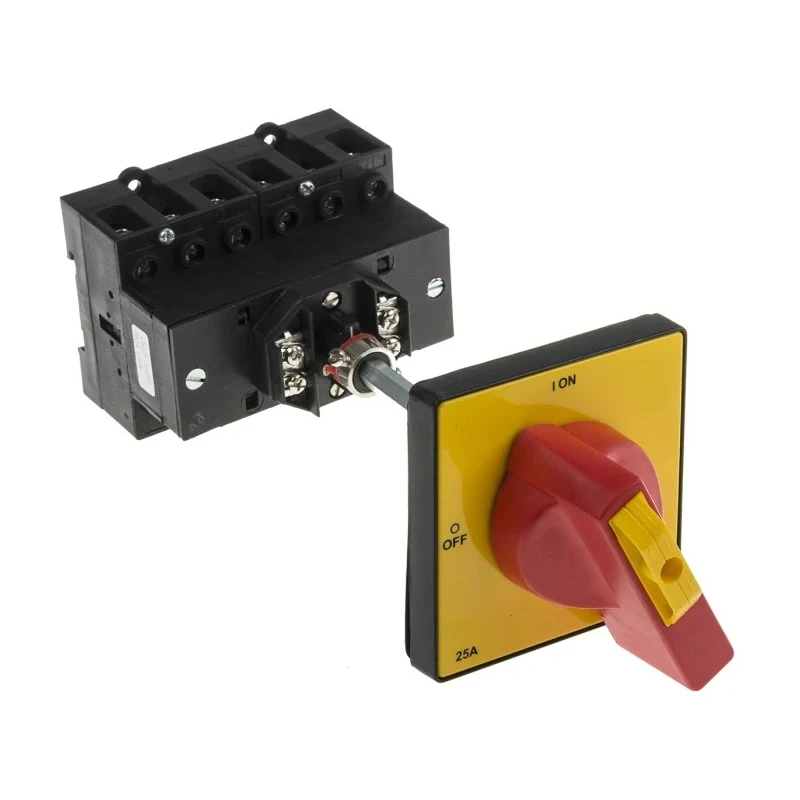

RS PRO 6-Pole DIN Rail Isolator Switch IP65, 32A, 22kW, Red Handle IP65

RS PRO IP65 6-Pole DIN Rail Isolator Switch is engineered for robust and safe manual motor control and electrical isolation applications in industrial, commercial, and manufacturing environments.

This high-quality, non-fused isolator switch features six poles and is designed for mounting on a standard 35mm DIN rail, facilitating variable cable entry positions due to its undrilled body. The red handle acts as a clear visual indicator of the switch position, with interlocking and padlock capabilities to prevent accidental operation.

Rated at 32A switching current and 22kW power at 690V AC, it supports single and three-phase circuits and provides reliable local electrical isolation critical for maintenance and safety procedures. The IP65 rating ensures resistance to dust and water ingress, making it suitable for harsh industrial environments.

Key functional aspects include screw terminal connections for dependable wiring, operation at temperatures ranging from -25°C to 40°C, and compliance with international standards such as EN, UL, RoHS, and IEC, guaranteeing safety and quality performance.

The device has compact dimensions (98mm length, 139mm width, 56mm depth) with a hexagonal 8mm shaft length of 98mm, enabling secure handle operation and panel integration up to 3mm thickness. The design includes two rear holes for mounting and a depth behind the panel of 355mm.

The switch is suitable for isolating circuit breakers, transformers, transmission lines, and other electrical components requiring safe local disconnection. Ideal use cases include industrial plants, manufacturing lines, commercial electrical installations, HVAC systems, and electrical automation controls.

The manual override and safety switch features enhance operational security during equipment servicing or fault isolation. RS PRO brand ensures rigorous testing and quality assurance for reliable long-term performance. This Isolator Switch is designed for demanding environments requiring durable, efficient, and safe electrical disconnection.

Explore the full range of RS PRO electrical switchgear and isolators at EnvMart for superior control and protection solutions tailored for your industrial needs.
