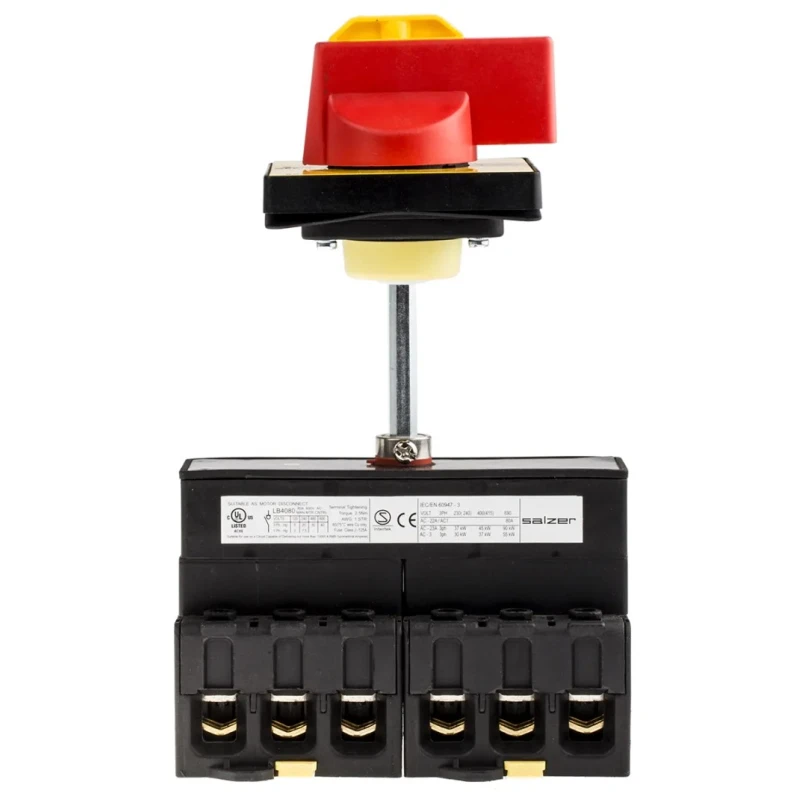

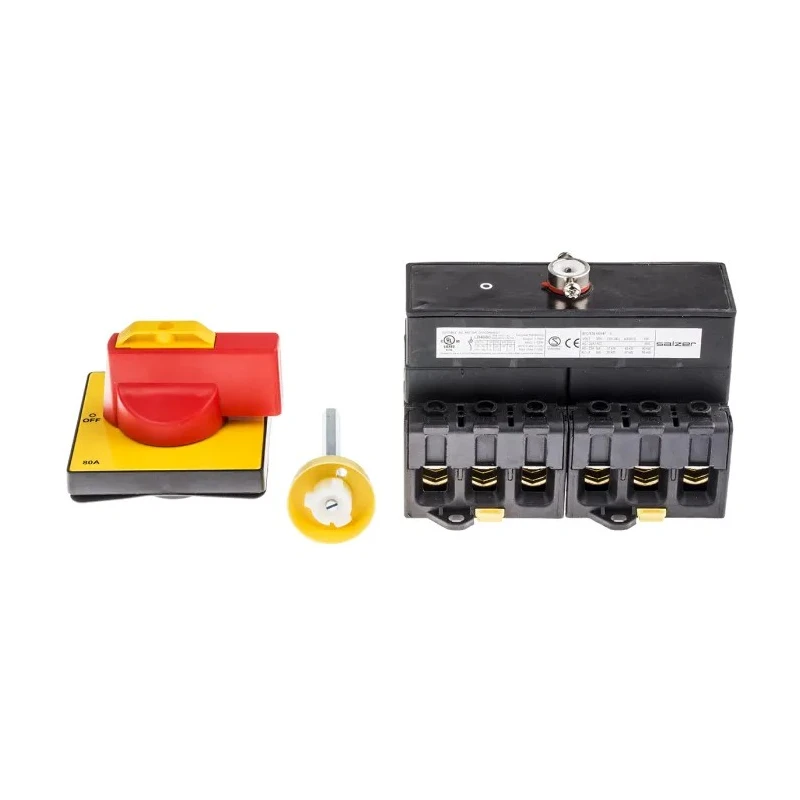

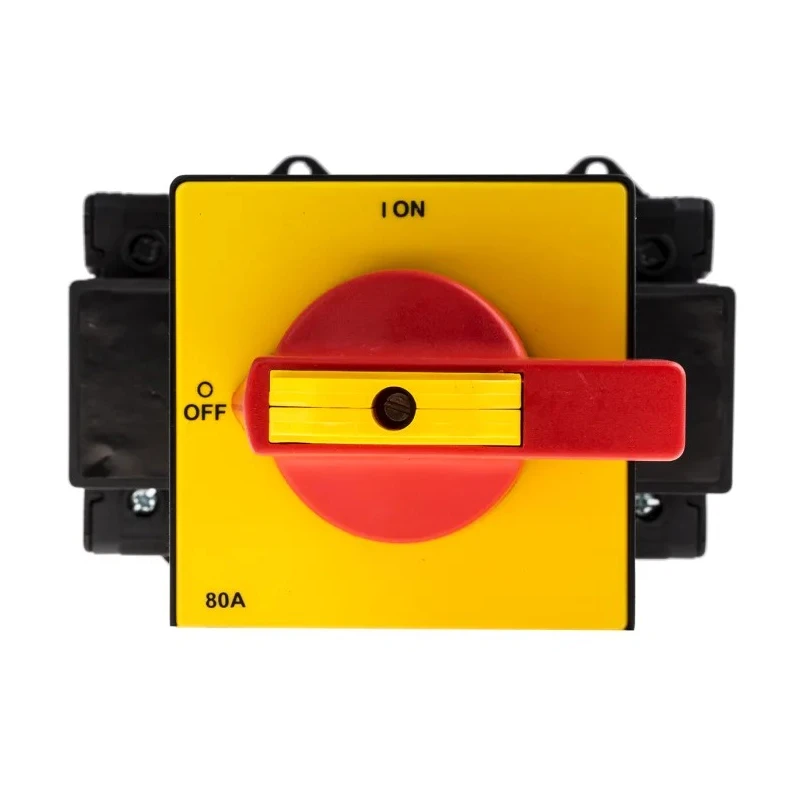

RS PRO 6-Pole DIN Rail Isolator Switch IP65, 80A, 90 kW IP65
Specifications
| Country of Origin | India |
|---|---|
| Brand | RS PRO |
| Length | 85mm |
| Model | IP65 |
| Depth | 56mm |
| IP Rating | IP65 |
| Width | 139mm |
| Mount Type | DIN Rail |
| Series | RS PRO |
| Maximum Operating Temperature | 40°C |
| Minimum Operating Temperature | -25°C |
| Switching Current | 80A |
| Terminal type | Screw |
| Handle Colour | Red |
| Number of Poles | 6 |
| Standards/Approvals | RoHS, IEC, EN, UL |
| Switching AC Voltage | 690V ac |
| Switching Power | 90kW |
Key Features
- The switch supports both 1 and 3 phase electrical configurations.
- Its IP65 rating provides protection against dust and water ingress.
- Mountable on standard 35mm DIN rails for easy installation.
- Equipped with a red handle for clear operational status indication.
- Facilitates safe disconnection and local isolation of electrical circuits.
- The handle is interlocked, allowing removal only in the "off" position.
- Designed for use in industrial and commercial electrical applications.
- Features screw type terminals for secure wiring connections.
Product Description
RS PRO IP65 6-Pole DIN Rail Isolator Switch is a high-performance switch designed to disconnect electrical equipment safely in industrial, commercial, and manufacturing environments. Operating at 80A and capable of switching power up to 90 kW, this isolator switch enables secure manual motor control and local isolation of circuits.
This non-fused isolator switch features a robust red handle that is interlocked, ensuring the handle can only be removed when the switch is in the "off" position, adding a safety layer to electrical maintenance and operation. The DIN rail mounting type allows for quick and secure installation into existing electrical enclosures and panels.
With an IP65 rating, this switch offers excellent protection against dust and water, making it suitable for harsh industrial conditions. The switch supports switching AC voltage up to 690V and is rated for both single-phase and three-phase electrical systems. Its screw terminal type guarantees reliable connections and ease of wiring.
The operating temperature range from -25°C to 40°C and compliance with key standards such as RoHS, IEC, EN, and UL further affirm its suitability for demanding electrical and automation environments.
The switch is designed for disconnection and local isolation of electrical circuits. Its handle locks in the "off" position, preventing accidental engagement. Compact and robust construction ideal for industrial use. The red handle provides clear visual feedback of switch status.
Suitable for manual motor control and general circuit isolation.
This isolator switch is essential for safe circuit maintenance and is widely used in industrial panels, electrical enclosures, and automation systems. It is a reliable component for engineers requiring durable and high-quality switching solutions. Explore more Isolator Switches and industrial electrical products at EnvMart for your automation and electrical system needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switching power of this isolator switch is 90 kW.
This model has a switching current rating of 80A.
The switch has an IP65 rating, providing protection against dust and water ingress.
It supports both single-phase and three-phase electrical configurations.
The operating temperature range is from -25°C to 40°C.
This switch is designed for mounting on standard 35mm DIN rails.
It features screw type terminals for secure wiring connections.
The dimensions of the switch are 85mm in length, 139mm in width, and 56mm in depth.
The handle is interlocked, allowing removal only when the switch is in the "off" position, enhancing safety during maintenance.
It complies with RoHS, IEC, EN, and UL standards.
The handle of this isolator switch is red, providing clear operational status indication.
The switch can handle switching AC voltage up to 690V.
