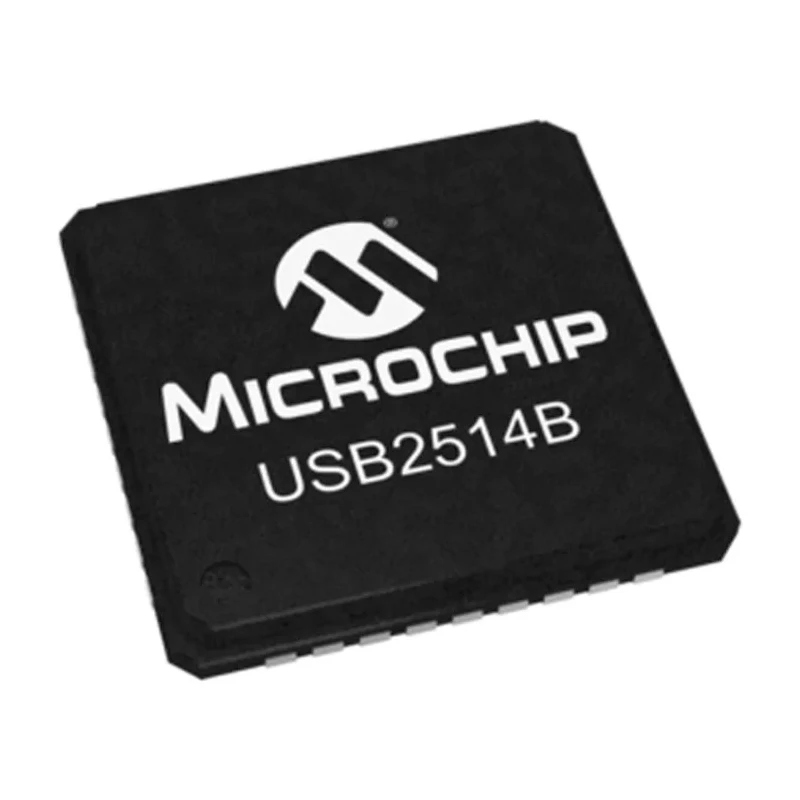

Microchip Transceiver IC 1-Channel 480 Mbps USB 2.0 3.3V-3.6V 36-Pin QFN USB2514B-AEZC

Microchip USB2514B-AEZC is a highly reliable Transceiver IC designed for USB 2.0 hub controller applications. It supports a maximum data rate of 480 Mbps with a single transceiver channel, delivering high-speed USB communication capability.

This device operates with a supply voltage range from 3.3V to 3.6V and is housed in a compact 36-pin QFN surface mount package with a height of 950μm and length of 6.15 mm, enabling space-saving PCB integration.

The USB2514B-AEZC incorporates MultiTRAK™ technology, providing a dedicated Transaction Translator for each port to maintain consistent full-speed data throughput regardless of downstream connections. Its programmable features such as PortMap, PortSwap, and PHYBoost enhance design flexibility and signal integrity.

It provides ESD protection for enhanced device robustness and complies fully with the USB 2.0 specification, including support for USB Battery Charging Specification Rev. 1.1, making it suitable for devices requiring charging capabilities through downstream ports.

Operating temperature ranges from 0°C to 85°C, making this device suitable for a wide range of industrial, consumer electronics, and computing applications requiring USB hub functionality and interface control.

High-performance USB 2.0 controller with MultiTRAK technology. Supports full, low, and high-speed USB communications. ESD protection for improved device reliability. Compact 36-pin QFN surface mount package. Operating temperature range: 0°C to 85°C for durability.

Features programmable PortMap, PortSwap, and PHYBoost for flexibility. Compliance with USB Battery Charging specification Rev. 1.1. Suitable for industrial, commercial, and consumer USB hub applications. Explore the Microchip product range on EnvMart for advanced semiconductor solutions suited to modern electronic designs.
