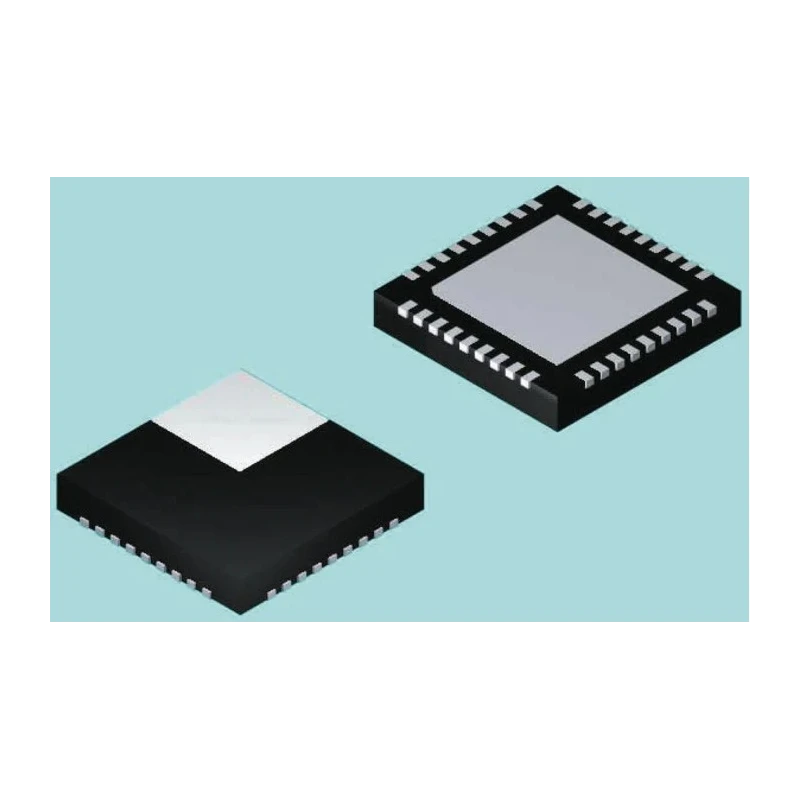

Microchip Transceiver IC 1-Channel 480 Mbps 3.3V-3.6V USB 2.0 36-Pin QFN USB2512B-AEZG

Free Delivery in India | Lowest Global Shipping Charges

Microchip Transceiver IC 1-Channel 480 Mbps 3.3V-3.6V USB 2.0 36-Pin QFN USB2512B-AEZG

Name: Microchip Transceiver IC 1-Channel 480 Mbps 3.3V-3.6V USB 2.0 36-Pin QFN USB2512B-AEZG
Brand: Microchip
SKU: 368092
Price: 2.56 USD
Availability: InStock



Category USB Interface IC Brand Microchip Condition New

Specifications

Country of Origin	India
Brand	Microchip
Height	950μm
Length	6.15mm
Model	USB2512B-AEZG
Mount Type	Surface
Series	USB251
Maximum Operating Temperature	85°C
Package Type	QFN
Sub Type	Controller
Minimum Operating Temperature	0°C
Interfaces	USB 2
Pin Count	36
Maximum Supply Voltage	3.6V
Minimum Supply Voltage	3.3V
Maximum Data Rate	480Mbps
Number of Transceivers	1
USB Specification	USB 2.0
Supported Protocols	USB 2.0

Key Features

Compliant with USB 2.0 specification supporting Hi-Speed, Full-Speed, and Low-Speed modes.
Operates with supply voltage ranging from 3.3V to 3.6V.
Features a compact 36-Pin QFN package for surface mount applications.
Includes MultiTRAK technology offering dedicated transaction translators per port for consistent throughput.
Supports USB Battery Charging specification Rev. 1.1 for Charging Downstream Ports (CDP).
Provides port mapping, port swapping, and programmable signal drive strength for PCB layout flexibility.
Ensures ESD protection and operates within 0°C to 85°C temperature range.
Ideal for high-speed USB hub controller applications with low power consumption.

Product Description

Microchip USB2512B-AEZG is a high-performance Transceiver IC designed for USB 2.0 hub controller applications requiring data transfer speeds up to 480 Mbps. This device supports Hi-Speed (480 Mbps), Full-Speed (12 Mbps), and Low-Speed (1.5 Mbps) USB communications, making it suitable for a wide range of electronics and semiconductor applications.

Operating with a supply voltage from 3.3V minimum to 3.6V maximum, the device is housed in a 36-Pin QFN surface mount package with dimensions 6.15 mm in length and 950 µm in height, facilitating space-efficient PCB design. The USB2512B-AEZG includes MultiTRAK™ technology that offers a dedicated Transaction Translator per port, ensuring consistent and high throughput even with multiple downstream connections.

The versatile PortMap and PortSwap features enable flexible port configuration and USB signal line alignment, while PHYBoost provides programmable USB signal drive strength to recover signal integrity. The IC supports the USB Battery Charging specification Rev. 1.1, which is beneficial for charging downstream ports (CDP), enhancing device functionality in power management.

This transceiver IC is well-suited for integration in industrial, consumer electronics, computer peripherals, and embedded systems requiring reliable high-speed USB communication and flexible hub controller features. The device includes essential ESD protection to enhance robustness and operates reliably within the 0°C to 85°C temperature range.

Compliant with USB 2.0 and USB Battery Charging Rev. 1.1 standards. MultiTRAK technology for dedicated transaction translation per port. PortMap and PortSwap features allow customizable port and signal configurations. PHYBoost feature enhances signal integrity for robust USB communication.

Compact 36-Pin QFN surface mount package ideal for space-constrained designs. ESD protection safeguards the device against electrostatic damage. Operates at supply voltage range of 3.3V to 3.6V. Supports multiple USB speeds: Hi-Speed, Full-Speed, and Low-Speed.

Ideal for USB hub controller and embedded electronics applications. Explore the USB Interface IC category on EnvMart for more products like the USB2512B-AEZG from Microchip and related high-quality semiconductor components.
