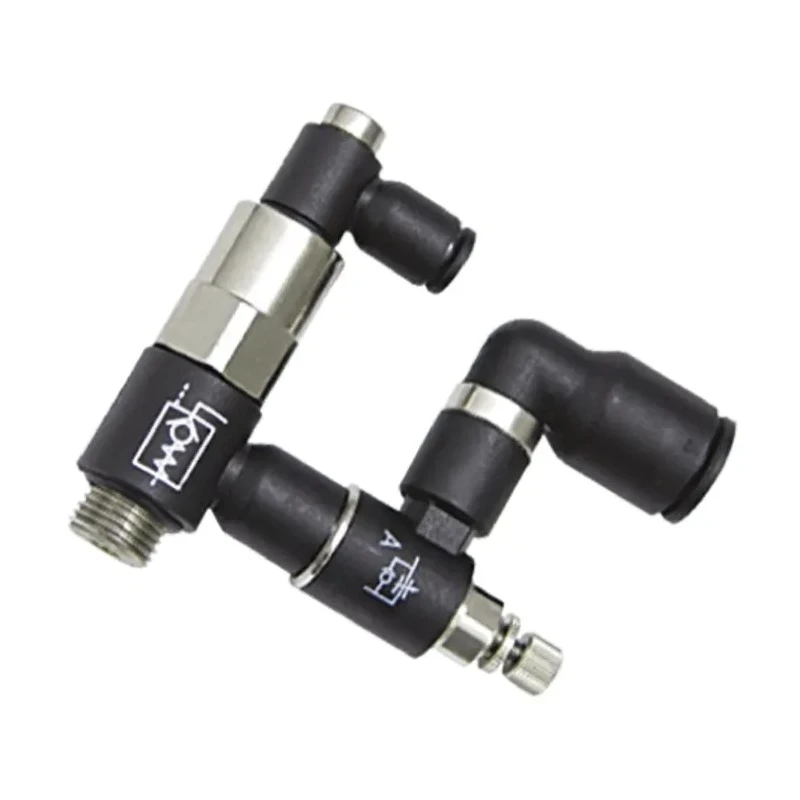

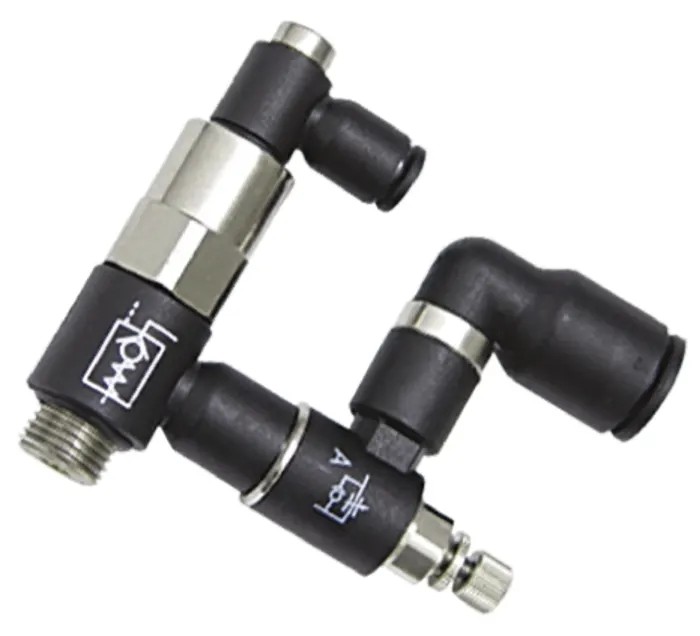

Legris Pneumatic Solenoid Valve Pilot G 1/4 in 7894 Series Nitrile Rubber Seal 10 bar Max Pressure 7894 06 13
Specifications
| Country of Origin | India |
|---|---|
| Brand | Legris |
| Body Material | Polymer, Nickel Plated Brass |
| Maximum Operating Pressure | 10 bar |
| Series | 7894 |
| Maximum Operating Temperature | 60°C |
| Thread Size | 1/4 in |
| Port Size | 1/4 in |
| Seal Material | Nitrile Rubber (NBR) |
| Minimum Operating Temperature | -5°C |
| Actuation Type | Pilot |
| Connection Thread Standard | G |
| Minimum Pilot Pressure | 1bar |
| Valve Function | Non-Return, Flow Control, Manual Exhaust |
Key Features
- This valve features a 1/4 inch port size with G standard connection threads.
- It operates with pilot actuation, providing precise control.
- The seal material is made from durable nitrile rubber (NBR) ensuring leak-free performance.
- Maximum operating pressure is rated at 10 bar, suitable for various pneumatic systems.
- Construction uses polymer and nickel plated brass for enhanced corrosion resistance.
- The valve functions include non-return, flow control, and manual exhaust capabilities.
- Operating temperature range spans from -5°C to 60°C for diverse environments.
- Minimum pilot pressure required is 1 bar for activation.
Product Description
Legris 7894 06 13 Pneumatic Solenoid Valve is designed for robust industrial pneumatic control at a maximum operating pressure of 10 bar. This pilot actuated valve has a 1/4 inch port and G connection thread standard, making it compatible with a variety of pneumatic systems.
The valve seal is constructed from nitrile rubber (NBR) which provides reliable sealing performance and resistance to wear. The body is made from polymer combined with nickel plated brass, ensuring durability and corrosion resistance in demanding environments.
With an operating temperature range from -5°C to 60°C, this valve supports a wide range of industrial, automotive, and food processing applications. It integrates multiple functional features such as non-return, flow control, and manual exhaust, offering versatile fluid power management capabilities.
The ports on this valve can be configured in any position to accommodate various pneumatic configurations, enhancing flexibility in installation. The valve also complies with the European machinery directive 2006/42/EC, promoting safer pneumatic installations.
This valve features a 1/4 inch port size with G standard connection threads. Operated by pilot actuation for precise control. Seal material is nitrile rubber (NBR) for reliable sealing. Maximum operating pressure of 10 bar.
Body constructed of polymer and nickel plated brass. Valve functions include non-return, flow control, and manual exhaust. Minimum pilot pressure of 1 bar required. Operating temperature range from -5°C to 60°C. Configurable port positions to suit pneumatic configurations.
Conforms to machinery directive 2006/42/EC for safety compliance.
This Pneumatic Solenoid Valve is ideal for industrial, automotive, food processing, and manufacturing uses where safe and precise pneumatic control is critical. The flexible port design and multiple valve functions make it suitable for a broad range of fluid power applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this valve is rated at 10 bar.
The body of this valve is constructed from polymer and nickel plated brass, while the seal material is nitrile rubber (NBR).
The operating temperature range for this pneumatic solenoid valve spans from -5°C to 60°C.
This model uses pilot actuation for precise control.
The valve functions include non-return, flow control, and manual exhaust capabilities.
A minimum pilot pressure of 1 bar is required for activation of this valve.
The valve features a 1/4 inch port size with G standard connection threads.
This valve is suitable for industrial, automotive, food processing, and manufacturing applications where pneumatic control is essential.
Yes, the ports on this valve can be configured in any position to accommodate various pneumatic configurations.
This pneumatic solenoid valve is manufactured in India.
This valve complies with the European machinery directive 2006/42/EC, promoting safer pneumatic installations.
Specific dimensions and weight details are not provided in the available information.
